I3 4025U Capacitive Touch Rugged Panel PC With GPIO

Place of Origin Shenzhen,China
Brand Name INNODA
Certification CE,RoHS, FCC
Model Number IND080PC
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight: 4kgs/pc, packing size: 44×37×17cm
Delivery Time 12working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 5000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Rugged Panel Pc Touchscreen Capacitive Touch Screen
Resolution 1024*768 CPU Intel Core I3-4025U/1.6 GHz
Wide Voltage 8-36V Wide Voltage GPIO Built-in
WIFI Built-in Material Aluminum Alloy+Metal
High Light

Capacitive touch Rugged Panel PC

,

I3 4025U Rugged Panel PC

,

Rugged Panel PC With GPIO

Leave a Message
Product Description

WIFI Integrated Intel Core I3-4025U CPU 8-inch Touch Rugged Panel Pc With 4xRJ45 / GPIO / 24V Voltage

Features

1. 8inch Rugged Panel pc With multi-touch capacitive touchscreen,cover with 2mm tempered glass for vandalproof

2. Industrial grade lcd panel

3. High performance motherboard, 7x24 continuous operation
4. Built-in 36V Wide Range Voltage , WIFI

5. GPIO built-in

6. Rich interface for your needs: 4*RJ45



Processor System CPU Intel Core I3-4025U/1.6 GHz I/O Port COM 1 x RS232(RS485/RS422)
Memory 2GB (up to 8G) USB 3 x USB2.0, 1xUSB3.0
Storage 32G SSD(up to 1TB) LAN 4 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) VGA 1 x VGA
LCD Panel Characteristics Screen Size 8’’ LED Panel,4:3 (7-22'' option) Function Wide voltage 8-36V wide range voltage
Touchscreen Type Capacitive touch screen/Resistive / IR /SAW WIFI
Resolution 1024(H)x768(V) GPIO
Brightness 350cd/m2 Optional 1000nits high brigthness for sunlight
Other Information Power supply 110V-240V, 12V DC Input   IP65 / IP66 /IP67 Waterproof
Working Temperature 0-60℃ Mounting 75*75/100*100mm VESA / Embedded
Cooling System Fanless or with Fan  Enclosure Metal/Aluminum/Stainless Steel (optional)



Detailed Image

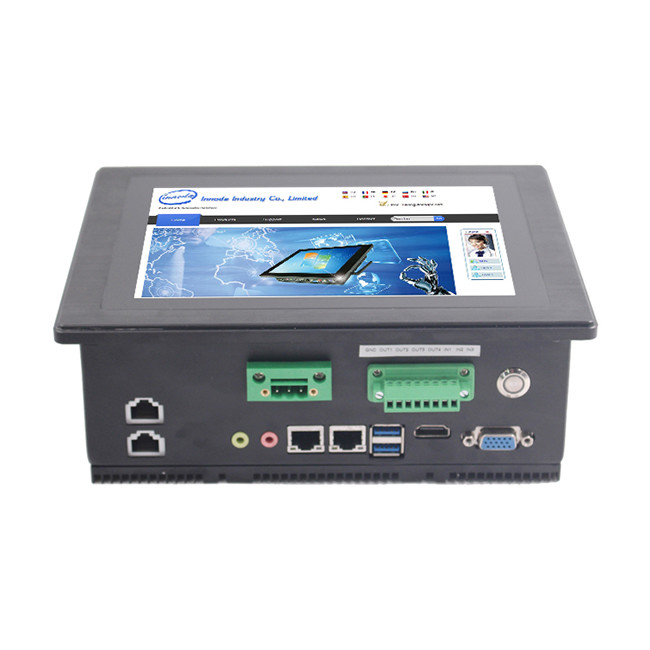

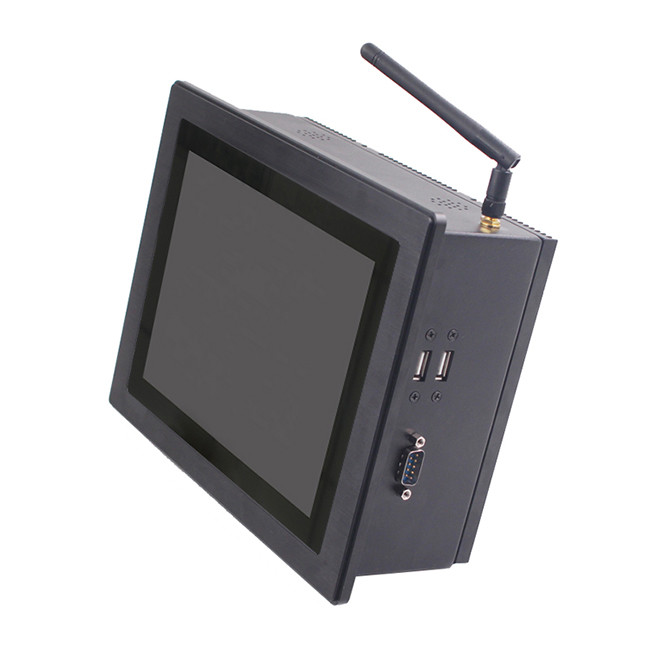

I3 4025U Capacitive Touch Rugged Panel PC With GPIO 0I3 4025U Capacitive Touch Rugged Panel PC With GPIO 1

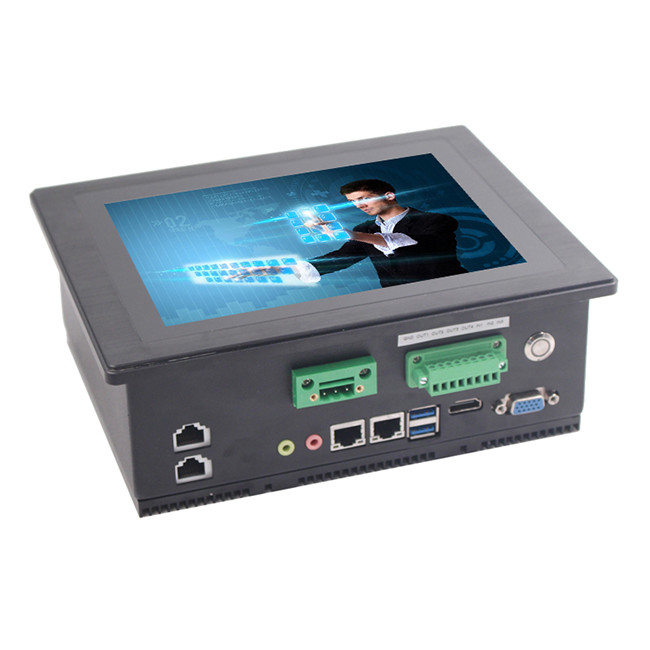

I3 4025U Capacitive Touch Rugged Panel PC With GPIO 2



    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.8inch touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
