Aluminum 3mm Front Bezel I7 Panel Pc Embedded Mount

Place of Origin Shenzhen,China
Brand Name INNODA
Certification CE,RoHS, FCC
Model Number IND150PC
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight: 4kgs/pc, packing size: 42×36×15cm
Delivery Time 12working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 5000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Front Ip65 Embedded Waterproof Panel Pc Aspect Ratio 4:3
CPU Intel Core I7-4025U/2.0 GHz Warranty 12 Months
Material Aluminum CLient's Logo Acceptable
Color Black / White / Slivery...etc Mounting Embedded Mount
High Light

3mm Front Bezel I7 Panel Pc

,

Embedded Mount I7 Panel Pc

,

3mm Front Bezel Embedded Panel Pc

Leave a Message
Product Description

Embedded Mount Front Ip65 Waterproof Panel Pc With Intel I7


Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered

glass for vandalproof.
5. High performance motherboard, 7x24 continuous operation.
6. Ultra-thin front bezel 3mm, ideal for embedded mounting.



Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19"....42'' LCD panel
3)  Capacitive touch, IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB

6) client's logo acceptable

7) Variety functions eg sunlight readable, GPIO, 24V wide voltage, AG/AR glass...etc


Configuration

Processor System CPU Intel core I7-4025U/1.8GHz
Memory 4GB-8GB optional
Storage 64G SSD(up to 1TB)
Operation System WIndows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 15 inch  Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option / Ir touch
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 2XRS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
HDMI 1xHDMI
VGA 1xVGA
Function Front IP65
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum profile+Metal frame
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC


Detailed Image

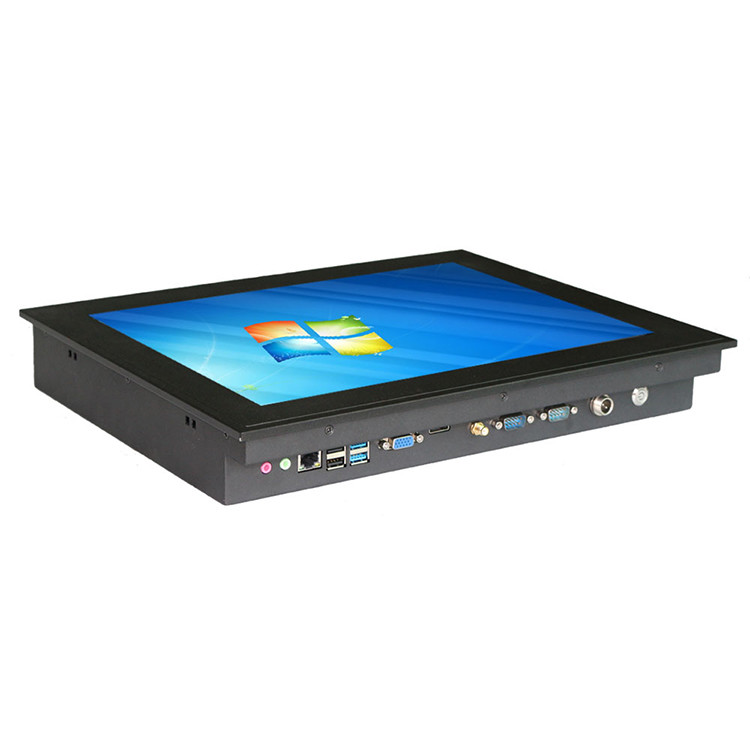

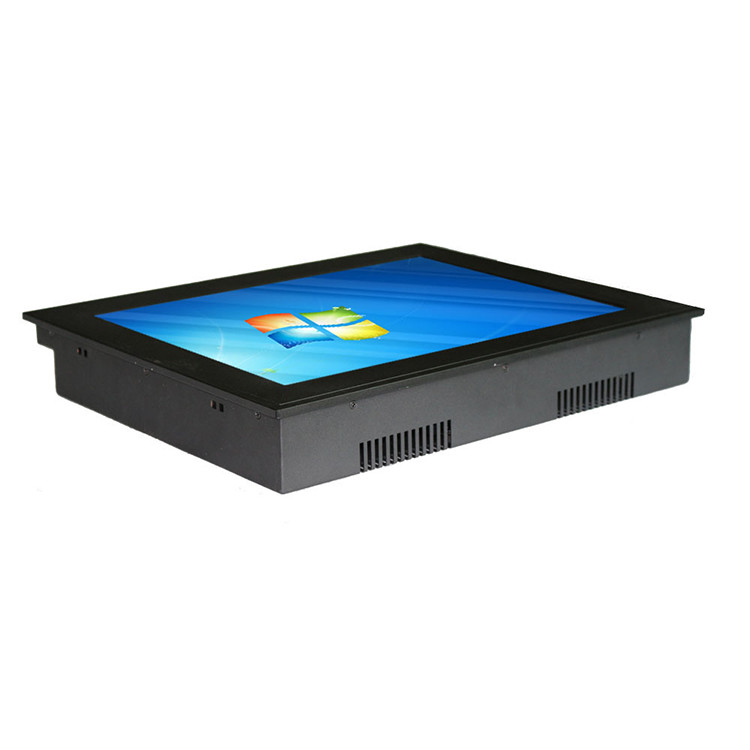

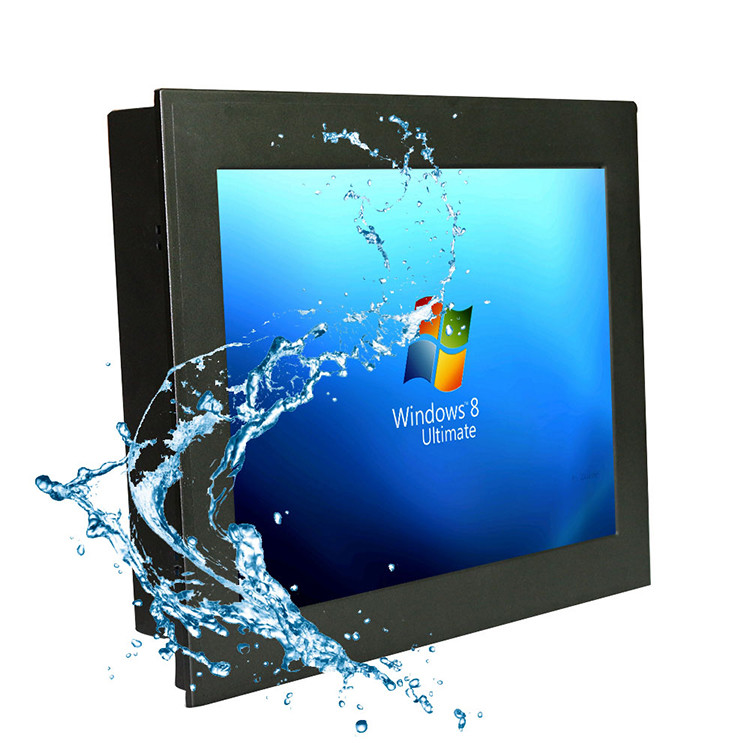

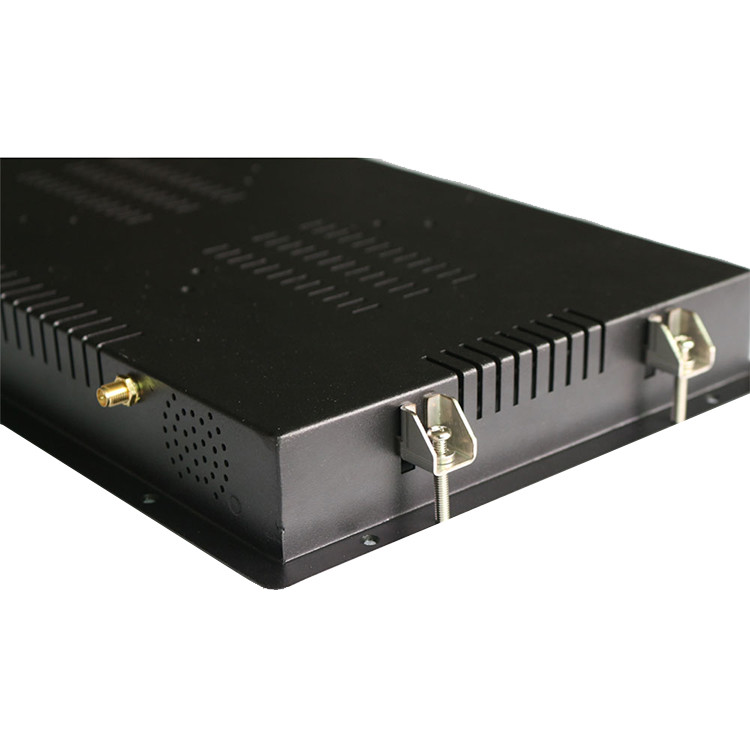

Aluminum 3mm Front Bezel I7 Panel Pc Embedded Mount 0Aluminum 3mm Front Bezel I7 Panel Pc Embedded Mount 1

Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend

economicaly way for your reference

Aluminum 3mm Front Bezel I7 Panel Pc Embedded Mount 2
