12inch Industrial Panel Mount Monitor Front Aluminum

Place of Origin Shenzhen,China
Brand Name INNODA
Certification CE,RoHS, FCC
Model Number IND121M
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight: 3kgs/pc, packing size: 41×15×35.5cm
Delivery Time 7working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 8000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 12inch Industrial Panel Mount Monitor Brightness 250nits
Resolution 1024*768 Touch Com Port For Touch Use
Wide Voltage 24V Voltage Color As You Like
Warranty 12 Months Material Metal
High Light

Front Aluminum Industrial Panel Mount Monitor

,

12inch Industrial Panel Mount Monitor

,

Aluminum 12 inch touch screen monitor

Leave a Message
Product Description

Front Aluminum 12inch Industrial Panel Mount Monitor Resistive Touchscreen

Features

- 12″ Industrial Grade
- Touch Screen Standard (Capacitive or Resistive or Tempered glass)
- 250 Nits of Brightness
- VGA,DVI-I, HDMI inputs
- CE, FCC. RoHS Compliance

- Embeded industrial panel mount monitor

- 24V wide voltage built-in

- COm port for touch use



Configurations

LCD Panel Characteristics Screen Size 12-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

COM 1x COM for touch use
HDMI Yes
VGA yes
DVI Yes
Function 24V wide voltage
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

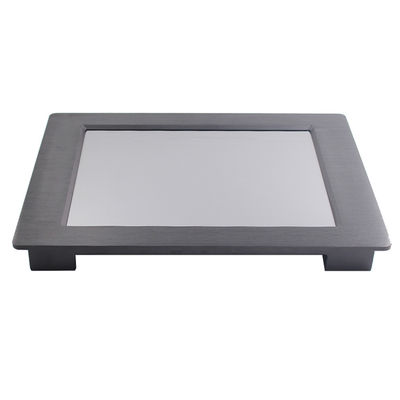

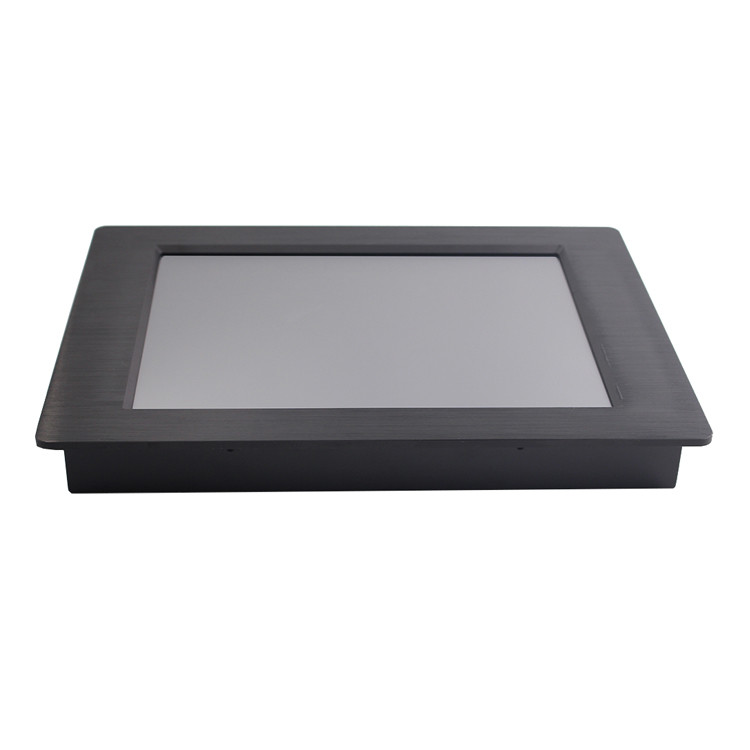

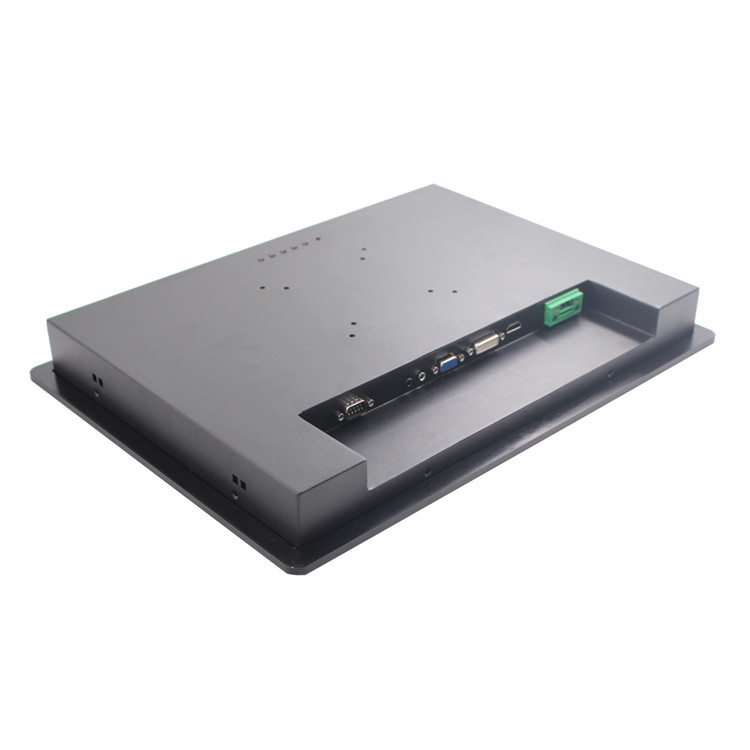

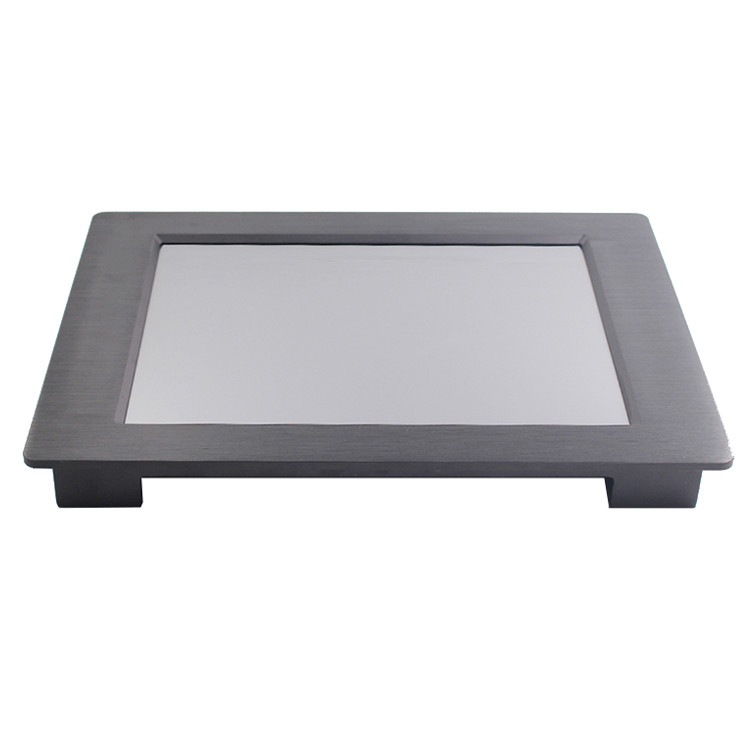

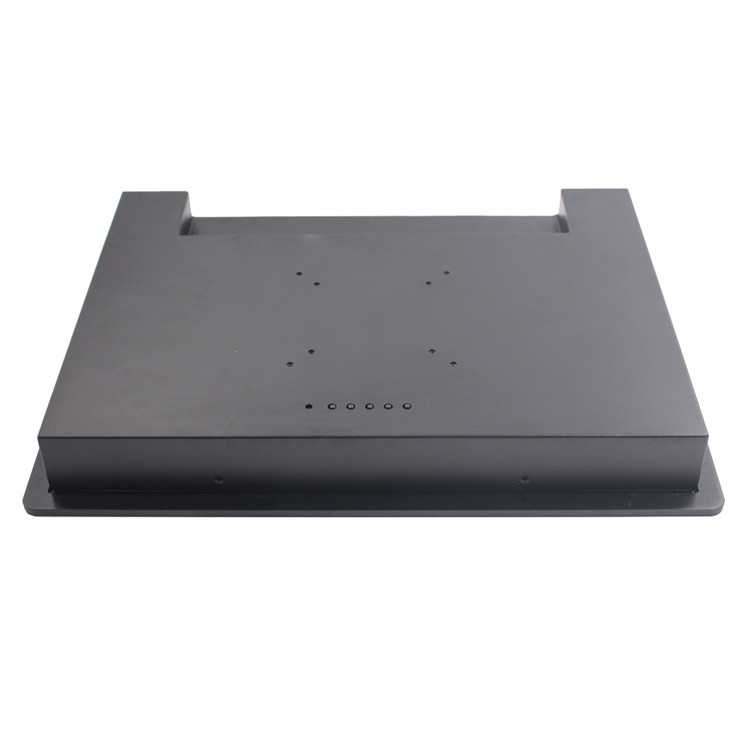

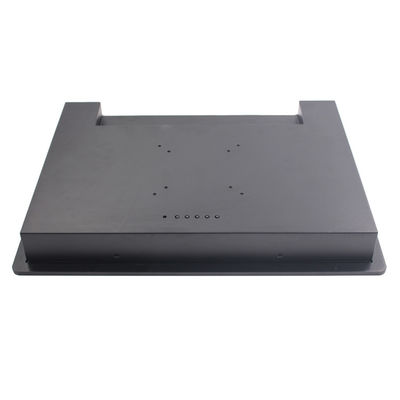

Detailed Image

12inch Industrial Panel Mount Monitor Front Aluminum 012inch Industrial Panel Mount Monitor Front Aluminum 1

12inch Industrial Panel Mount Monitor Front Aluminum 2

Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference



12inch Industrial Panel Mount Monitor Front Aluminum 3

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
