| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND070APC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 2.5kgs/pc, packing size: 27×22×6.6cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Type: | Android Touch Panel Pc | CPU: | Rockchip RK3288 |
|---|---|---|---|
| Resolution: | 1024*600 | Aspect Ratio: | 16:9 |
| 24V Wide Voltage: | Built-in | System: | Android 6.0 / 7.0 / 8.0 OS |
| Working Temperature: | -20-70C | Material: | Aluminum+Metal |
| High Light: | 10 Msec Android 8 Tablet,PoE Android 8 Tablet |
||
Android System 8.0 Touch Panel Pc With 24V Wide Voltage Air head Socket
Features
-- 7inch android touch panel pc
-- 10points PCAP sensistive touch screen
-- 500nits lcd panel with true color
-- 24V voltage for wide power
-- Air head power socket
Configuration
| Processor System | CPU | RK3288 | |
| Memory | 2GB/4GB | ||
| Storage | 16G EMMC(8G/16G/32G optional) | ||
| Operation System | Android | ||
| LCD Panel Characteristics | Screen Size | 7’’ LcD Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x600(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 500nits | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | PoE | it support 802.3af and 802.3at.(Optional) | |
| USB | 2xUSB2.0 | ||
| LAN | RJ45 as PoE power supply | ||
| HDMI | ------ | ||
| Function | 8-36V wide voltage | ||
| Optional | WIFI | ||
| 4G modem | |||
| AG/ AR glass | |||
| waterproof | |||
| Brightness control button | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+metal | |
| Color | Black/Silver/White | ||
| Mounting | Wall mount/ Panel mount | ||

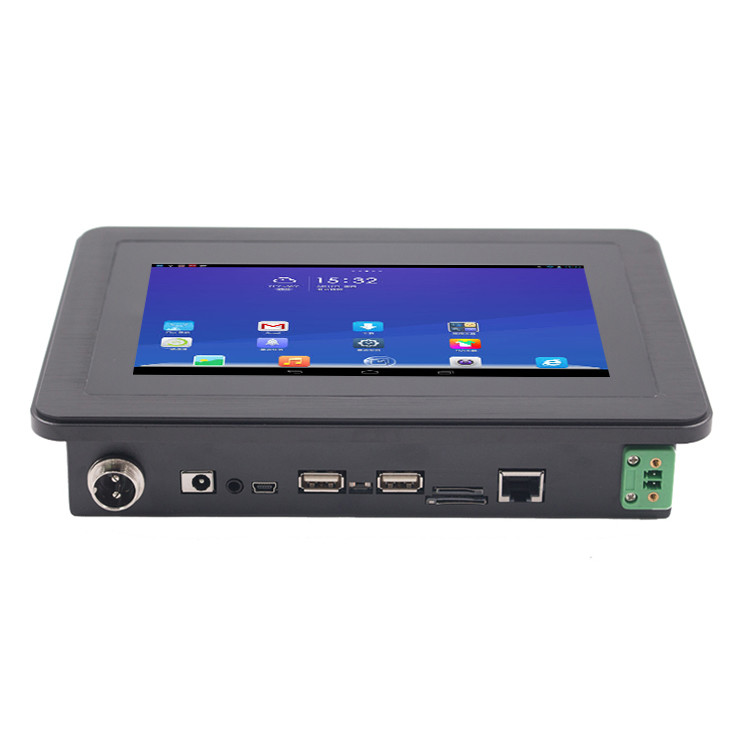

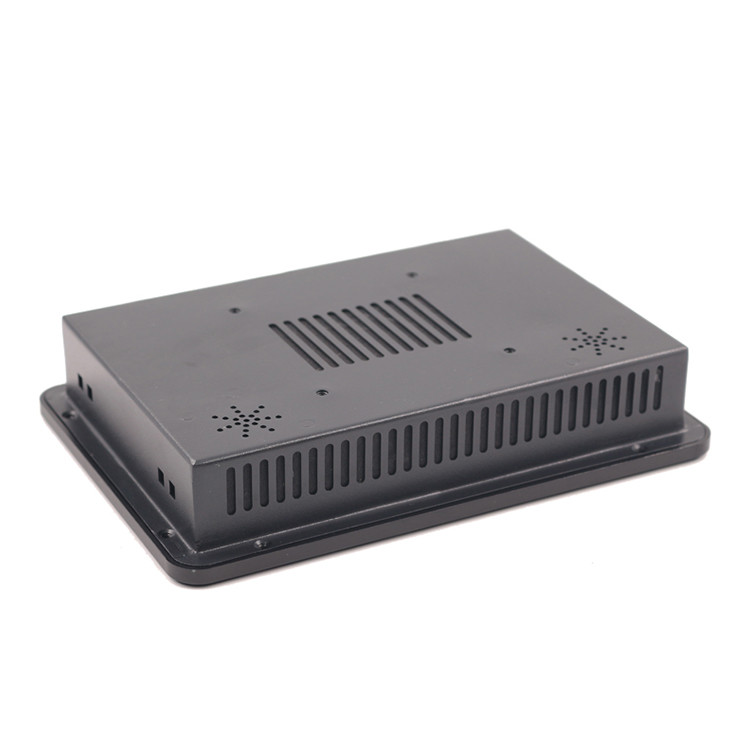

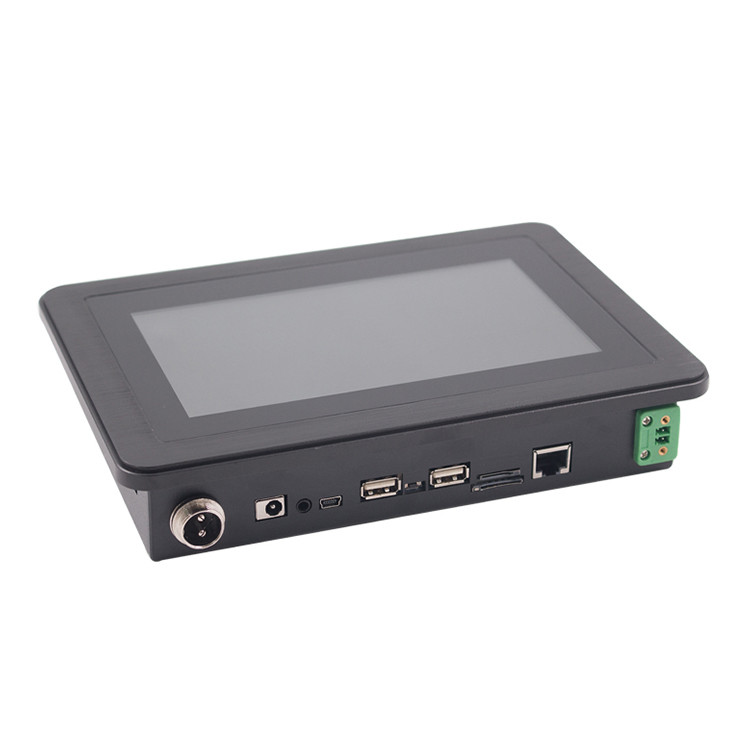

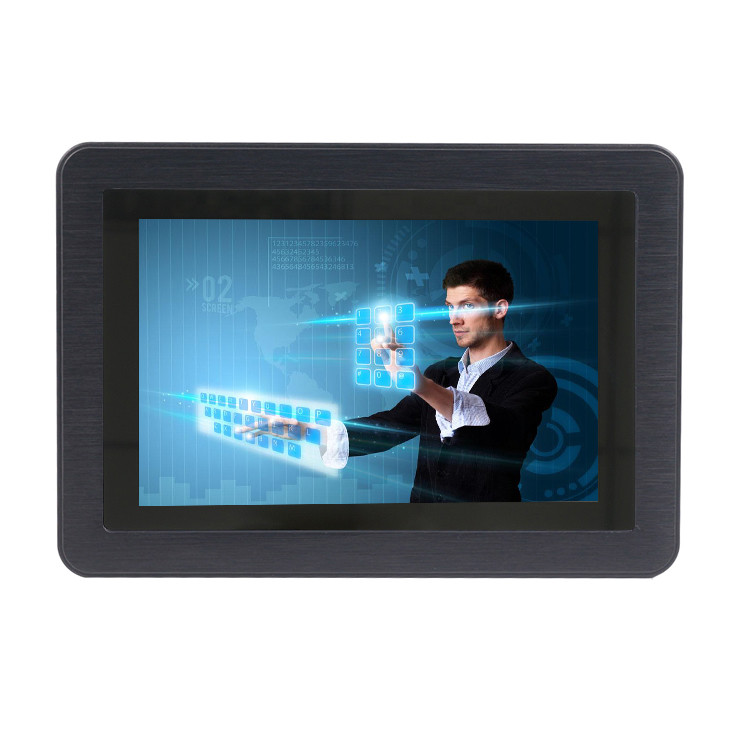

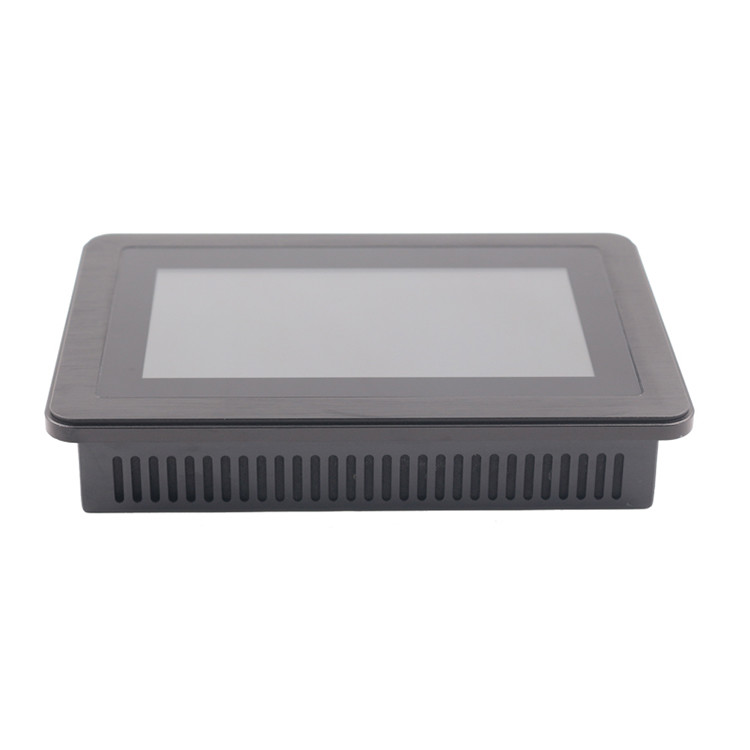

Detailed Image
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
