3mm Thin PCAP Embedded Touch Panel PC Aluminum Bezel

Place of Origin Shenzhen,China
Brand Name INNODA
Certification CE,RoHS, FCC
Model Number IND170PC
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight: 4.5kgs/pc, packing size: 50×44×15cm
Delivery Time 12working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 5000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 17-inch Embedded Touch Panel Pc Resolution 1280*1024
Touchscreen PCAP Touchscreen CPU Intel Quad-core J1900 /I3 / I5 / I7
Color Black / White / Slivery...etc Warranty 12 Months
Os Support Windows 7/8/10 Material Metal
High Light

PCAP Embedded Touch Panel PC

,

Aluminum bezel Embedded Touch Panel PC

,

3mm Bezel Embedded Touch Panel PC

Leave a Message
Product Description

3mm Thin Aluminum Bezel Embedded Touch Panel Pc With Quad-Core Intel J1900​


Features
1. Aluminum bezel Embedded Touch Panel Pc

2. 10points capacitive touchscreen / resistive touch / IR touch for choose

3. Quad-core Intel J1900 / Intel I3 / I5 / I7 processor

4. Low power consumption

5. High environmental performance and reliability

6. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.



Configuration

Processor System CPU Intel Quad-core J1900/2.0GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 17’’ Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1280(H)x1024(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1*RS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 1xRJ45, 10/100/1000 Mbps
HDMI 1xHDMI
VGA 1xVGA
Function Touch
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum+Metal frame
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC

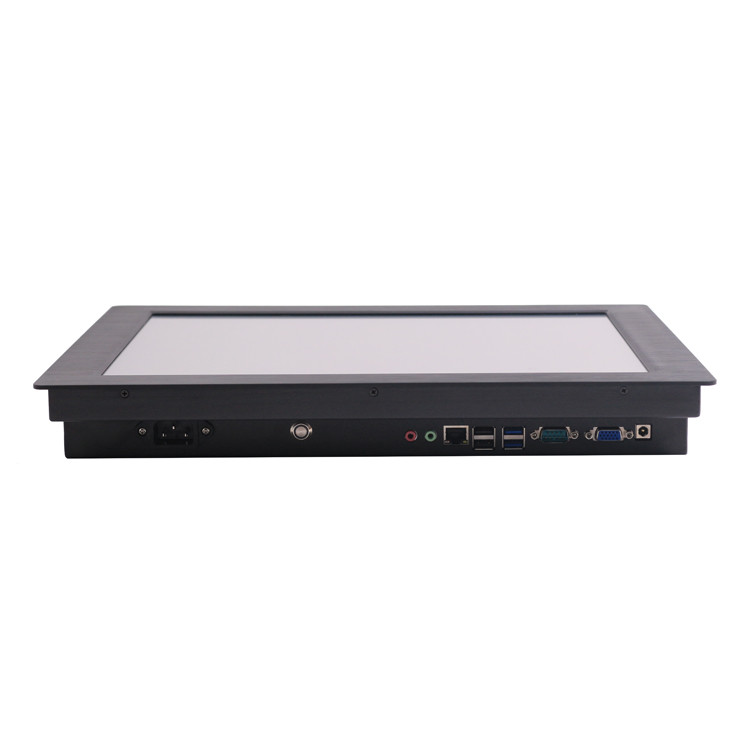

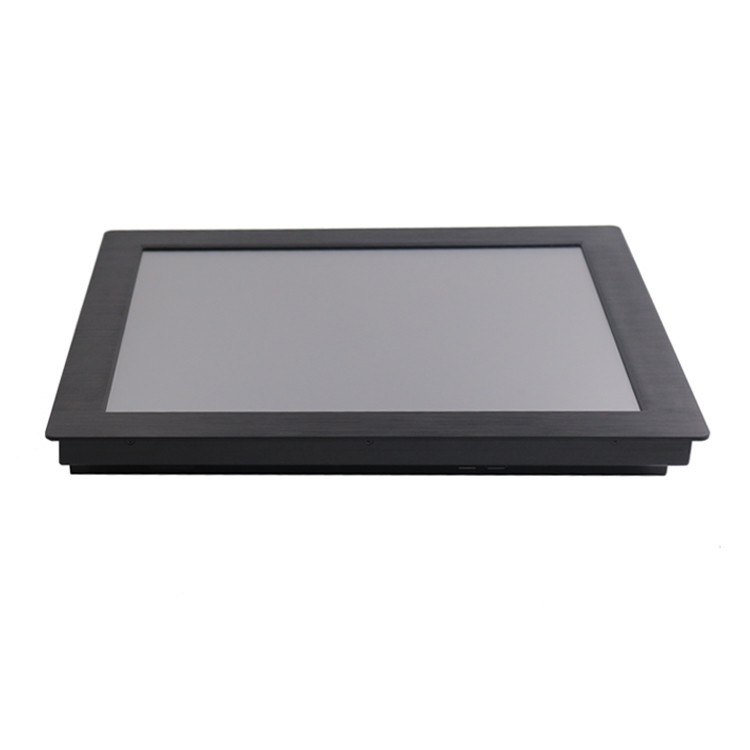

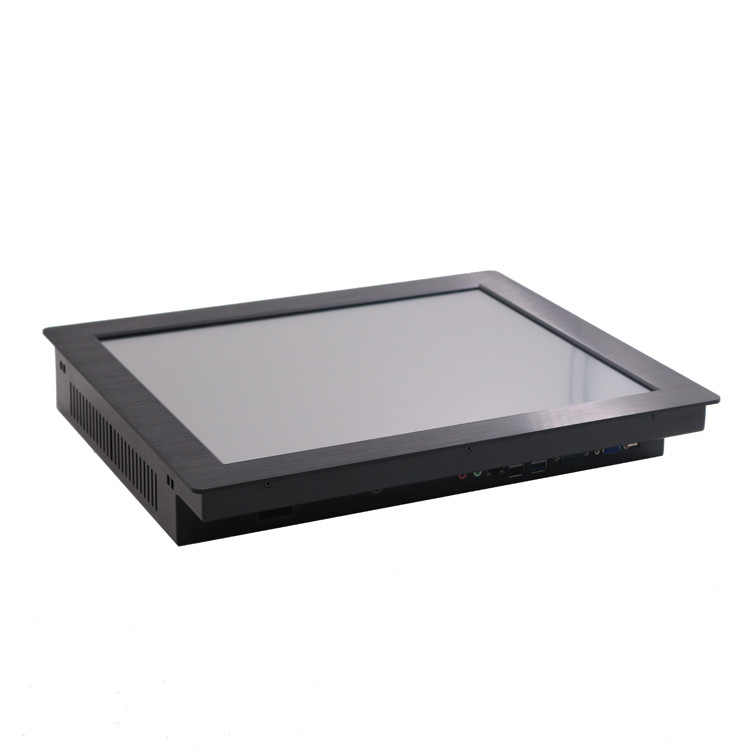

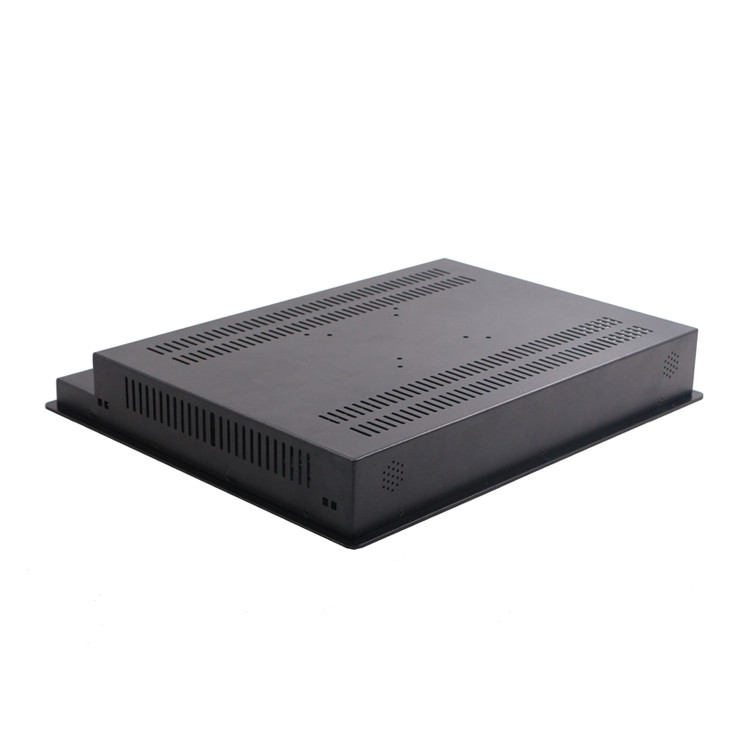

Detailed Image
3mm Thin PCAP Embedded Touch Panel PC Aluminum Bezel 03mm Thin PCAP Embedded Touch Panel PC Aluminum Bezel 1

Industrial PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument



Our Advantage
1. Experience

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least

13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,

sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

5. No MOQ limited

We can provide sample first to test it for the big project.

3mm Thin PCAP Embedded Touch Panel PC Aluminum Bezel 2
