| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND156PC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 5.5kgs/pc, packing size: 50×14×44cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
| Type: | 15.6'' Industrial Touch Panel Pc With NFC | Resolution: | 1920*1080 |
|---|---|---|---|
| Aspect: | 16:9 | Touchscreen: | PCAP Touch Screen |
| CPU: | Intel Quad-core J1900 | Interface: | 4*COm, 2*LAN, USB |
| Working Temperature: | -20-70C | Material: | Metal |
| High Light: | 1920*1080 Industrial Touch Pc,NFC Touch Panel Computer,NFC Industrial Touch Pc |
||
15.6'' Windows Os Metal Industrial Touch Panel Pc With NFC And Mic
Features
1. 15.6'' lcd 1920*1080 resolution
2. Industrial LCD panel, wide viewing angle, 85°/85°/85°/85° (R/L/U/D),high nits, true color.
3. Adopt 4 wire resistive touch screen, high precision, durable, anti-interference.
4. NFC card reader and mic built-in
5. Material: Metal
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | Windows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 15.6’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1920(H)x1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 1*RS232(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| HDMI | yes | ||
| VGA | 1xVGA | ||
| Function | WIFI | ||
| NFC reader | |||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

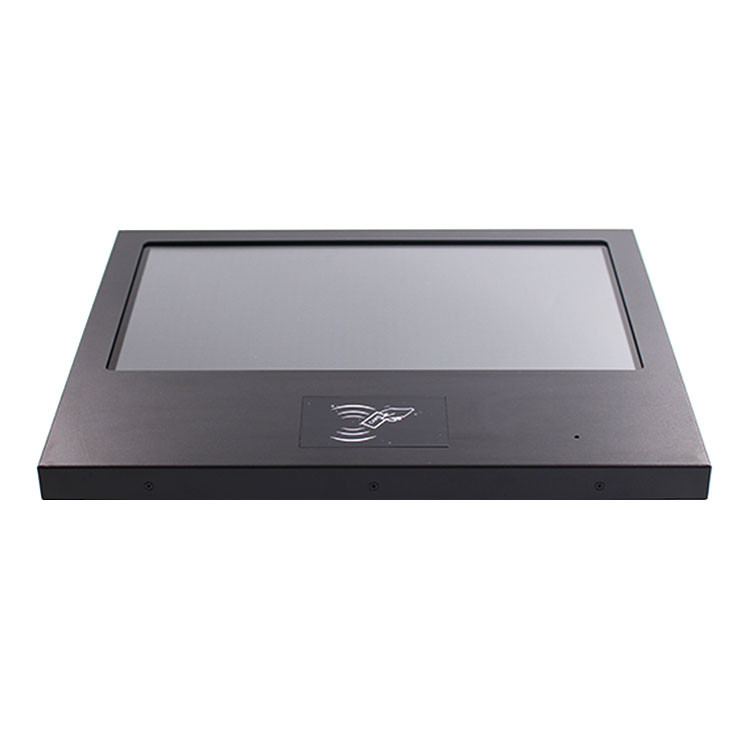

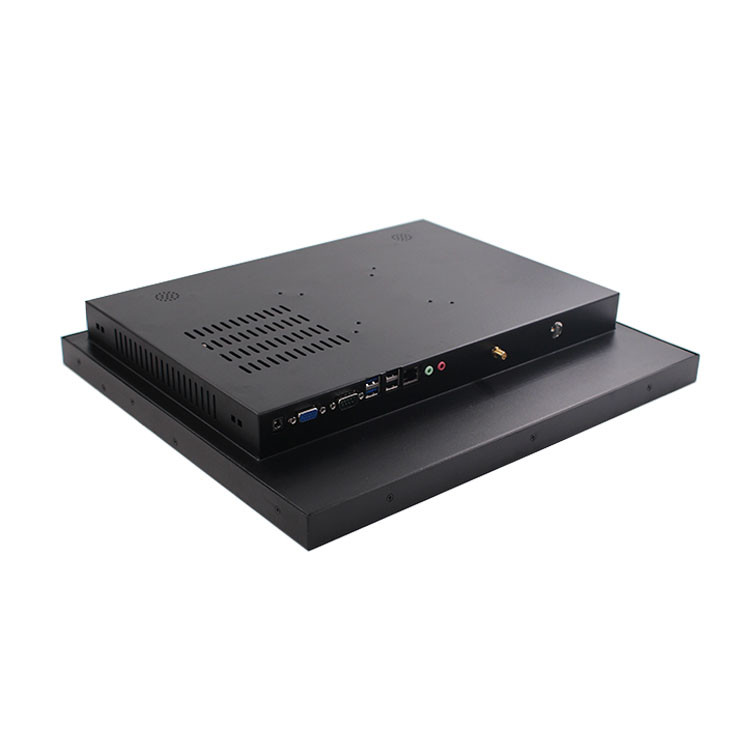

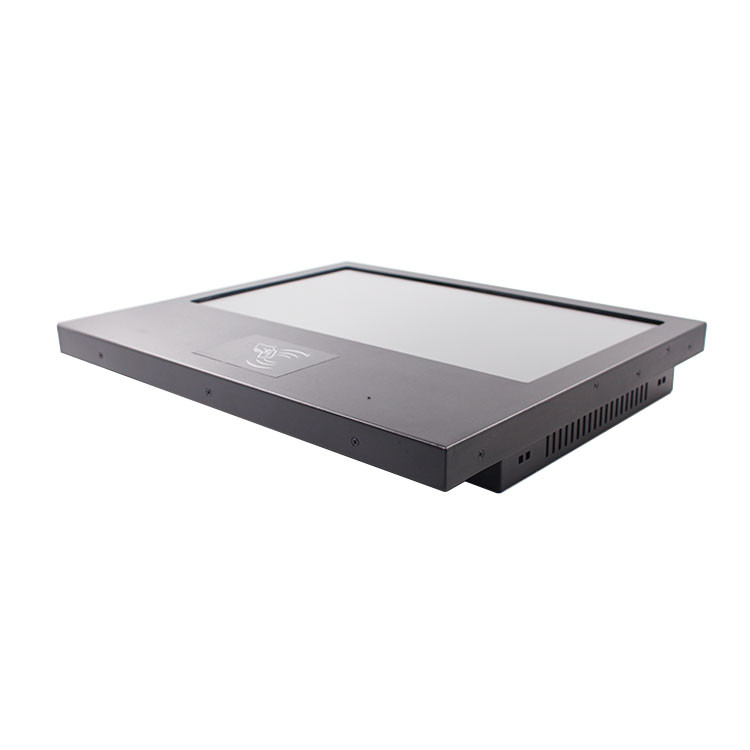

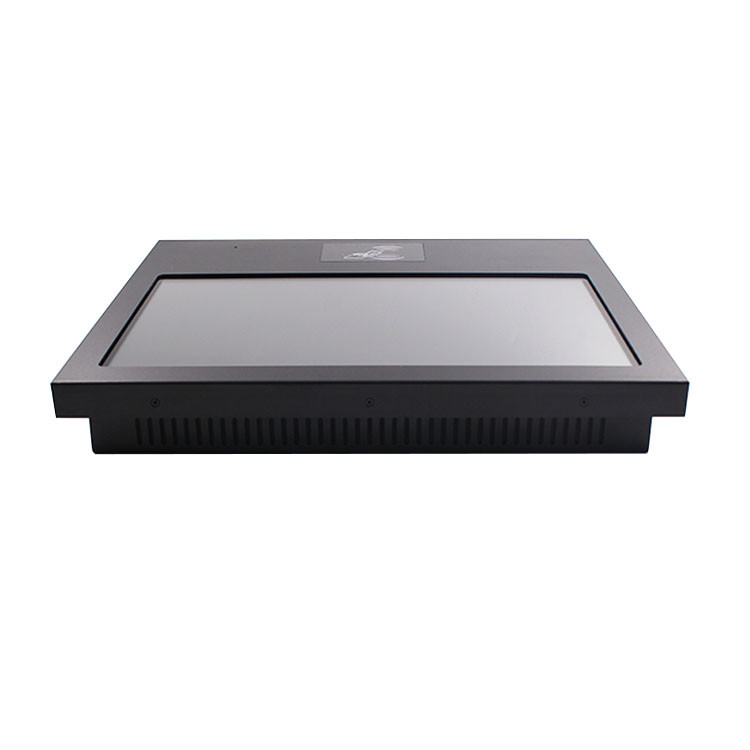

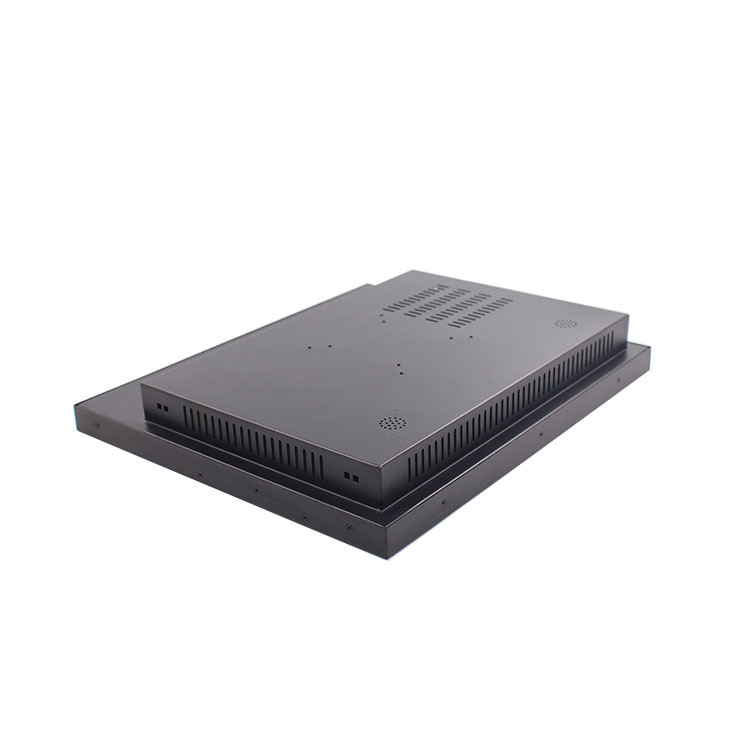

Detailed Image
Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least
13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
5. No MOQ limited
We can provide sample first to test it for the big project.
Any interested, welcome to ask for more information
