Alulinum Alloy Open Frame LCD Monitor

Place of Origin Shenzhen,China
Brand Name INNODA
Certification CE,RoHS, FCC
Model Number IND150M
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight:4.5kgs/pc, packing size: 41.5×15× 35.5cm
Delivery Time 7working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 8000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 15'' Open Frame Monitor Brightness 250nits
Aspect Ratio 4:3 Touch Screen Capacitive Touch Screen
Color Black / White / Slivery...etc System Support Widnows/Android/ Linux
Material Metal Warranty 1 Year
High Light

Alulinum Alloy Open Frame LCD Monitor

,

INNODA Open Frame LCD Monitor

Leave a Message
Product Description

1024x768 Open Frame Touch Screen Monitor 15 Inch Capacitive DC 12V

Features

- Alulinum alloy frame with shockproof
- Super thin and ultra narrow bezel, durable for harsh environment

- Adopt multi-points IR touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof

- DVI, VGA, HDMI, USB port



Configuration

LCD Panel Characteristics Screen Size 15’’ LCD Panel
Touchscreen Type PCAP touch screen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB  1*USB for touch use
HDMI 1XHDMI
VGA -----
DVI Yes
Function Open frame design
Mounting type VESA
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Detailed Image

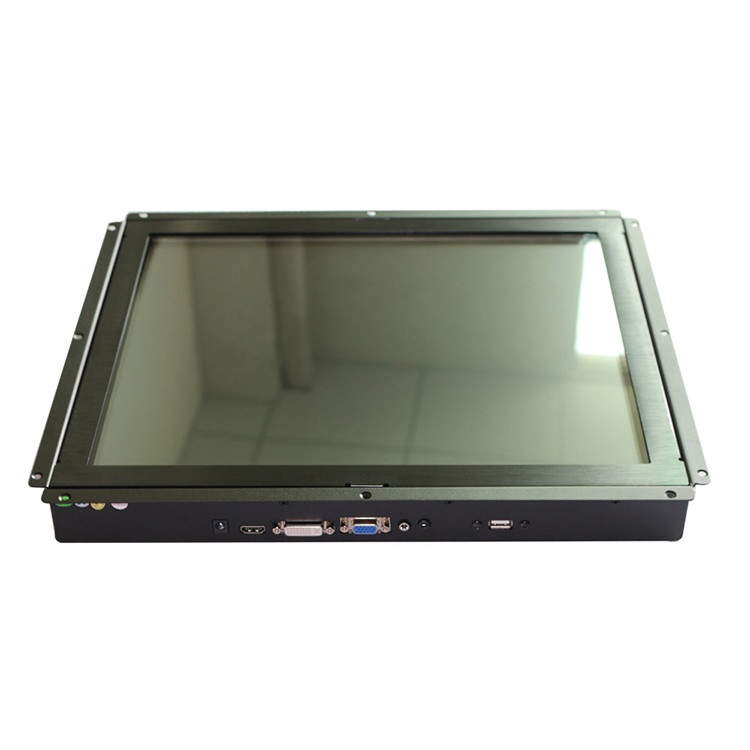

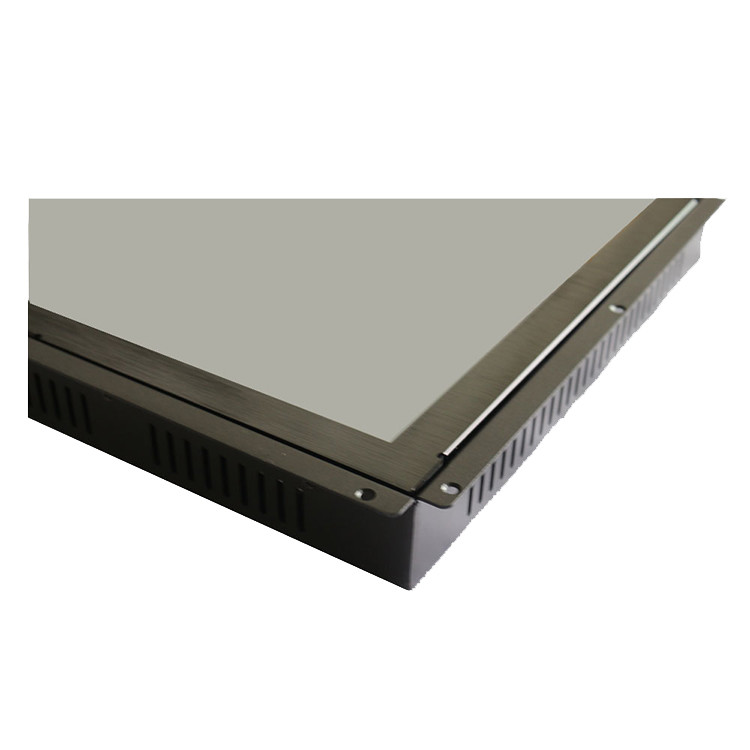

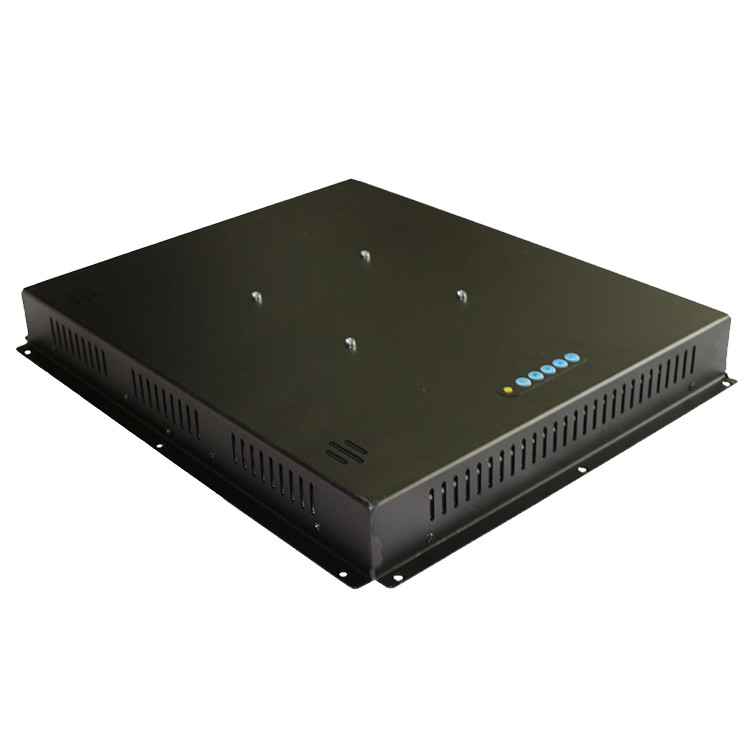

Alulinum Alloy Open Frame LCD Monitor 0Alulinum Alloy Open Frame LCD Monitor 1

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness

8-36V wide working voltage

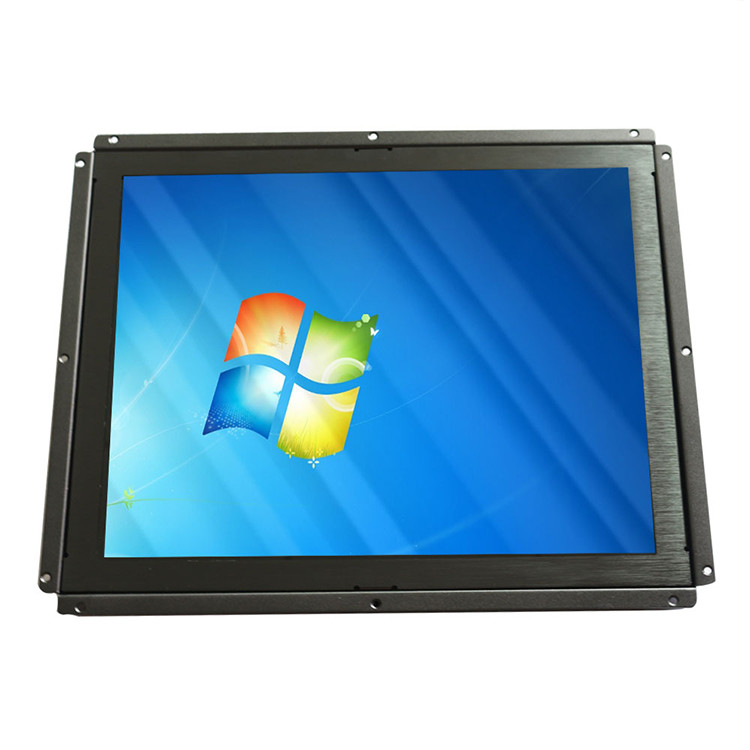

Alulinum Alloy Open Frame LCD Monitor 2



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

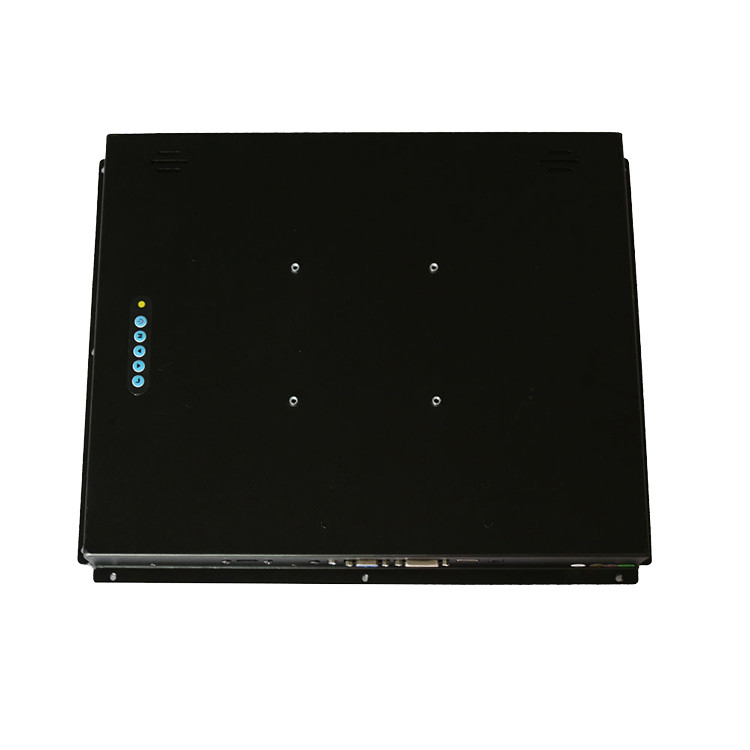

Alulinum Alloy Open Frame LCD Monitor 3



Welcome to ask for more information
