1024x600 RGB TFT Capacitive Touch Panel PC 7.0 Inch 500nits

Place of Origin Taiwan,China
Brand Name Innolux
Certification RoHS
Model Number NJ070NA
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 50pcs in one Carton
Delivery Time 12working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 5000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 7inch Lcd Panel Module Touchscreen 10points Capacitive Touchscreen
Pixels 1024*600 Luminance 500 Cd/m2
Aspect Ratio 16:9 Contrast 800:1 (Typ.)
Active Area 154.214(H)x85.92(V) Signal Interface LVDS
High Light

TFT Capacitive Touch Panel PC

,

1024x600 Capacitive Touch Panel PC

,

500nits Industrial Panel Mount Pc

Leave a Message
Product Description



 INNODA can provide new brand INNOLUX 7'' TFT LCD Panel Module NJ070NA-23A, 1024*600 resolution, LED backlight and LVDS signal interface. -20-70C wide working temperature and with RoHS compliance. 10points capacitive touchscreen covered with 2MM tempered glass



Features

1. Original Brand New lcd Panel module



2. 10points capacitive touchscreen



3. Original technology support



4. Industrial Wide working temperature -20-70C



5. LED driver integrated



6. RoHS compliance



7. 12months warranty



Configuration

Module number NJ070NA
Screen Diagonal 7inch
Touchscreen 10points capacitive touchscreen
Pixels H x V 1024(RGB) X 600
Aspect Ratio 16:9
White luminance 500 cd/m2
Contrast 800:1
Pixel pitch 0.1506×0.1432 (H×V) [170PPI]
Active Area 154.214(H) × 85.92(V)
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally white
Response time 15ms
Input Voltage 3.3V
Outline Dimension 164.9(H) × 100(V) x 4.8mm
Electrical Interface(Logic) LVDS
Support color 262K/16.7M (6-bit / 8-bit)
Surface treatment Hard coating
Operation life 30,000(Min.) Hrs
RoHs RoHS compliance


Detailed Image

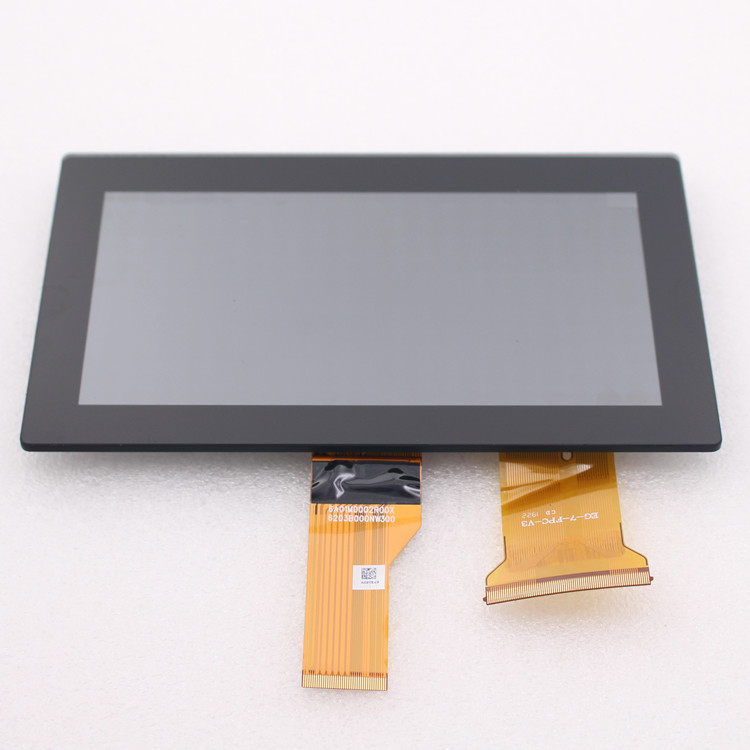

1024x600 RGB TFT Capacitive Touch Panel PC 7.0 Inch 500nits 0



Application

Industrial computer / monitor / AIO pc / commerical pc

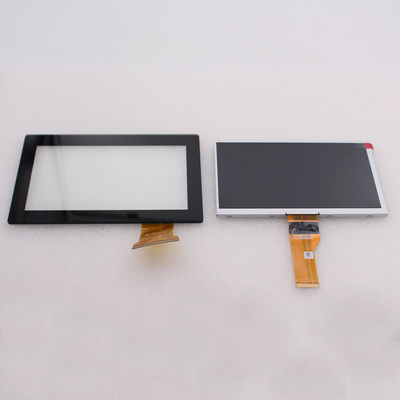

1024x600 RGB TFT Capacitive Touch Panel PC 7.0 Inch 500nits 1
