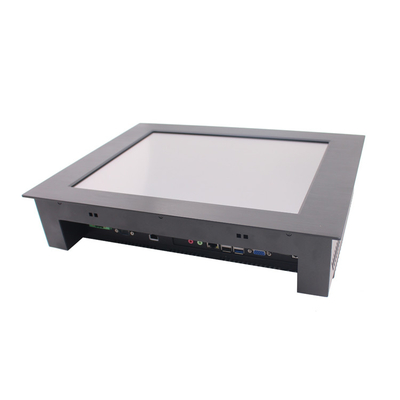

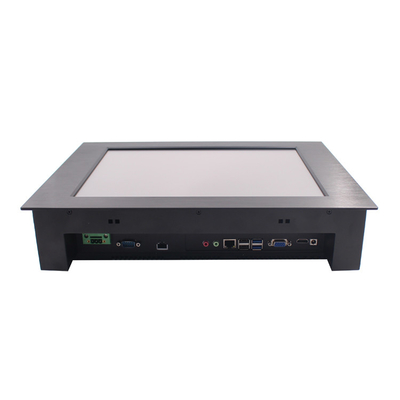

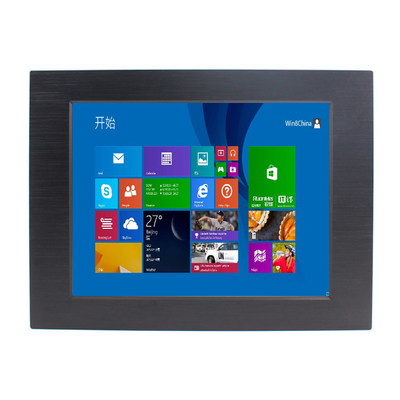

Intel I5 CPU 9-36V Voltage Rugged Panel Pc Front IP65 All In One Computer
Features
- Panel Mount LCD 15″ Industrial Grade
- Touch Screen Standard (Capacitive or Resistive or Tempered glass)
- NEMA 4/IP65 Environmentally Sealed for Front Panel Only
- Intel I5 processor
- USB, 2*RJ45, COM, VGA,HDMI inputs
- 9-36V wide voltage
- 1 Year Warranty
Configuration
| INNODAPC Processor System | CPU | Intel core i5-4210U | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 15’’ LED Panel | |
| Touchscreen Type | Resistive touch screen | ||
| Resolution | 1024(H)x 768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2 x COM | |
| USB | 4xUSB2.0 | ||
| LAN | 2xRJ45, 10/100/1000 Mbps | ||
| VGA | Yes | ||
| Function(Optioanal) | Front IP65 | ||
| 9-36V wide voltage | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Customization
1. Available cpu
Intel J1900 / J3160 / I3/ I5 / I7
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. WIFI built-in
4. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
5. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
