24VDC Rugged Touch Screen Monitor IP65 18W 350nits Vesa Embedded

Place of Origin Shenzhen,China
Brand Name INNODAPC
Certification CE,RoHS, FCC
Model Number IND080M
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight: 3.5kgs/pc, packing size: 41.5×35.5×15cm
Delivery Time 7working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 8000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Touch Screen Monitor Resolution 1024*768
Touchscreen Resistive Touch Brightness 350nits
Ratio Aspect 4:3 I/O VGA, HDMI,DVi, USB For Touch Use
System Support Widnows/Android/ Linux Material Aluminum Metal Case
High Light

24VDC Rugged Touch Screen Monitor

,

18W Rugged Touch Screen Monitor

,

Vesa Embedded Panel Mount Monitor

Leave a Message
Product Description

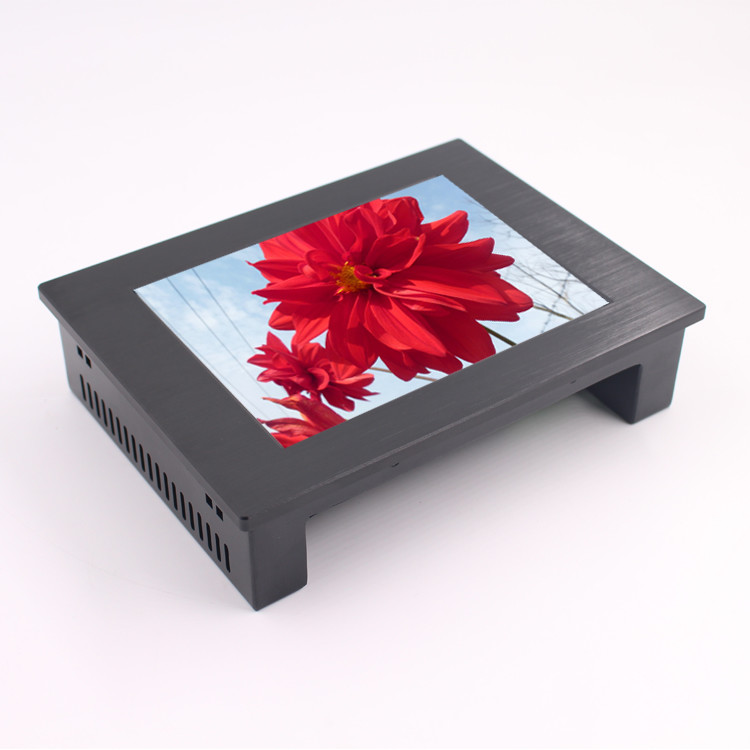

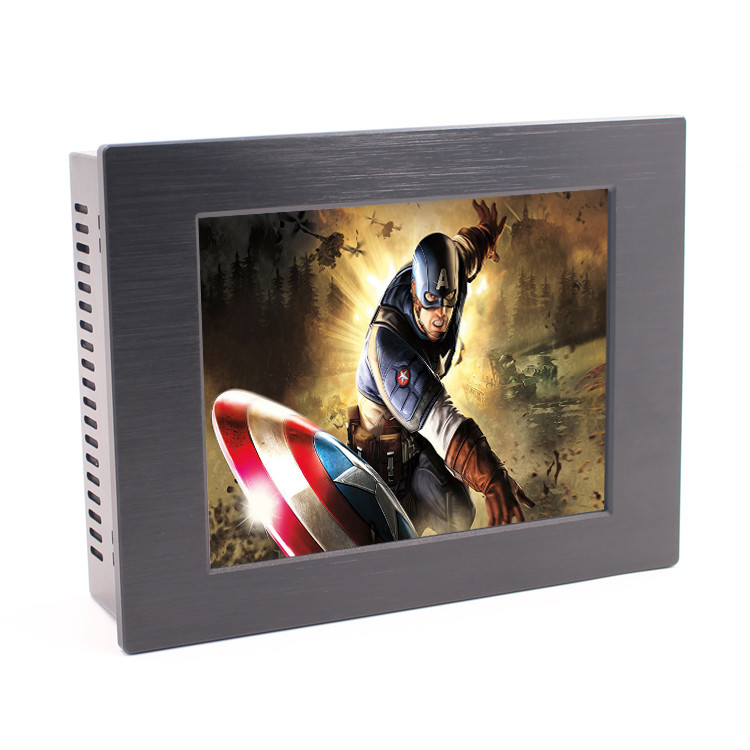

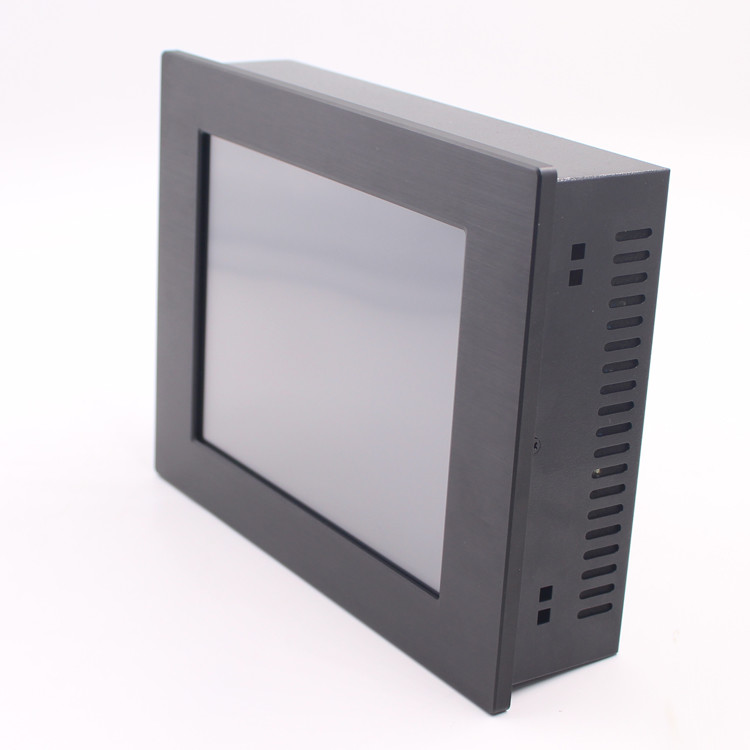

24V DC Powered 4:3 Aspect Ratio Front IP65 Rugged Touch Screen Monitor



Features



- Panel Mount LCD 8″ Industrial Grade
- Resistive touch screen with penmount touch controller
- IP65 Environmentally Sealed for Front Panel Only
- 350 Nits of Brightness
- VGA,DVI-I, HDMI inputs
- CE, FCC. RoHS Compliance
- 1.5 Year Warranty


Full Sepcification

LCD Panel Characteristics Screen Size 8’’ LED Panel
Touchscreen Type Resistive touch screen with Penmount controller
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
Contrast Ratio 500:1
View Angle 85x85(H),85x85(V)
Response Time 15 msec

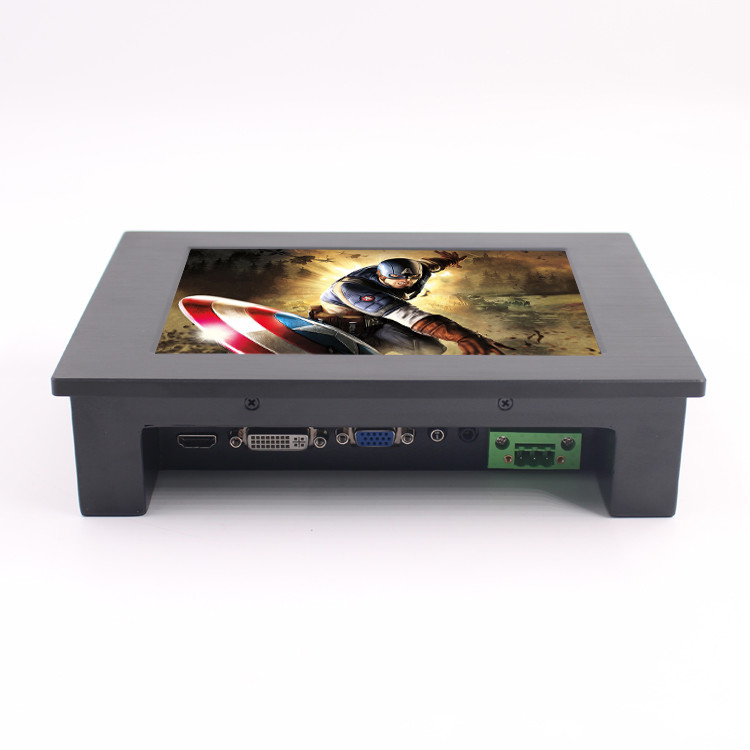

I/O Interface

USB Yes
HDMI  yes
VGA  yes
DVI Yes
Function 8-36V wide voltage
Front IP65
Mounting type VESA hole 75*75/100*100mm / Embedded
Optional Body sensor High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis



24VDC Rugged Touch Screen Monitor IP65 18W 350nits Vesa Embedded 0


8" Touch Screen monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.


2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.


3. Customization functions
It offers rich of interface to meet csutomers needs.


4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
