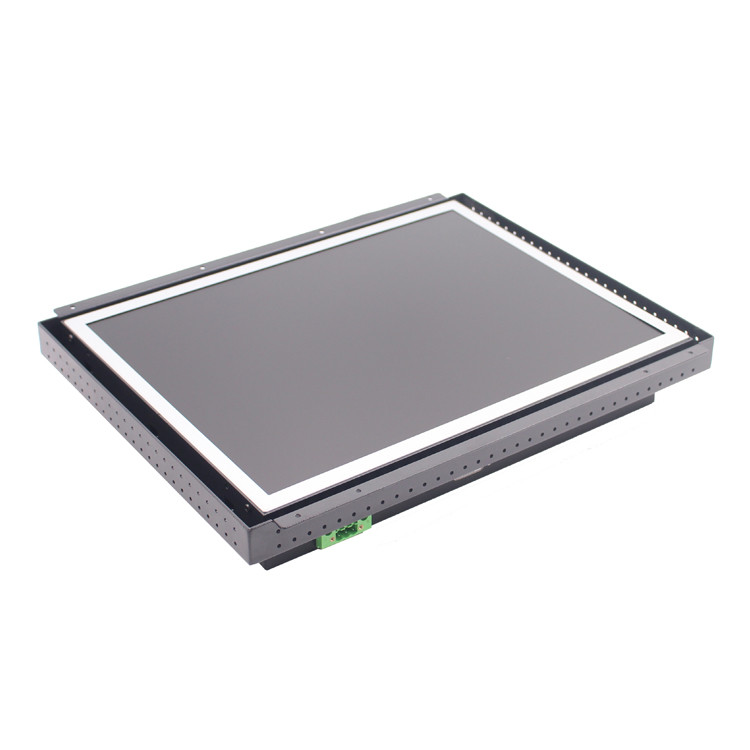

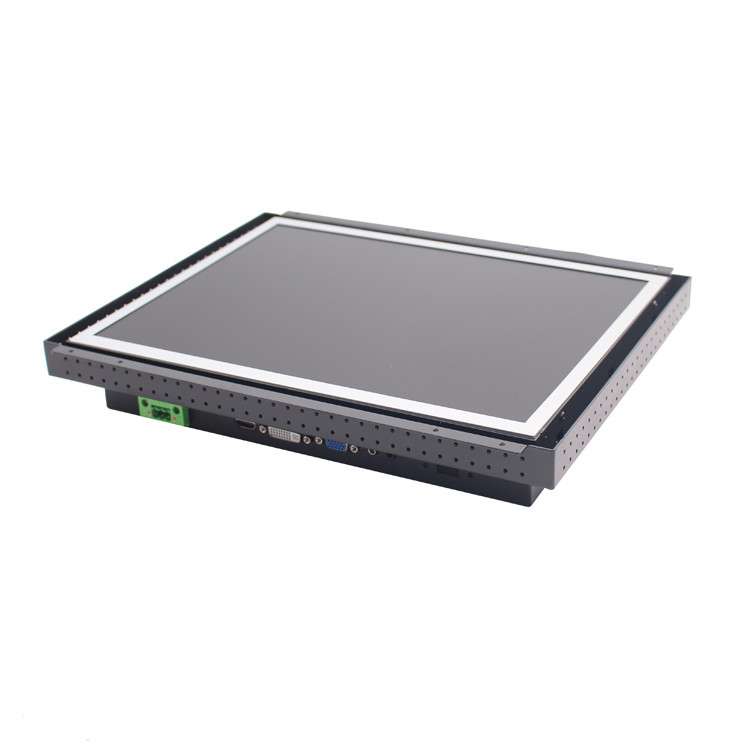

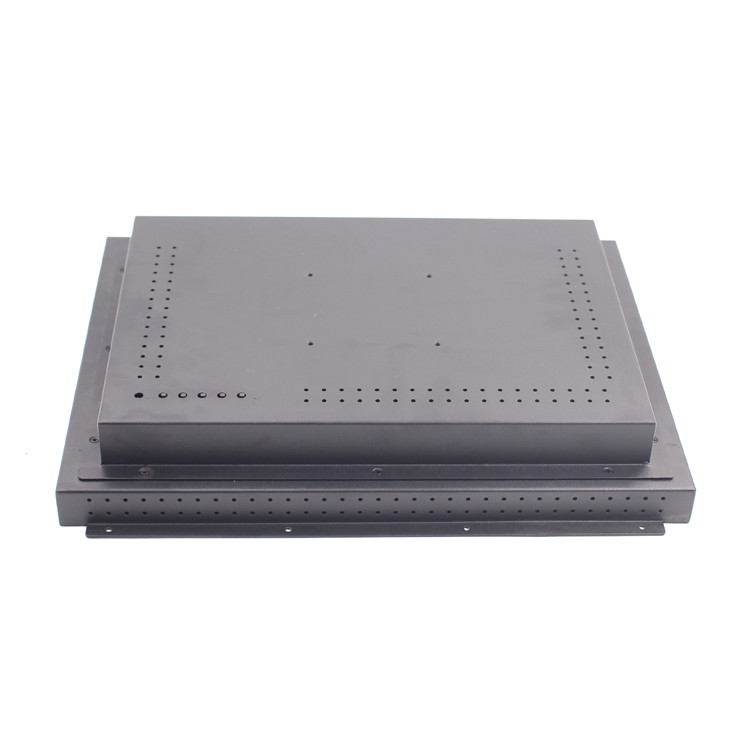

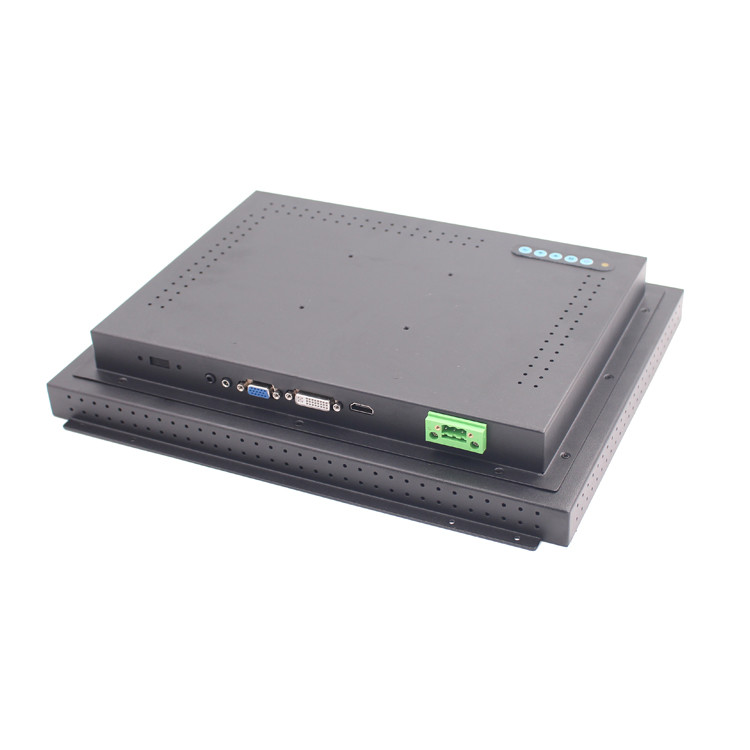

Frameless Non-Touch Monitor 9-36V Voltage Power Industrial Lcd Monitor
Features of frameless non-touch monitor
--- 15inch industrial grade panel with 1024*768 resolution
--- 350Nits brightness for normal use, 1000ntis can be choose
---- stable 9-36V wide power voltage
Configurations of frameless non-touch monitor
| LCD Panel Characteristics | Screen Size | 15-inch LCD Panel | ||
| Touchscreen Type | Without touch glass | |||
| Resolution | 1024(H)x 768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
|
USB | ------ | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 9-36V wide voltage | |||
| Mounting type | VESA 75/100mm | |||
| Optional | full wateproof | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operating Temperature | 0~60° C/-20-70C(optional) | |||
Application of frameless non-touch monitor
medical equipment
Electric control cabinet
Ticket Vending Machine
Package of open frame monitor
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
