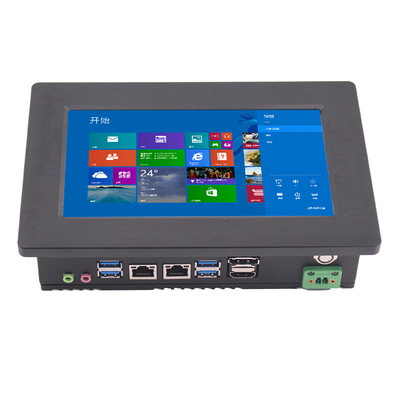

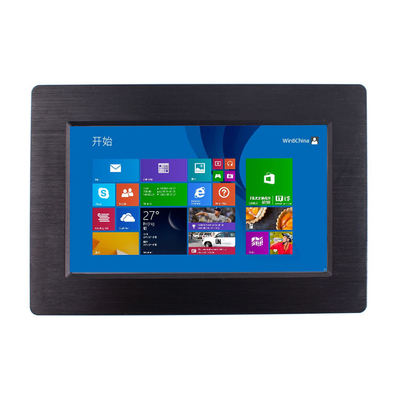

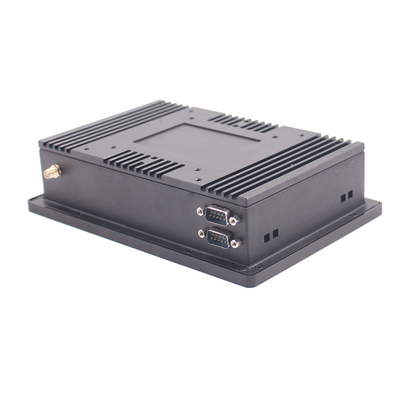

Embedded Touch Screen Panel Pc Intel J6413 High Processor AIO Pc
Features of embedded touch screen panel pc
1. Sensistive capacitive Touch screen
Resistive touch / SAW touch and IR touch can be choose.
2. Intel J6413 high processor
3. Rich ports
USB, RJ45, COM,DC
Configuration of embedded touch screen panel pc
|
Computer Configurations of Industrial panel pc |
|||
|
CPU |
Intel celeron J6413/1.8GHz |
||
|
Memory |
2GB to 8GB, DDR4 |
||
|
Built-in Storage |
32G/64G/128G/1TB SSD |
||
|
Operation System |
win7/8/10,linux, ubuntu |
||
|
Power Supply |
12V DC power |
||
|
Operating Temperature |
-20~70° C |
||
|
LCD Panel Charateristics |
|||
|
Screen Size |
7'' industrial grade Panel |
||
|
Touchscreen Type(optional) |
10points Capacitive Touch |
||
|
Resoltuion |
1024(H)*(RGB)* 600 (V) |
||
|
Aspect Ratio |
4:3 |
||
|
Brightness |
500cd/m2 |
||
|
View Angle |
80x80(H),80x80(V) |
||
|
Contrast Ratio |
700:1 |
||
|
I/O Interface |
|||
|
4 x USB2.0(up to 6) |
2xLAN(RJ45) |
||
|
DP |
2xCOM(RS232/RS485/RS422) |
||
|
HDMI |
|||
|
Functions |
|||
|
WIFI |
24V wide voltage |
||
|
Other Information |
|||
|
Frame Material |
Aluminum Alloy/Stainless Steel |
||
|
Sheel Process Technic |
Powder coated/Wire Drawing/CNC craft |
||
|
VASA Mounting |
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount |
||
|
Color |
Default balck,also can choose white,silvery or other colour |
||
|
Product Dimension(LxWxH) |
TBD |
||
|
Packing Dimension(LxWxH) |
TBD |
||
Customization service of embedded touch screen panel pc
1) CPU Intel Celeron 1037, J1900, J6413 and Core i3 i5 i7 optional
2) 7'' 10.4" 12'' 15" 17" 19" 21'' LCD panel
3) IR touch, Resistive touch and capacitive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Application of embedded touch screen panel pc
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
With own designer and electric engineers, customation products is okay for us.
Should you have any needs, please feel free to tell us.
