2mm tempered glass RS232 Industrial Lcd Panel Pc With GPIO
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND104PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4kgs/pc, packing size: 31×31×10.5cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | Industrial Touch Panel Pc | Size: | 10.4inch Industrial Grade Panel |
|---|---|---|---|
| Touchscreen: | Capacitive Touch Screen | CPU: | Intel Core I3-4025U/1.6 GHz |
| Wide Voltage: | 8-36V Wide Voltage | GPIO: | Built-in |
| WIFI: | Built-in | Material: | Aluminum Alloy+Metal |
| High Light: | Industrial Lcd Panel Pc With GPIO,RS232 Industrial Lcd Panel Pc,RS232 lcd pc panel |
||
Product Description
Capacitive Touch RS232 Industrial LCD Panel PC Ubuntu System With GPIO
Features
1. 10.4inch Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. Built-in 36V Wide Range Voltage , WIFI
6. GPIO built-in
7. WIFI
| Processor System | CPU | Intel Core I3-4025U/1.6 GHz | I/O Port | COM | 1 x RS232(RS485/RS422) | ||||||
| Memory | 2GB (up to 8G) | USB | 3 x USB2.0, 1xUSB3.0 | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 4 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | VGA | 1 x VGA | ||||||||
| LCD Panel Characteristics | Screen Size | 10.4’’ LED Panel,4:3 (7-22'' option) | Function | Wide voltage | 8-36V wide range voltage | ||||||
| Touchscreen Type | Capacitive touch screen/Resistive / IR /SAW | WIFI | |||||||||
| Resolution | 1024(H)x768(V) | GPIO | |||||||||
| Brightness | 350cd/m2 | Optional | 1000nits high brigthness for sunlight | ||||||||
| Other Information | Power supply | 110V-240V, 12V DC Input | IP65 / IP66 /IP67 Waterproof | ||||||||
| Working Temperature | 0-60℃ | Mounting | 75*75/100*100mm VESA / Embedded | ||||||||
| Cooling System | Fanless or with Fan | Enclosure | Metal/Aluminum/Stainless Steel (optional) | ||||||||

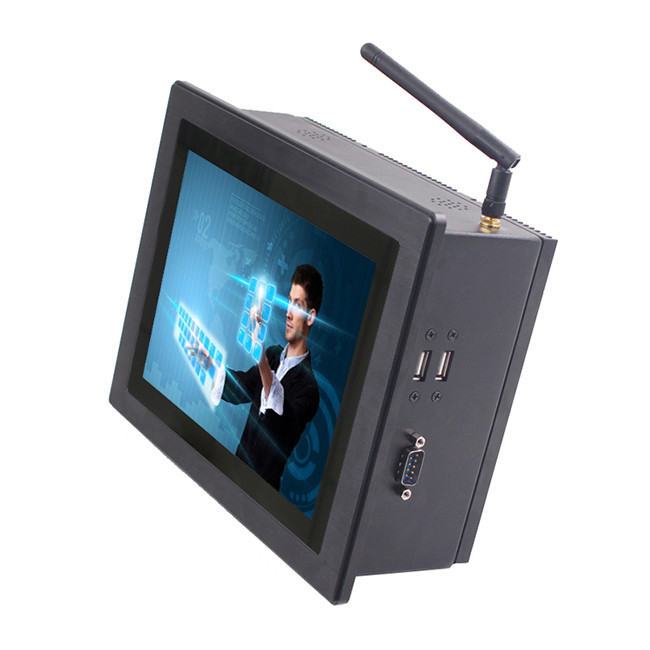

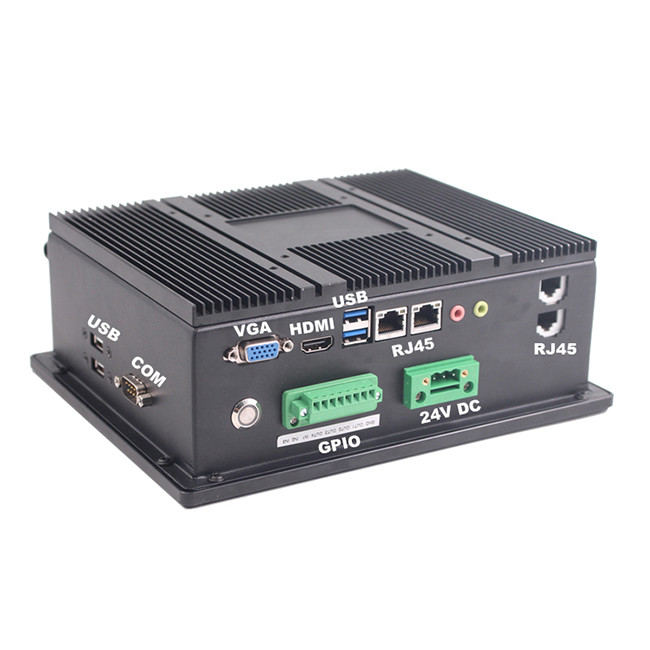

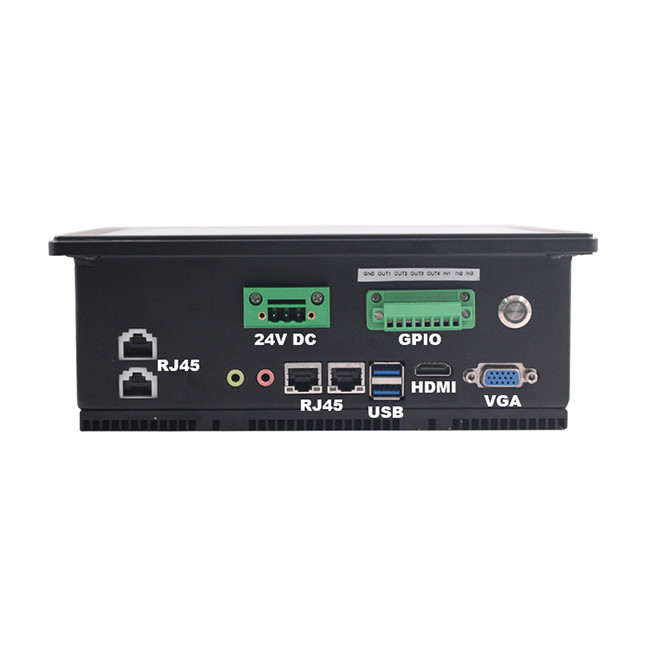

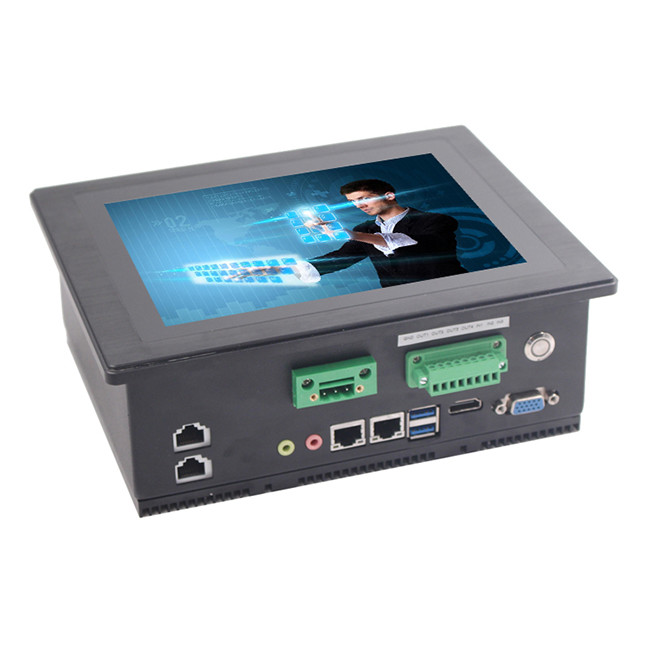

Detailed Image
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.8inch touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
Want to Know more details about this product
