24V DC Fanless Industrial Touch Panel PC 1024*768 Resolution

1piece
MOQ
Negotiable
Price
24V DC Fanless Industrial Touch Panel PC 1024*768 Resolution
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Industrial Touch Panel Pc
Touchscreen: Capacitive Touch Screen
Resolution: 1024*768
CPU: Intel Core I7-4510U/2.0 GHz
I/O Port: USB, COM, RJ45
Wide Voltage: 8-36V Wide Voltage
System: Windows 7/10(trial Version) / LInux
Material: Aluminum Alloy +Metal
Highlight:

24V DC Industrial Touch Panel PC

,

1024*768 Industrial Touch Panel PC

,

Fanless Industrial Touch Panel PC

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND150PC
Payment & Shipping Terms
Packaging Details: 1pc/carton weight: 4kgs/pc, packing size: 44×37×17cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Product Description

Intel Core I7 Processor Industrial Touch Panel Pc 24V DC Touchscreen Panel



Features

1. 15-inchIndustrial Touch Panel pc With multi-touch capacitive touchscreen,cover with 2mm tempered glass for vandalproof

2. 1024*768 resolution Industrial grade lcd panel

3. High performance motherboard, 7x24 continuous operation
4. Built-in 36V Wide Range Voltage

5. Rich interface for your needs



Processor System CPU Intel Core I7-4510U/2.0 GHz I/O Port COM 2 x RS232(RS485/RS422)
Memory 2GB (up to 8G) USB 3 x USB2.0, 1xUSB3.0
Storage 32G SSD(up to 1TB) LAN 1/2 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) VGA 1 x VGA
LCD Panel Characteristics Screen Size 15’’ LED Panel,4:3 (7-22'' option) Wide voltage 8-36V wide range voltage
Touchscreen Type Capacitive touch screen/Resistive / IR /SAW Optional WIFI
Resolution 1024(H)x768(V) 1000nits high brigthness for sunlight
Brightness 350cd/m2 IP65 / IP66 /IP67 Waterproof
Other Information Power supply 110V-240V, 12V DC Input Mounting 75*75/100*100mm VESA / Embedded
Working Temperature 0-60℃ Enclosure Metal/Aluminum/Stainless Steel (optional)
Cooling System Fanless or with Fan



Detailed Image

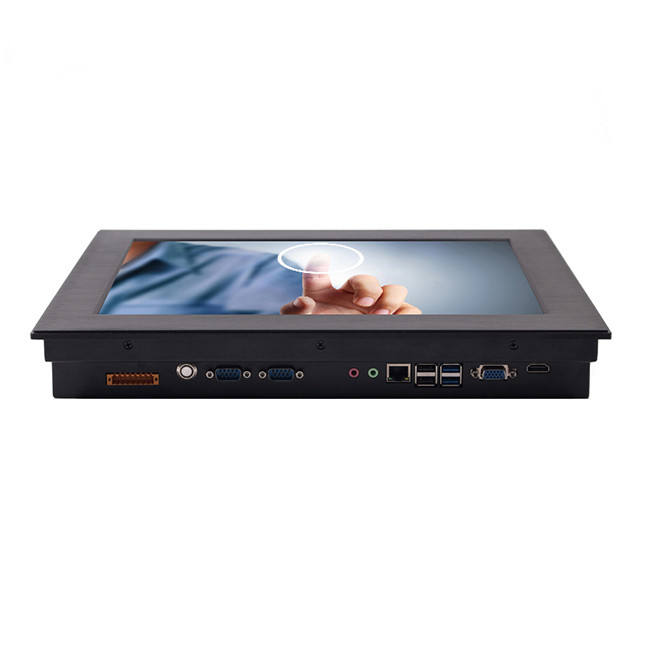

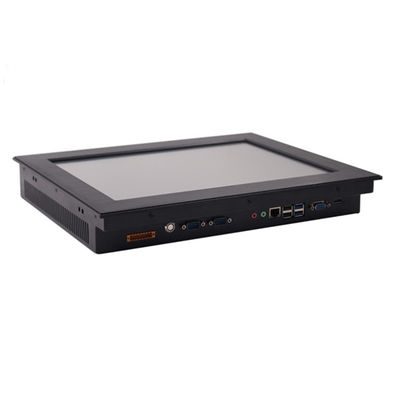

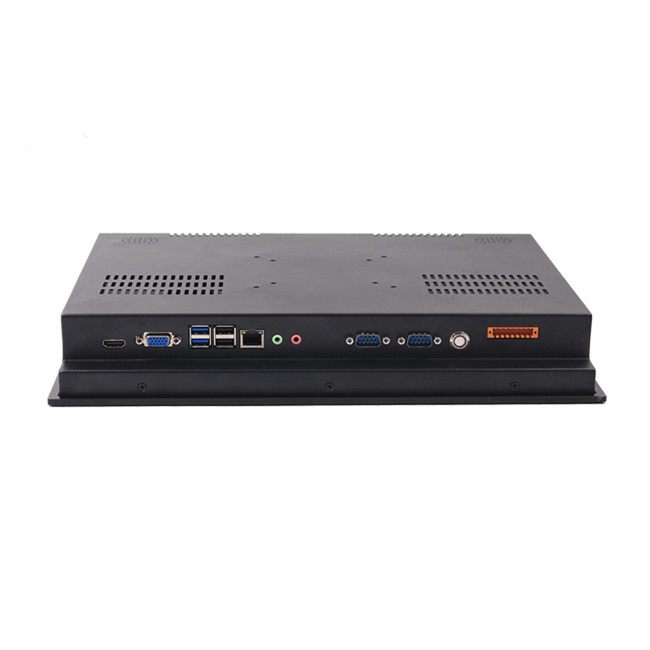

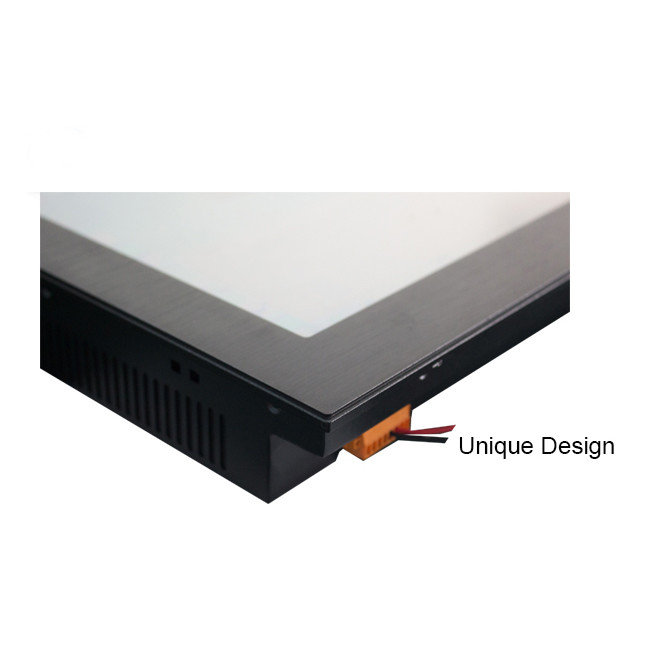

24V DC Fanless Industrial Touch Panel PC 1024*768 Resolution 0





24V DC Fanless Industrial Touch Panel PC 1024*768 Resolution 1



    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Embedded touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
