17'' Capacitive Industrial Touch Panel PC 100*100mm Mounting

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND170PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4kgs/pc, packing size: 50×14×44cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: Industrial Touch Panel Pc Resolution: 1280*1024
Touchscreen: Capacitive Touch Screen CPU: Intel J1900/2.0 GHz
WIFI: Built-in Mount: Open Frame
Material: Metal Color: Black / White / Slivery...etc
High Light:

17'' Capacitive Industrial Touch Panel PC

,

100*100mm Industrial Touch Panel PC


Product Description

 Open Frame Capacitive Industrial Touch Panel Pc 17 Inch Computer​


Features
1. 17inch Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. Rugged metal frame with open frame design



Processor System CPU Intel Quad core J1900/2.0 GHz I/O Port COM 1 x RS232(RS485/RS422)
Memory 2GB (up to 8G) USB 3 x USB2.0, 1xUSB3.0
Storage 32G SSD(up to 1TB) LAN 1 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) VGA 1 x VGA
LCD Panel Characteristics Size 17’’ LED Panel,4:3 (7-22'' option) HDMI 1 X HDMI
Touchscreen Type Capacitive touch screen/Resistive / IR /SAW Function WIFI
Brightness 350cd/m2 Optional 1000nits high brigthness for sunlight
Resolution 1280(H)x1024(V) 9-36V wide voltage
Other Information Power supply 110V-240V, 12V DC Input IP65 / IP66 /IP67 Waterproof
Working Temperature -20-70℃ Mounting 75*75/100*100mm VESA / Embedded
Cooling System Fanless or with Fan  Enclosure Metal/Aluminum/Stainless Steel (optional)


Detailed Image

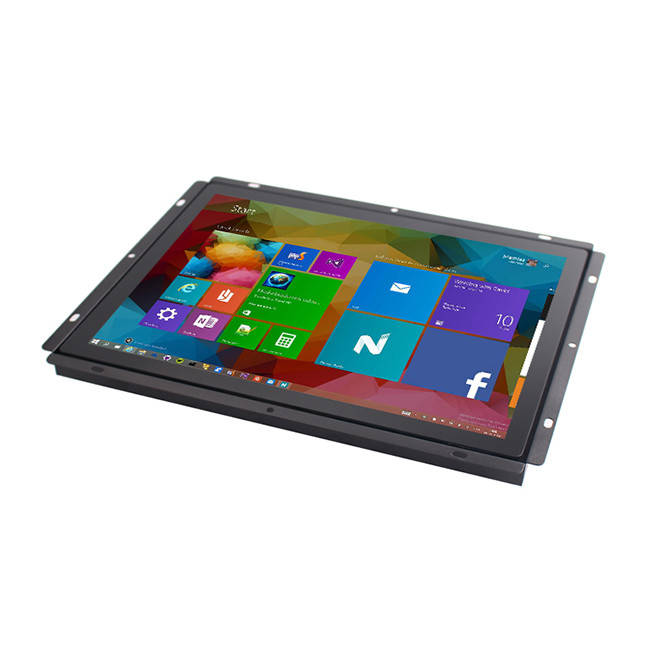

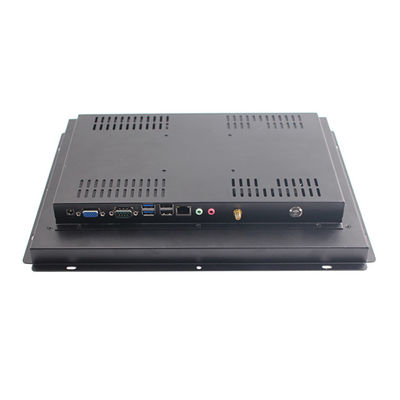

17'' Capacitive Industrial Touch Panel PC 100*100mm Mounting 017'' Capacitive Industrial Touch Panel PC 100*100mm Mounting 1

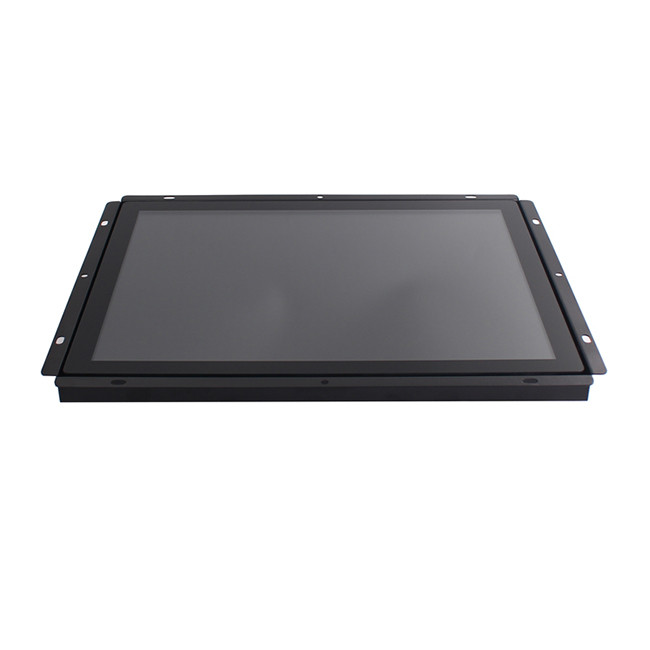

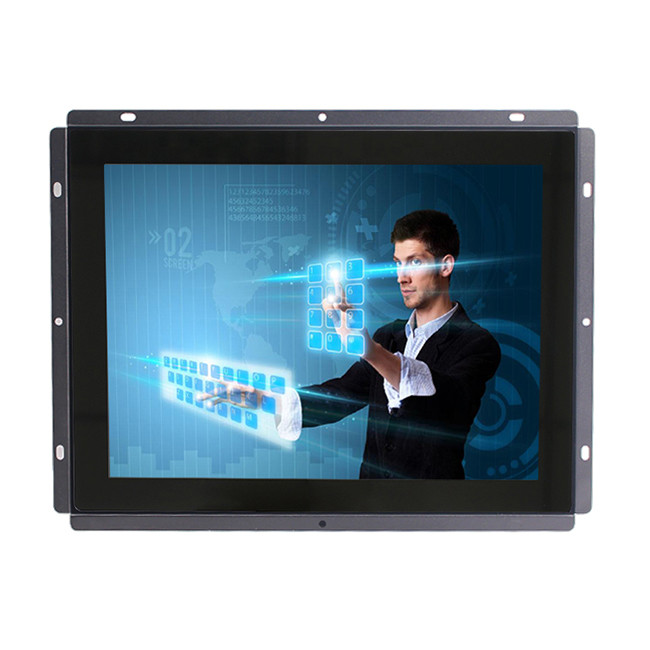

17'' Capacitive Industrial Touch Panel PC 100*100mm Mounting 2

    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Industrial touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
