1280*800 Industrial Touch Panel PC Passive Cooling

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND101PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4kgs/pc, packing size: 31×31×10.5cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: Industrial Touch Panel Pc Resolution: 1280*800
Touchscreen: Capacitive Touch Screen CPU: Intel J1900/2.0 GHz
Fanless: Passive Cooling System COM: RS232/RS422/RS485
Color: Black / White / Slivery...etc Material: Aluminum Alloy
High Light:

1280*800 Industrial Touch Panel PC

,

Passive cooling Industrial Touch Panel PC


Product Description

 Fanless Rugged Industrial Touch Panel Pc With RS422 / RS232 / RS485​


Features
1. 10.1inch Fanless Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. 1280*800 Resolution Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. 2*RJ45, RS232/RS422/RS485

6. Brightness control button which can adjust burightness



Processor System CPU Intel Quad core J1900/2.0 GHz I/O Port COM 4 x RS232(RS485/RS422)
Memory 2GB (up to 8G) USB 3 x USB2.0, 1xUSB3.0
Storage 32G SSD(up to 1TB) LAN 2 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) VGA 1 x VGA
LCD Panel Characteristics Size 10.1’’ LED Panel,16:9 (7-22'' option) HDMI 1 x HDMI
Touchscreen Type Capacitive touch screen/Resistive / IR /SAW Function Brightness control button
Brightness 350cd/m2 Optional 1000nits high brigthness for sunlight
Resolution 1280(H)x800(V) 9-36V wide voltage
Other Information Power supply 110V-240V, 12V DC Input IP65 / IP66 /IP67 Waterproof
Working Temperature -20-70℃ Mounting 75*75/100*100mm VESA / Embedded
Cooling System Fanless or with Fan  Enclosure Metal/Aluminum/Stainless Steel (optional)


Detailed Image

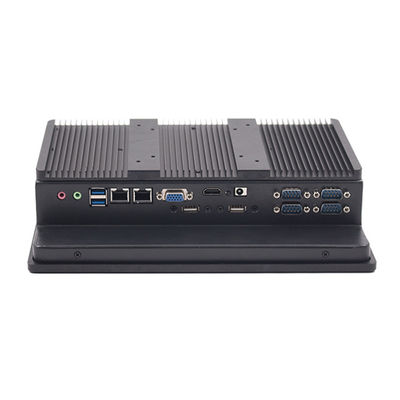

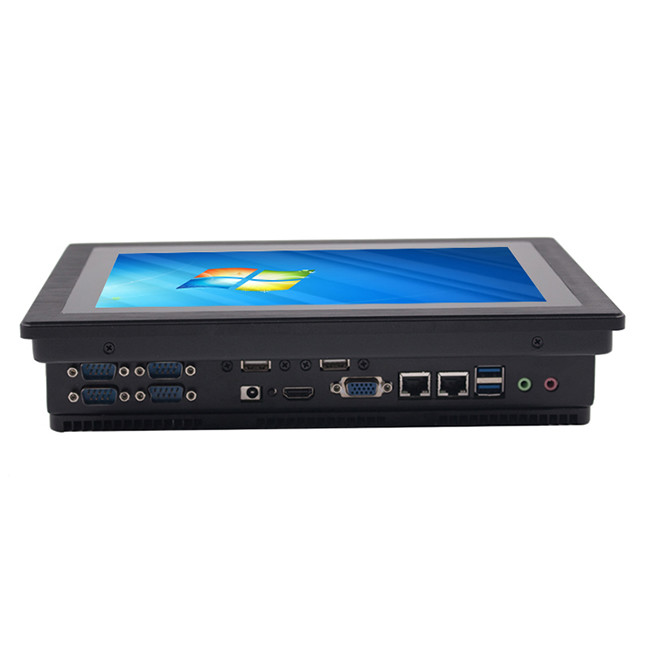

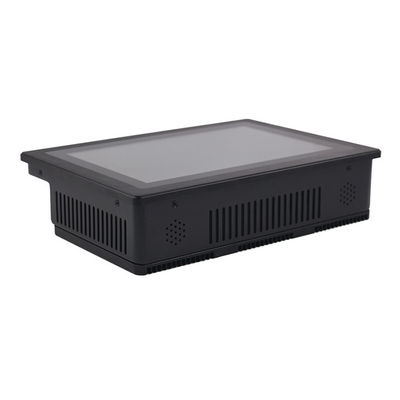

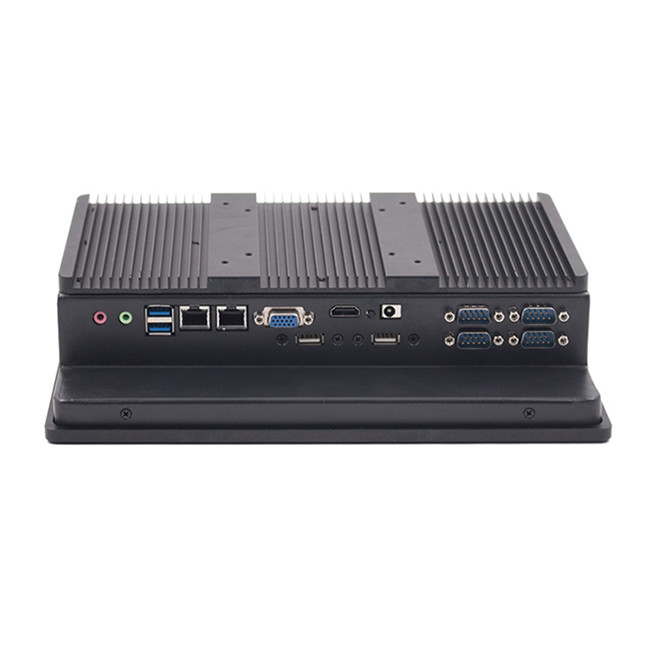

1280*800 Industrial Touch Panel PC Passive Cooling 01280*800 Industrial Touch Panel PC Passive Cooling 1

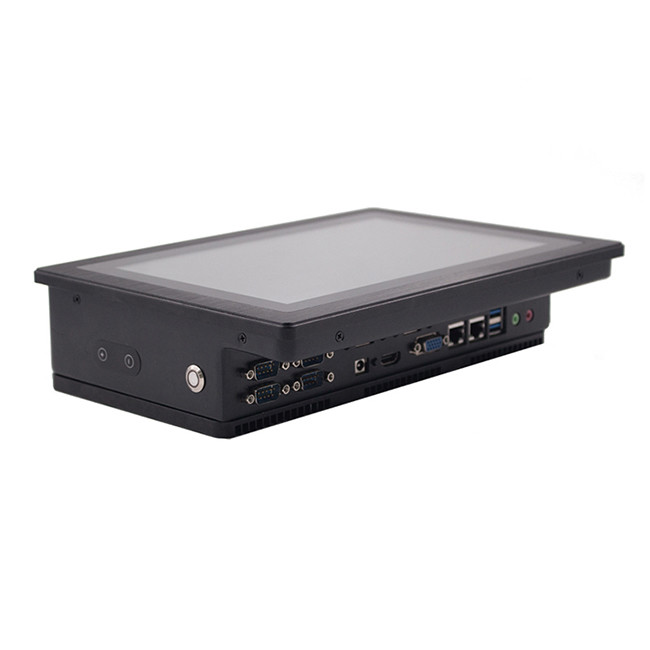

1280*800 Industrial Touch Panel PC Passive Cooling 2

    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Industrial touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
