11'' 24V Industrial Touch Panel Pc Passive Cooling System

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND116PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4.5kgs/pc, packing size: 45×35×12cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: Embedded Touch Panel Pc Touchscreen: Capacitive Touch Screen
Processor: Intel Quad-core J1900/2.0Ghz Cooling System: Heat Sink For Cooling
Warranty: 12 Months Material: Aluminum+Metal
Working Temperature: -20-70C Color: Black / White / Slivery...etc
High Light:

11'' 24V Industrial Touch Panel Pc


Passive Cooling Industrial Touch Panel Pc


Passive Cooling touch screen panel pc

Product Description

Passive Cooling System 11inch 24V Wide Voltage Embedded Touch Panel Pc

1. 11.6inch Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. 9-36V wide voltage
4. High performance motherboard, 7x24 continuous operation
5. Front aluminum bezelTrue Flat panel


Processor System CPU Intel Quad core J1900/2.0 GHz I/O Port COM 1 x RS232(RS485/RS422)
Memory 2GB (up to 8G) USB 3 x USB2.0, 1xUSB3.0
Storage 32G SSD(up to 1TB) LAN 1 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) VGA 1 x VGA
LCD Panel Characteristics Size 11.6’’ LED Panel,16:9 (7-22'' option) HDMI --------
Touchscreen Type Capacitive touch screen/Resistive / IR /SAW Function 9-36V wide voltage
Brightness 350cd/m2 Optional 1000nits high brigthness for sunlight
Resolution 1920(H)x1080(V) GPIO
Other Information Power supply 110V-240V, 12V DC Input IP65 / IP66 /IP67 Waterproof
Working Temperature -20-70℃ Mounting 75*75/100*100mm VESA / Embedded
Cooling System Fanless or with Fan  Enclosure Metal/Aluminum/Stainless Steel (optional)

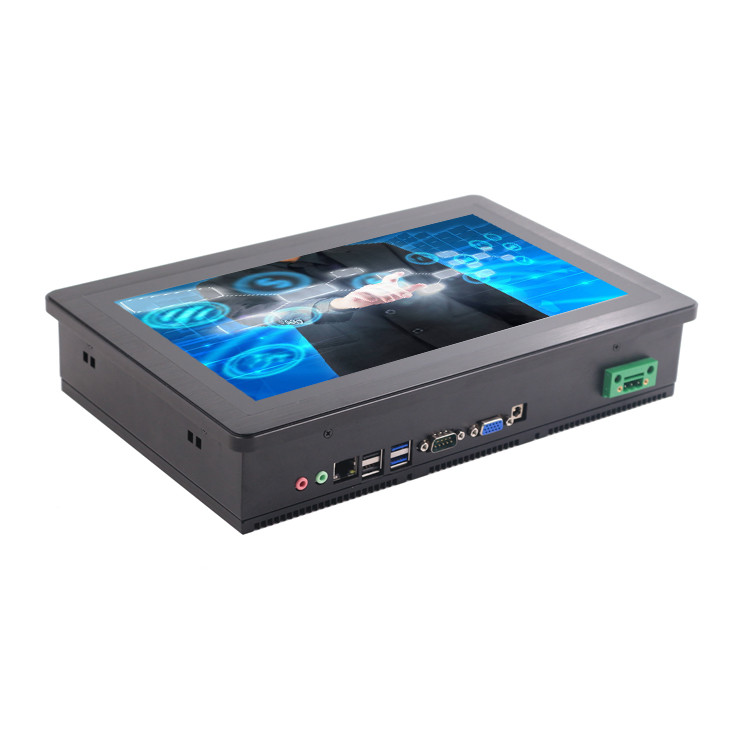

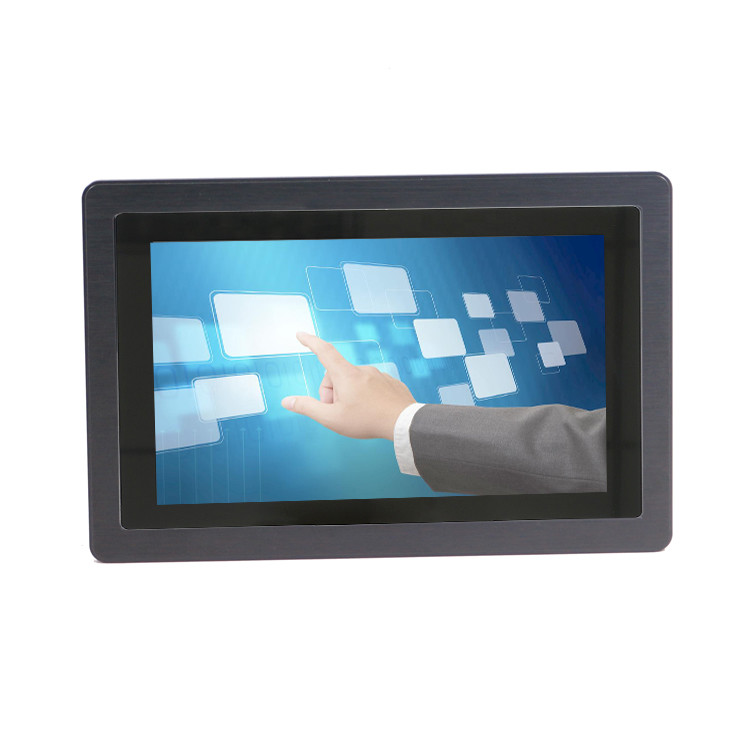

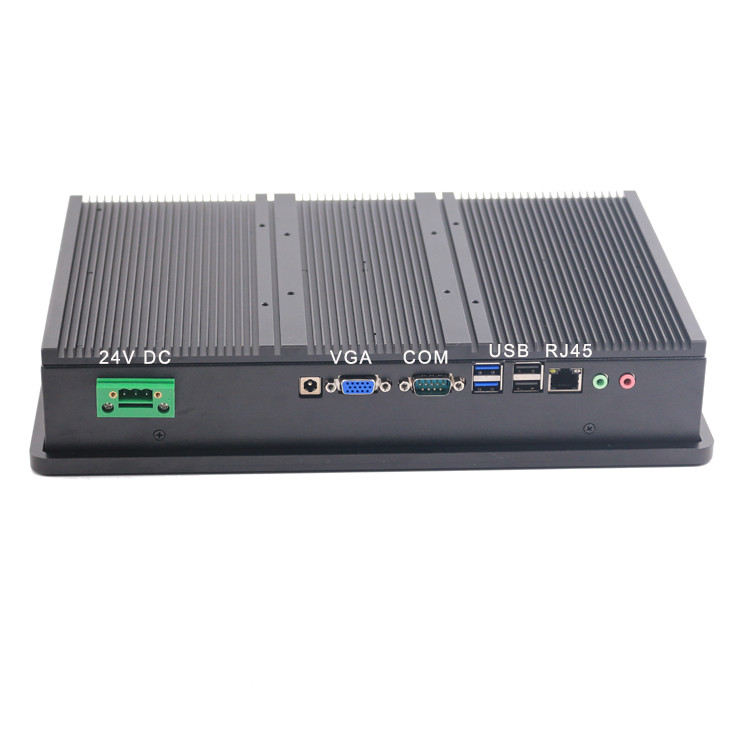

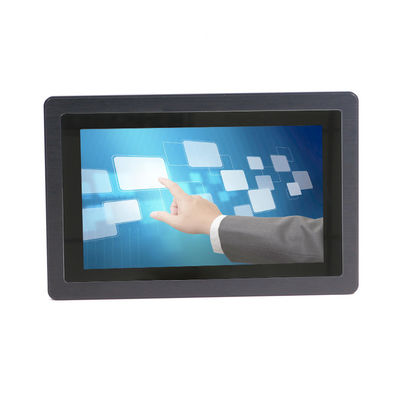

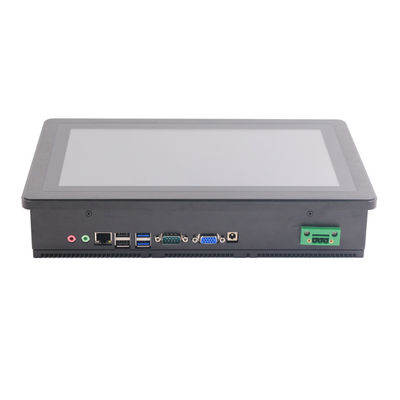

Detailed Image
11'' 24V Industrial Touch Panel Pc Passive Cooling System 011'' 24V Industrial Touch Panel Pc Passive Cooling System 1
11'' 24V Industrial Touch Panel Pc Passive Cooling System 2
    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Embedded touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.

   ODM / OEM acceptable.

   Welcome to ask for more information!
