10-Inch 1280x800 Industrial Touch Panel Pc With RS485 / RS422 / RS232
Features
1. 1280*800 Industrial Touch Panel Pc
2. Capacitive Touch screen
3. High performance motherboard, 7x24 continuous operation
4. Front Aluminum alloy good mechanical properties, excellent heat dispation
5. Lot of I/O as your needs: 4*RJ45
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.1’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1280(H)x800(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232, 2*RS485/RS422(they can switchable via BIOS) | |
| USB | 3xUSB2.0, 1xUSB3.0 | ||
| LAN | 2xRJ45, 10/100/1000 Mbps | ||
| VGA | 1x VGA | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

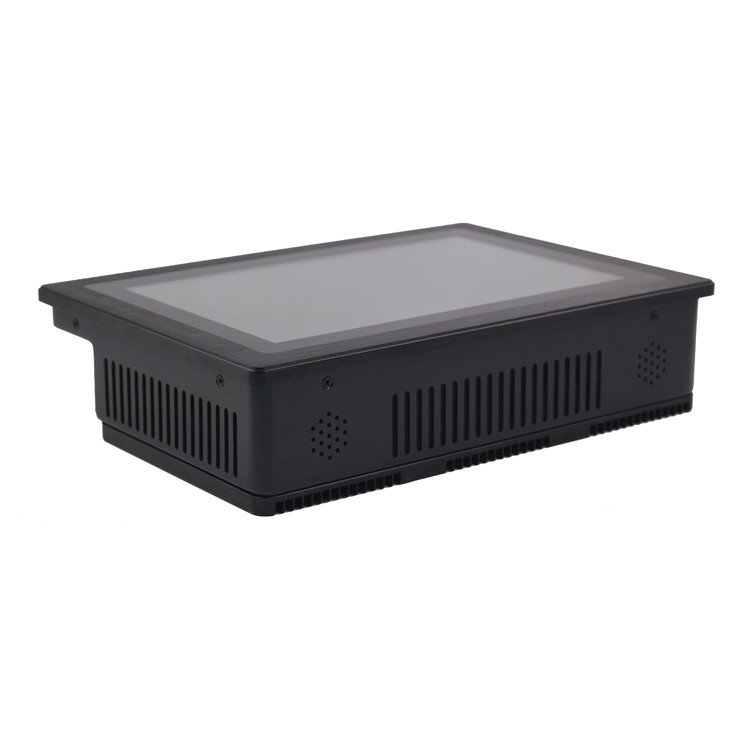

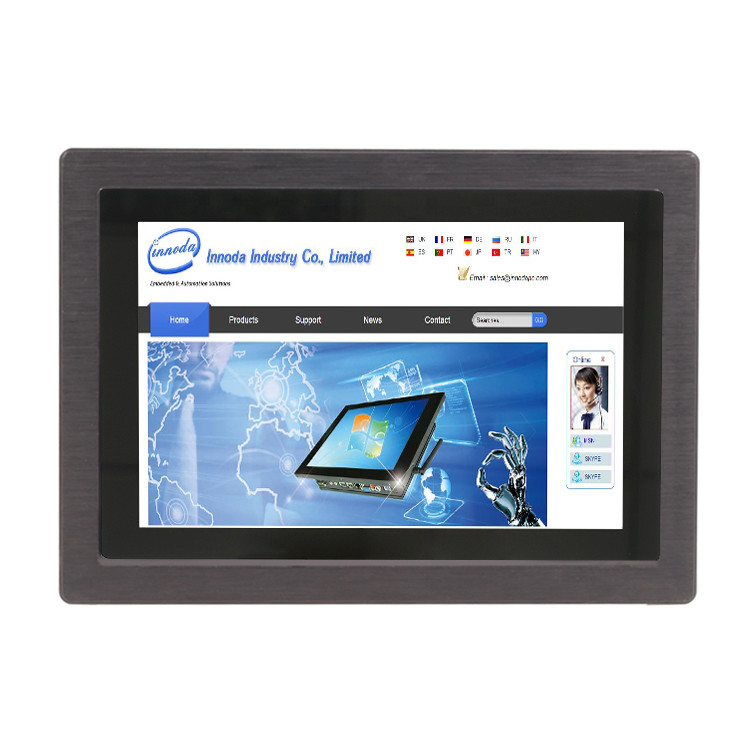

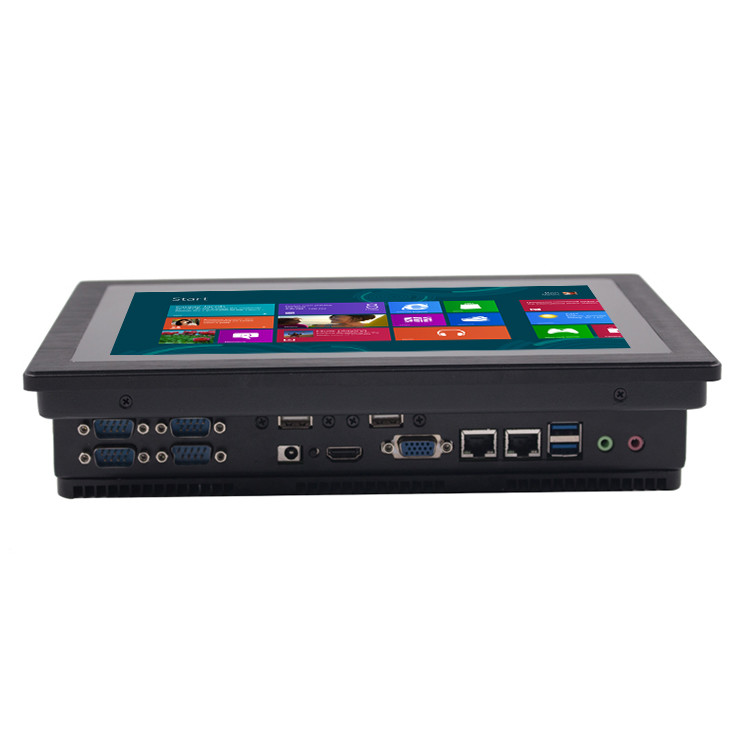

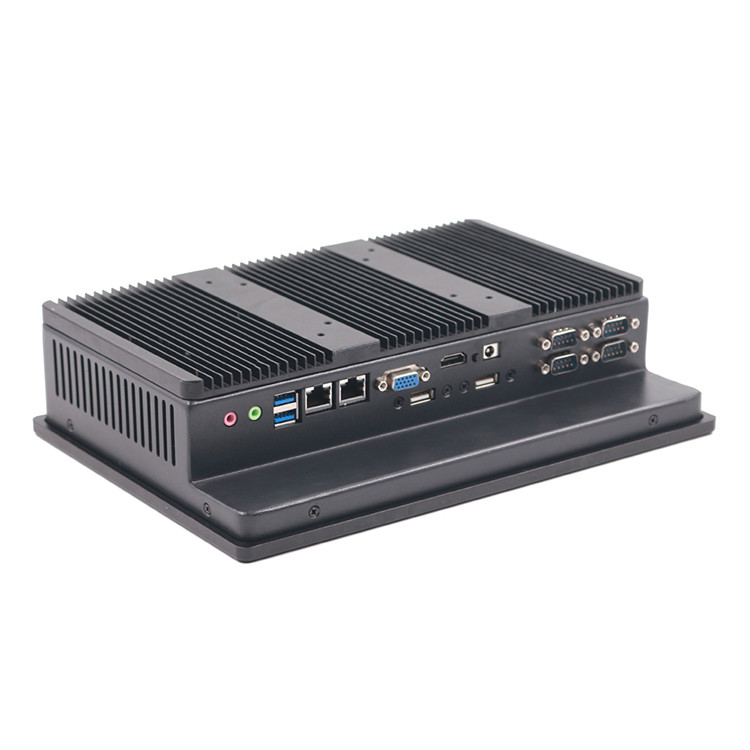

Detailed Image
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.7-43inch wide product line,which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
