SUS304 Frame Outdoor IP67 Waterproof Panel Pc With RFID Card Reader
Features
1. Waterproof IP65 Panel pc With multi-touch capacitive touchscreen
2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)
3. Waterproof antenna for WIFI
4. Various water-tight IO Cables included
5. Excellent performance motherboard, 7x24 continuous operation
5. Durable 1.5mm Stainless steel frame
6. Good cooling system--big heat sink inside of the machine
7. Card Reader RFID / NFC integrated
8. Working Temperature -20-70C
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz(Intel Core I3/I5/I7 optional) | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.4’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 1*RS232(can add to 4*COM) | |
| USB | 2xUSB2.0(can add to 4*USB) | ||
| LAN | 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45) | ||
| DC jack | 1x DC jack | ||
| Function |
Full waterproof IP67 | ||
| Card Reader -NFC / RFID | |||
| WIFI (waterproof IP67 antenna imported from Germany) | |||
| Optional | 8-36V wide range voltage | ||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| AG glass / AR glass | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with waterproof cables | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Stainless Steel SUS304(metal case option) | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

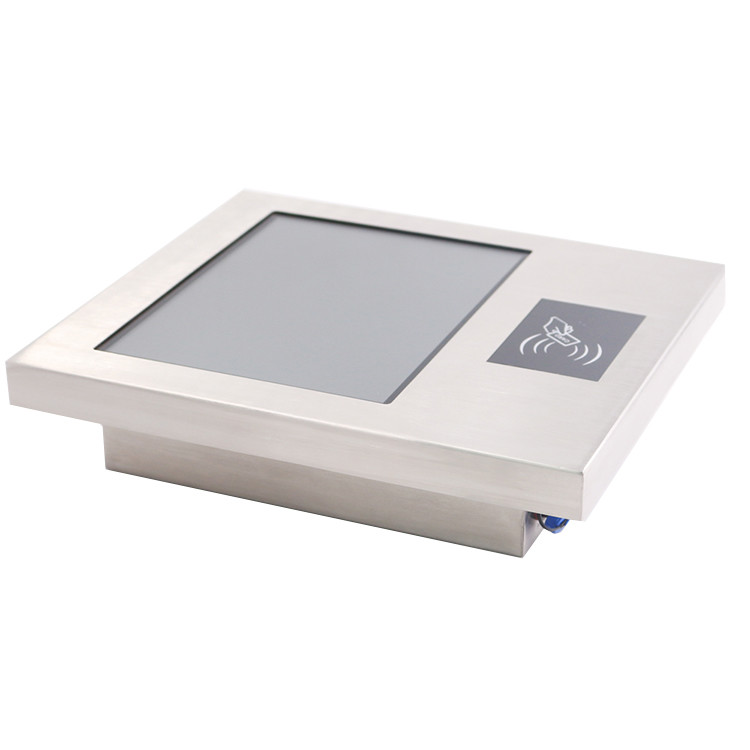

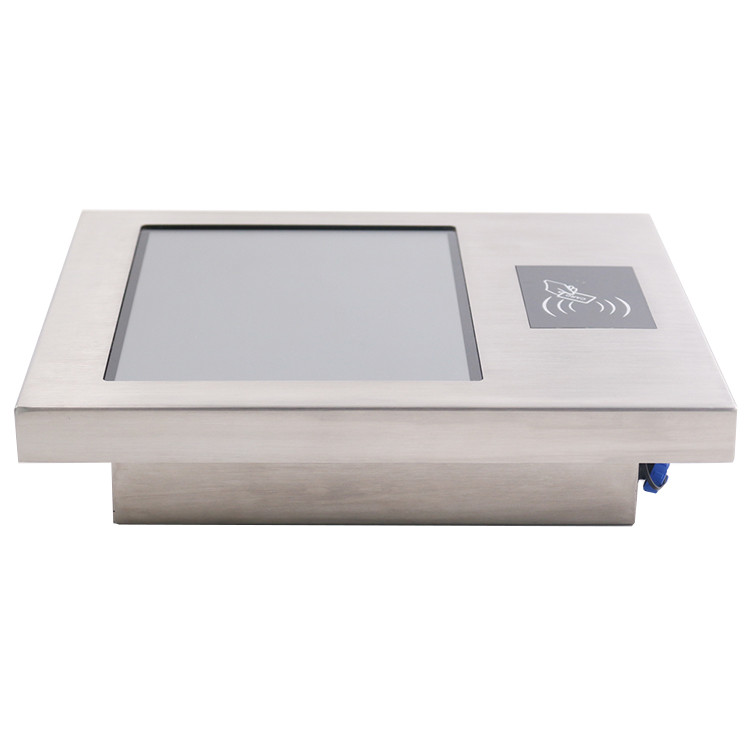

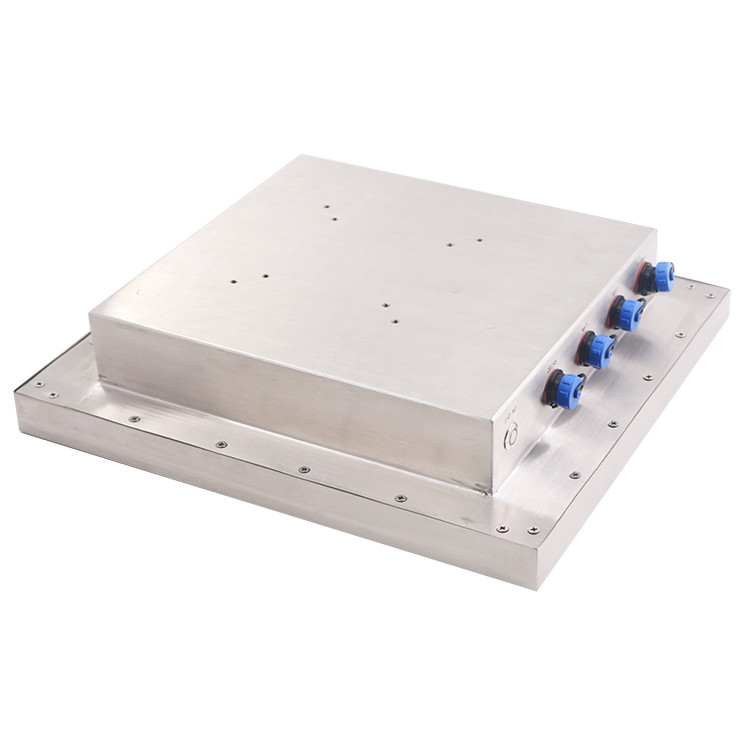

Detailed Image
15inch Waterproof Panel PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Waterproof IP65 panel pc which have excellent work performane,Fully sealed IP65/67/68 stainless steel frame, it's widly use to boat,kitchen, food industry...
It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
