| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND190PC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 6.5kgs/pc, packing size: 50×44×15cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
| Type: | 19-inch Waterproof Panel Pc | Aspect Rito: | 16:9 |
|---|---|---|---|
| Warranty: | 12 Months | I/O Port: | USB, COM, RJ45 |
| IP Rate: | Waterproof IP65/67/68 Optional | OS System: | Windows 7/10, Linux, Ubuntu |
| Application: | Boat/Kitchen/ Gas Station/ Slaughter House... | Material: | 1.5mm Stainless Steel |
| High Light: | 128G SSD Waterproof Panel PC,1280x1024 Waterproof Panel PC,4G RAM Waterproof Panel PC |
||
4G RAM 128G SSD Waterproof Panel Pc Black Color Waterproof HMI
Features
1. Waterproof IP65 Panel pc With 2mm tempered multi-touch capacitive touchscreen
2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included
4. Excellent performance motherboard, 7x24 continuous operation
5. Industrial LCD panel, wide viewing angle, high nits, true color.
6. Good cooling system--big heat sink inside of the machine
7. Stainless steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to
bacterial growth.
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz/ I3/I5/I7 | |
| Memory | 4G DDR3(up to 8G) | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 19inch LED Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch/ IR touch optional | ||
| Resolution | 1280(H)x1024(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232(can add to 4*COM) | |
| USB | 2xUSB2.0(can add to 4*USB) | ||
| LAN | 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45) | ||
| DC jack | 1x DC jack | ||
| Function |
Full waterproof IP67/IP68 optional | ||
| Optional | Card Reader -NFC / RFID | ||
| WIFI (waterproof IP67 antenna imported from Germany) | |||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| AG glass / AR glass | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with waterproof cables | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | 1.5mm Stainless Steel SUS304(metal case option) | |
| Color | Gray/Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certifiactes | CE RoHS | ||

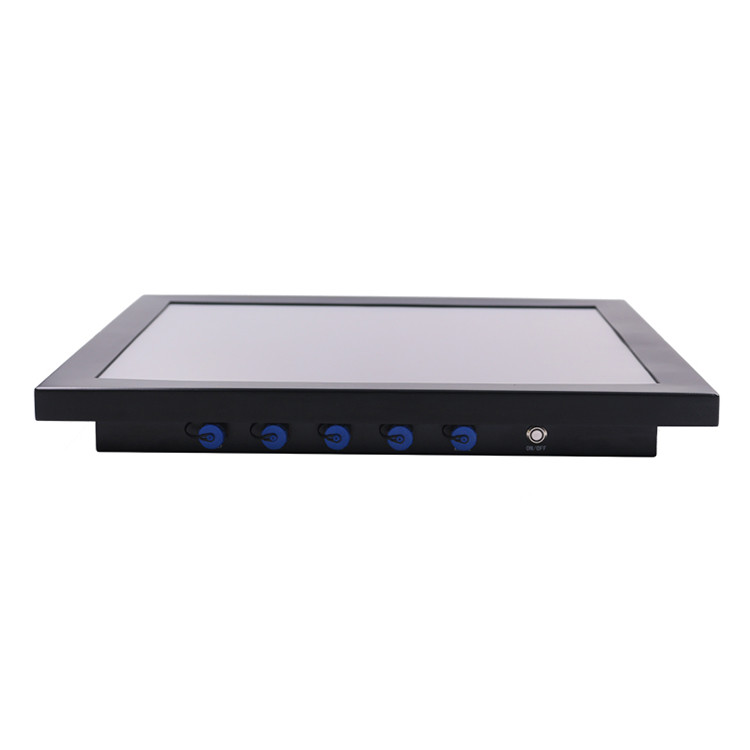

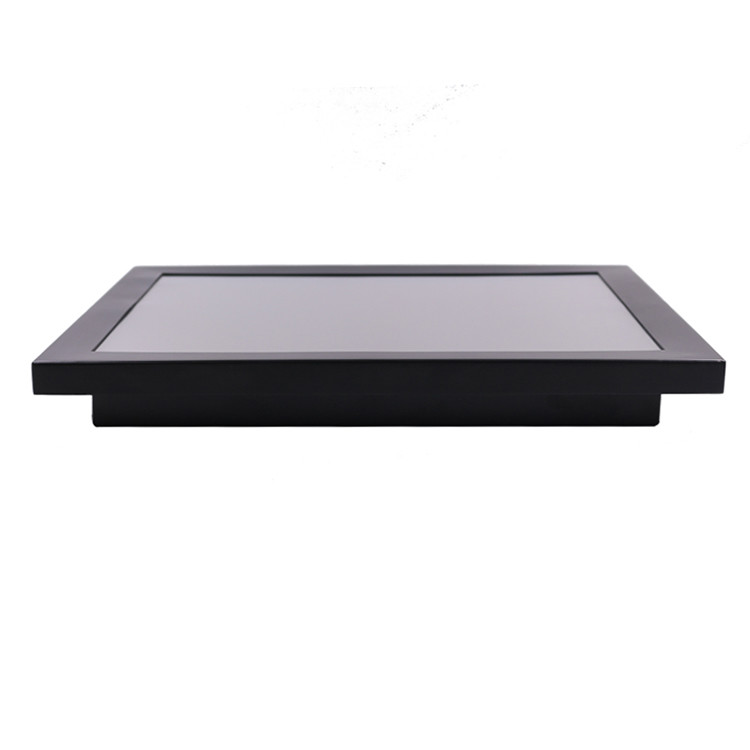

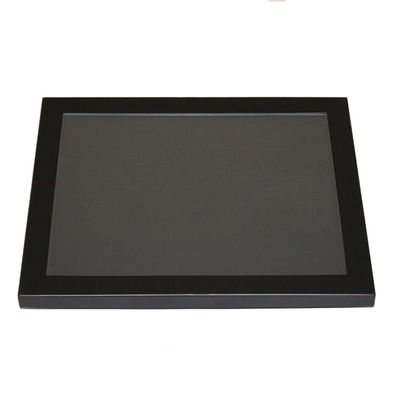

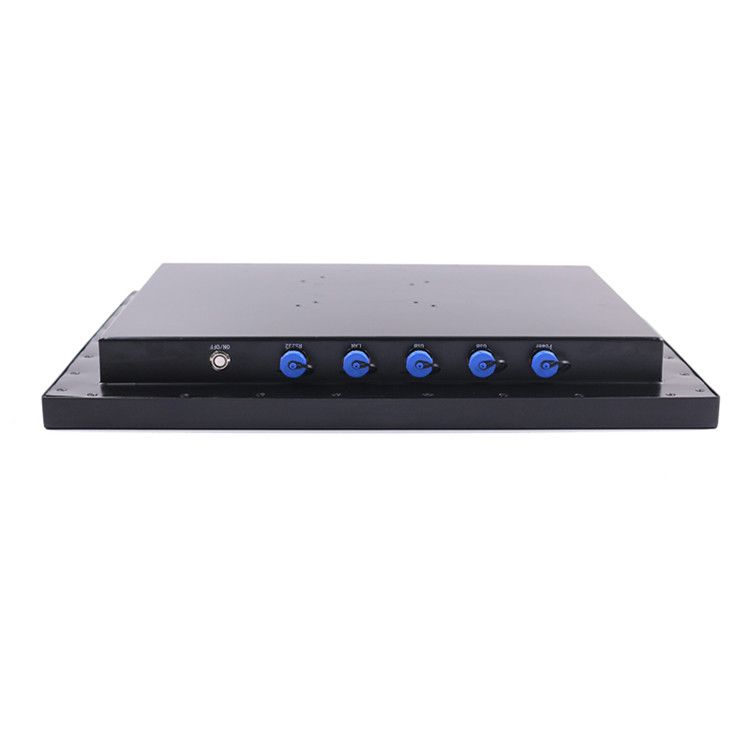

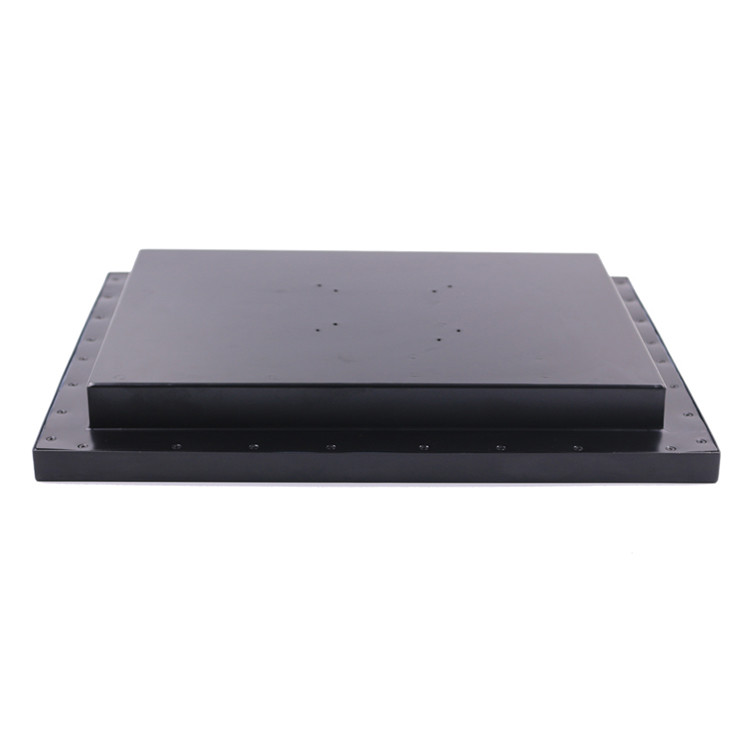

Detailed Image
Waterproof Panel PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Our Advatnge
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at
least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof
computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
