| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND173PC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4.5kgs/pc, packing size: 50×44×14cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
| Type: | 1080P Industrial Touch Panel Pc | Aspect Ratio: | 16:9 |
|---|---|---|---|
| CPU: | Intel Quad-core J1900 | Warranty: | 12 Months |
| Color: | Black / White / Slivery...etc | Material: | Aluminum Profile+metal |
| High Light: | 17.3inch Industrial Panel Pc With Touch Screen,16:9 Industrial Panel Pc With Touch Screen,17.3inch industrial touch screen pc |
||
1080P Full HD 17.3inch Industrial Touch Panel Pc For Automation System
Features
1. 17.3-inch tft lcd panel with 1920*1080 high resolution
2. Quad-core intel J1900 low consumption motherboard
3. 10points capacitive touchscreen panel with 2mm tempered glass
4. Wireless WIFI inside
5. Alumimun profile + Metal frame
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 17.3’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1920(H)x1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| HDMI | 1xHDMI | ||
| VGA | 1xVGA | ||
| Function | WIFI | ||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

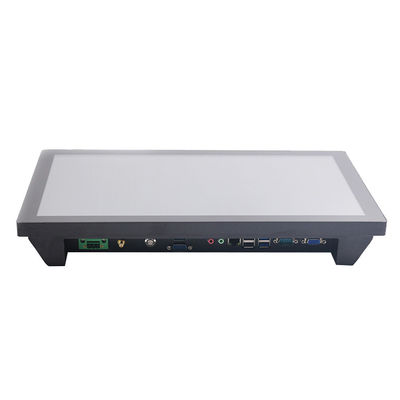

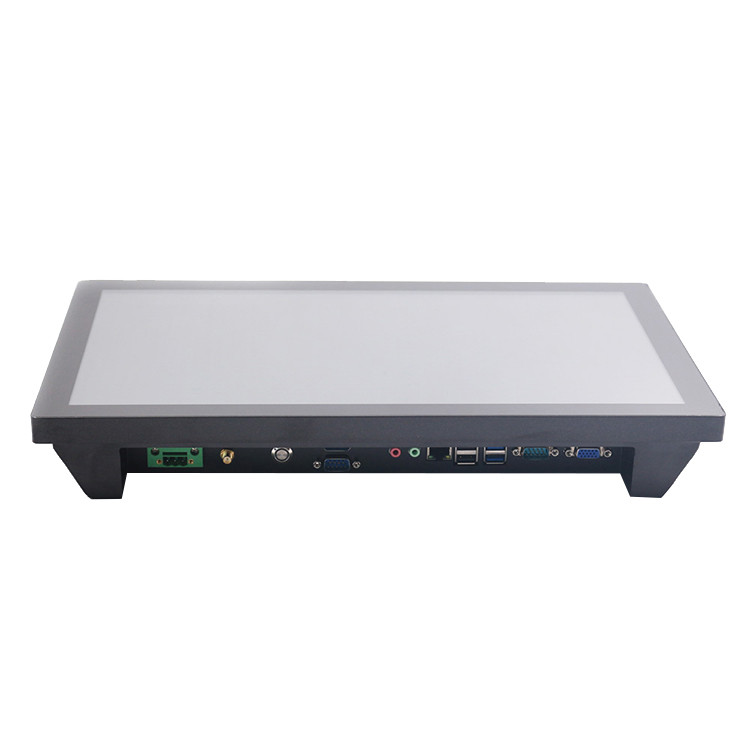

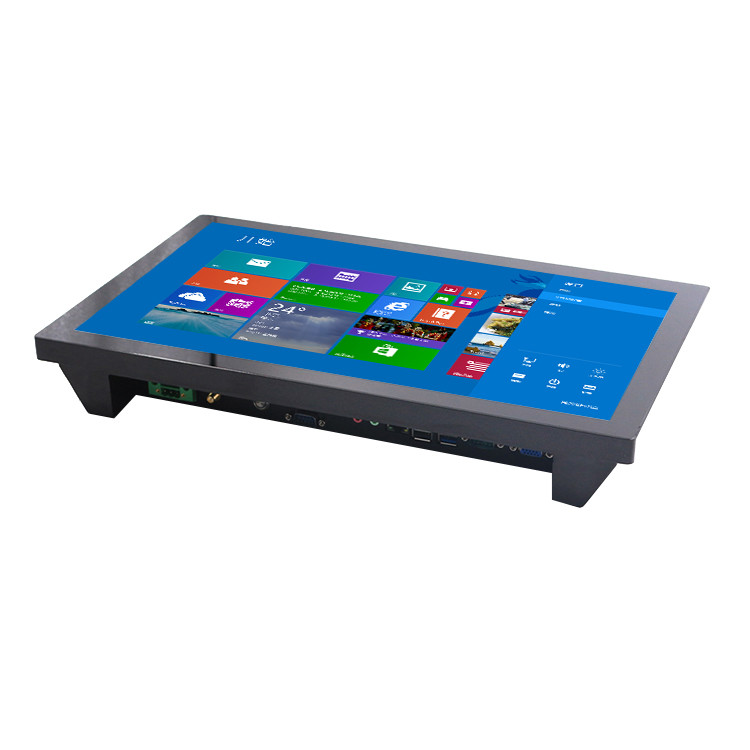

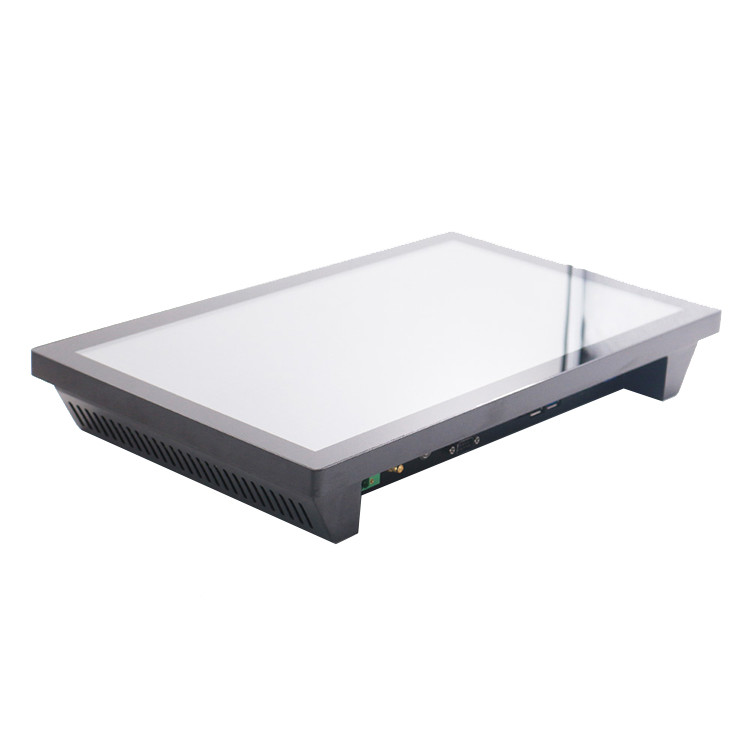

Detailed Image
Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Hospital
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at
least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof
computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
5. No MOQ limited
We can provide sample first to test it for the big project.
