| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND070M |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 3kgs/pc, packing size: 27×22×6.6cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Type: | 7-inch Industrial Panel Mount Monitor | Resolution: | 1024*600 |
|---|---|---|---|
| I/O: | VGA, HDMI,DVI | Warranty: | 12 Months |
| Working Temperature: | -20-70C | Color: | Black / White / Slivery...etc |
| System: | Support Widnows/Android/ Linux | Material: | Aluminum+Metal |
| High Light: | LCD 15'' Industrial Panel Mount Monitor,1024x600 15'' Industrial Panel Mount Monitor,1024x600 industrial lcd monitor |
||
7'' 12'' 15'' Industrial Panel Mount Monitor 10points Capacitive Lcd Monitor
Features
1. 7-inch industrial panel mount monitor
2. Aluminum alloy front panel adopt CNC tehnic
3. Adopt multi-touch capacitive / resistive touch / Ir touch
4. Industrial LCD panel, wide viewing angle, high nits, true color
5. Sturable rugged enclosure which is for harsh environment
Configurations
| LCD Panel Characteristics | Screen Size | 7’’ LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x600(V) | |||
| Aspect Ratio | 16:9 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | 1xUSB for touch use | ||
| HDMI | 1XHDMI | |||
| VGA | 1xVGA | |||
| DVI | optional | |||
| Mounting type | Front panel mount | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

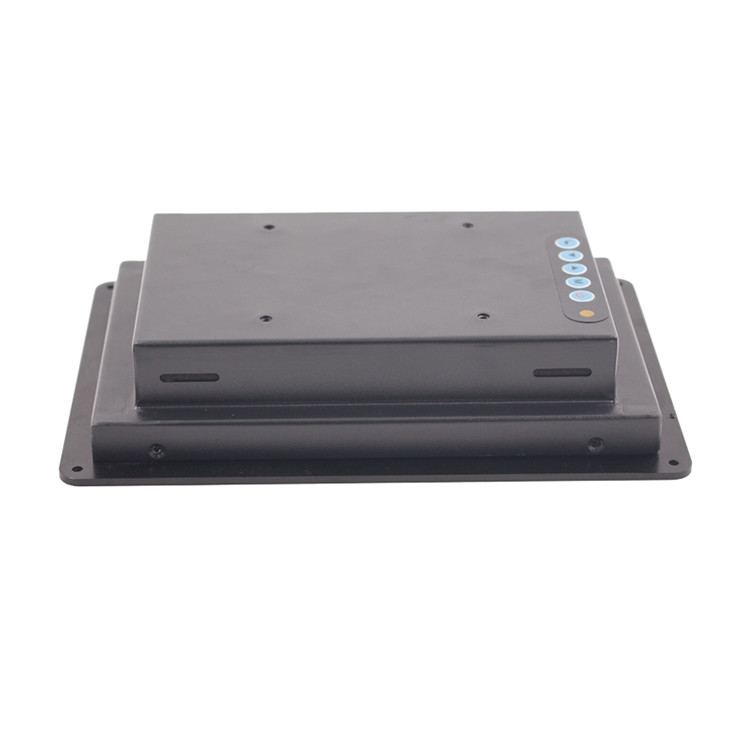

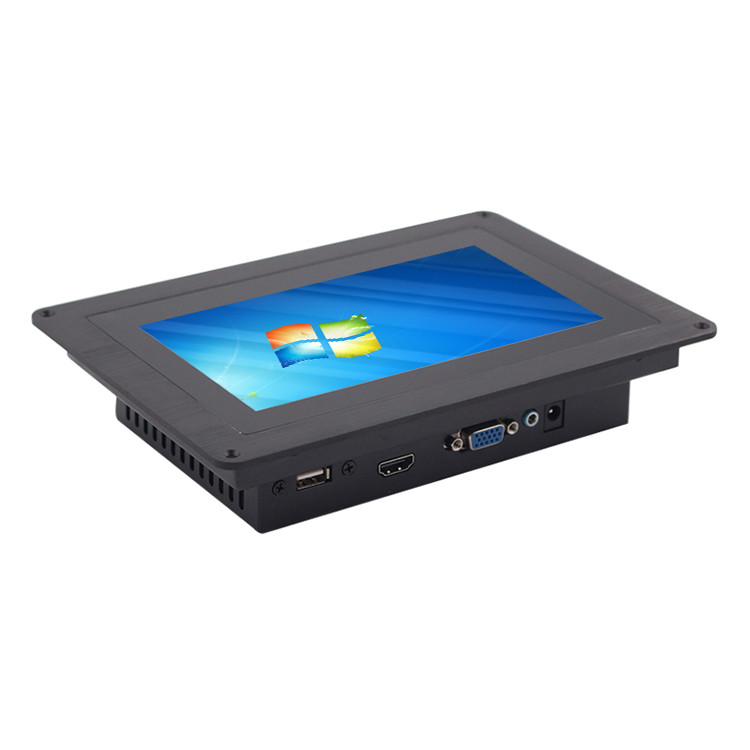

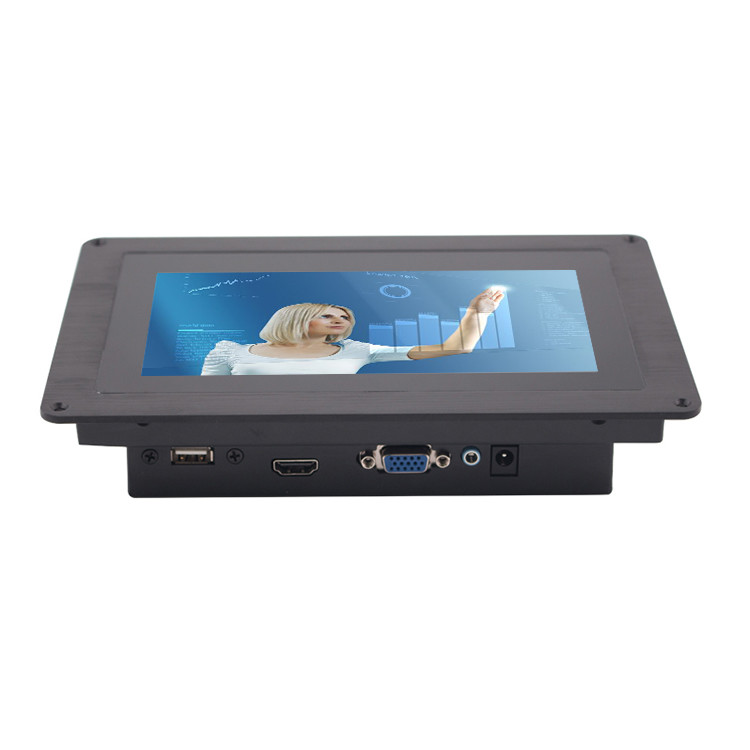

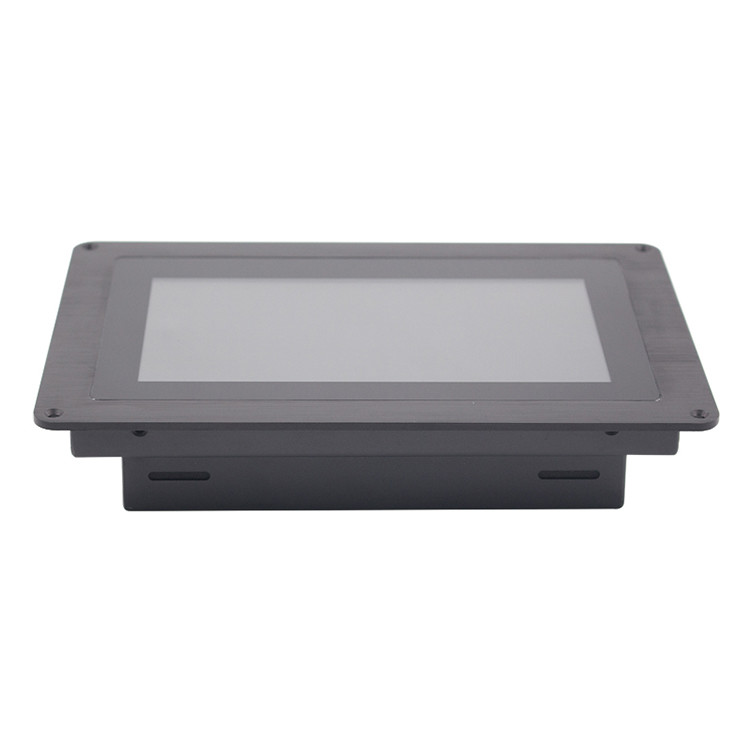

Detailed Image
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
