Multi Touch CE Open Frame LCD Monitor True Color

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND150M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 3kgs/pc, packing size: 41×15×35.5cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 15-inch Open Frame Lcd Monitor Brightness: 250nits
Resolution: 1024*768 Working Temperature: -20-70C
Material: Metal Warranty: 12months
Mount: Open Frame Color: Black / White / Slivery...etc
High Light:

CE Open Frame LCD Monitor

,

Multi Touch Open Frame LCD Monitor

,

CE multi touch monitor


Product Description

15'' DC 12V Open Frame Lcd Monitor For Express Delivery Locker

Features

1. 15-inch Open Frame monitor
2. Adopt multi-touch capacitive / Resistive / Ir touch as you need
3. Industrial LCD panel, wide viewing angle, high nits, true color
4. Sturable rugged enclosure which is for harsh environment



Configurations

LCD Panel Characteristics Screen Size 15-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB 1x USB for touch use
HDMI -------
VGA yes
DVI Yes
Function touchscreen
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Detailed Image

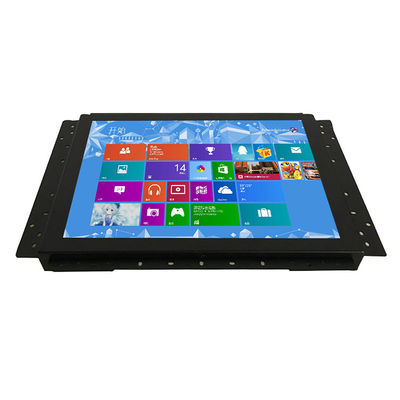

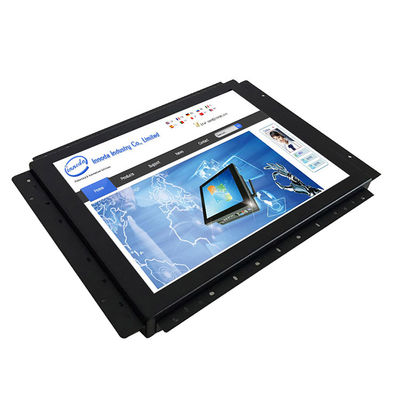

Multi Touch CE Open Frame LCD Monitor True Color 0Multi Touch CE Open Frame LCD Monitor True Color 1

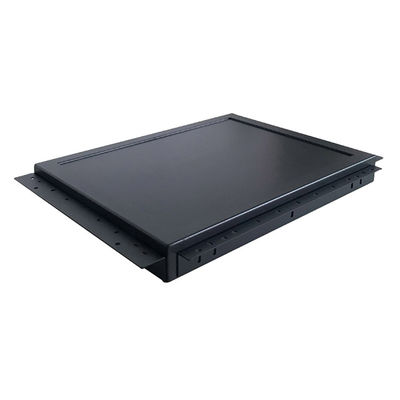

Multi Touch CE Open Frame LCD Monitor True Color 2

Application

Industrial machine

Cabinet

Automation system

Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

Multi Touch CE Open Frame LCD Monitor True Color 3
