19 Daylight Readable Lcd Monitor , IP67 Touch Screen Monitor Outdoor

1piece
MOQ
Negotiable
Price
19 Daylight Readable Lcd Monitor , IP67 Touch Screen Monitor Outdoor
Features Gallery Product Description Request A Quote
Features
Specifications
Type: 19'' Outdoor Lcd Display
Resolution: 1280*1024
Touch: Capacitive Touch Screen
IP Grade: Full IP67
Brightness: 1000cd/m2
Interface: USB / HDMI
Material: 1.5mm Stainless Steel
Working Temperature: -20-70C
Highlight:

19 Daylight Readable Lcd Monitor

,

IP67 Touch Screen Monitor Outdoor

,

IP67 Daylight Readable Lcd Monitor

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND190M
Payment & Shipping Terms
Packaging Details: 1pc/carton weight: 11kgs/pc, packing size: 50×14×44cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Product Description

1000nits Daylight Readable Outdoor Lcd Display With Full IP67 Waterproof

Features

1. Industrial grade Outdoor lcd display With multi-touch capacitive touchscreen
2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included

4. 1000nits for daylight readable
5. Durable 1.5mm Stainless steel frame
6. Wide working Temperature -20-70C
7.This steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to bacterial growth.



Configurations

LCD Panel Characteristics Screen Size 19-inch TFT/LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1280(H)x1024(V)
Aspect Ratio 4:3
Brightness 1000cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB 1x USB for touch use
HDMI yes
VGA -----
DVI ------
Function Fully sealed IP65 waterproof
1000nits brightness for sunlight read
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Stainless Steell(Aluminum/metal for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

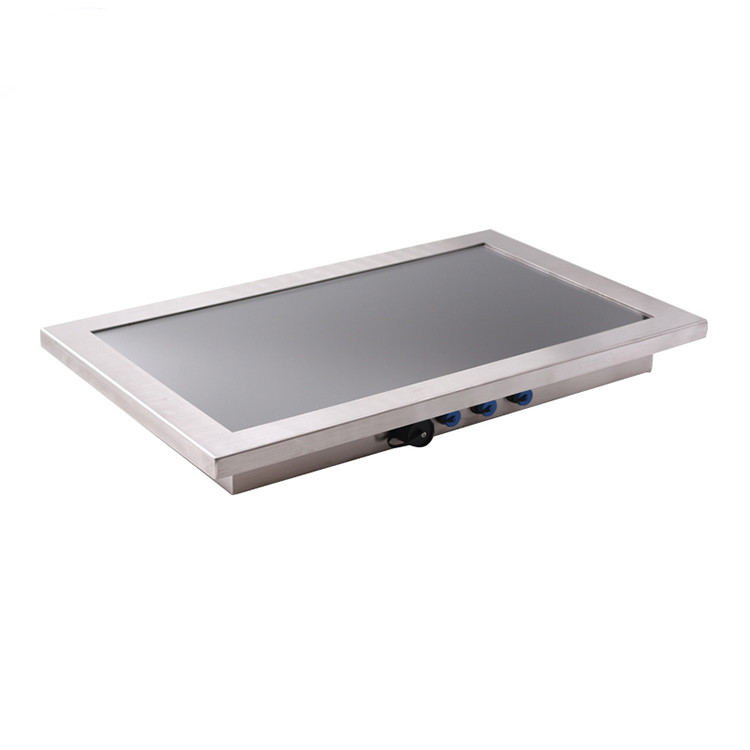

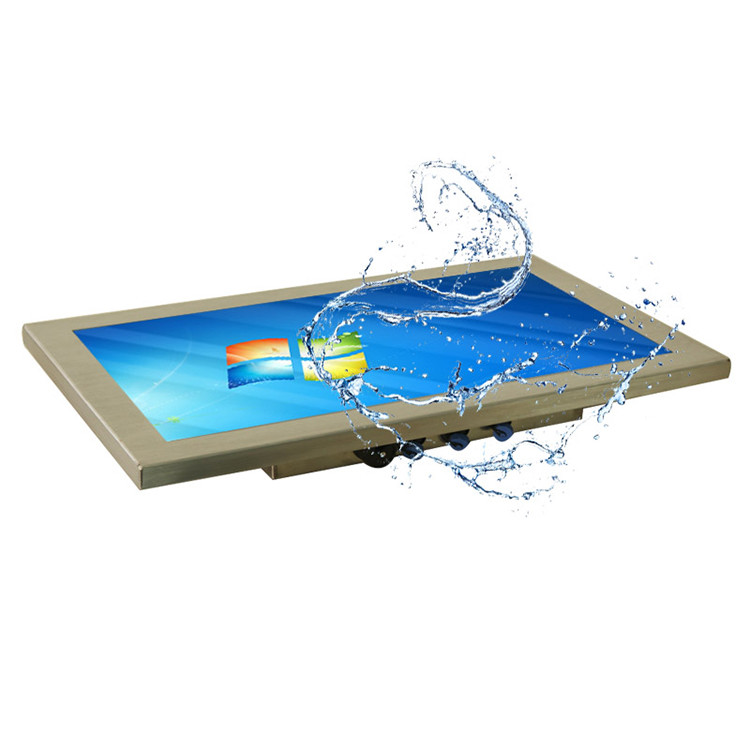

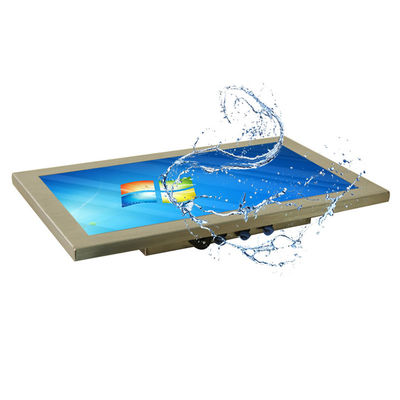

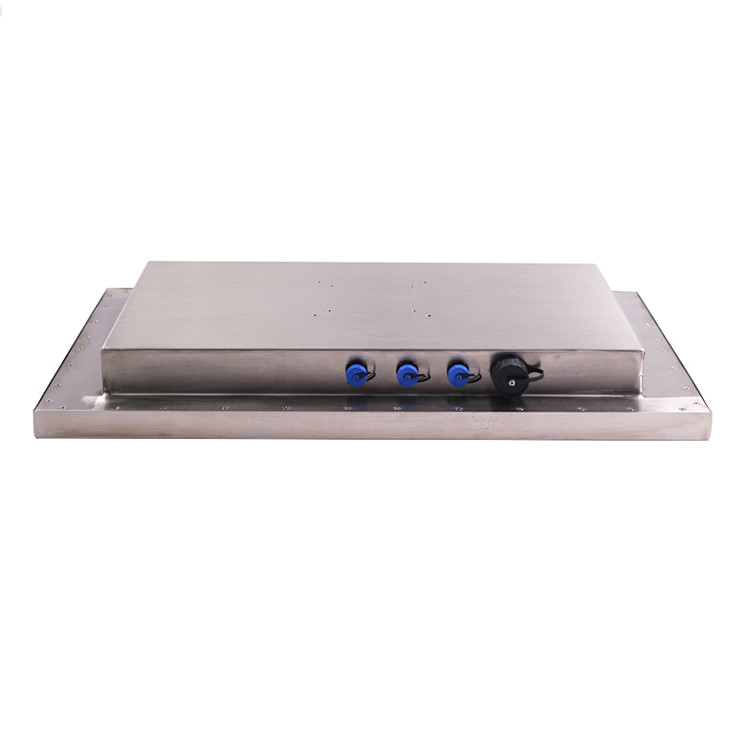

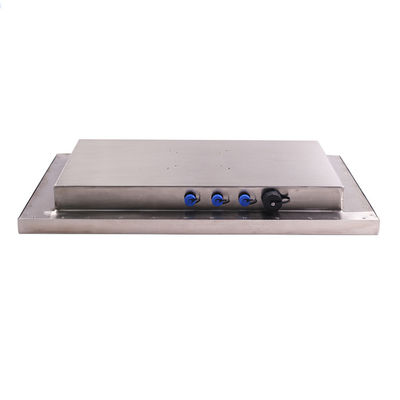

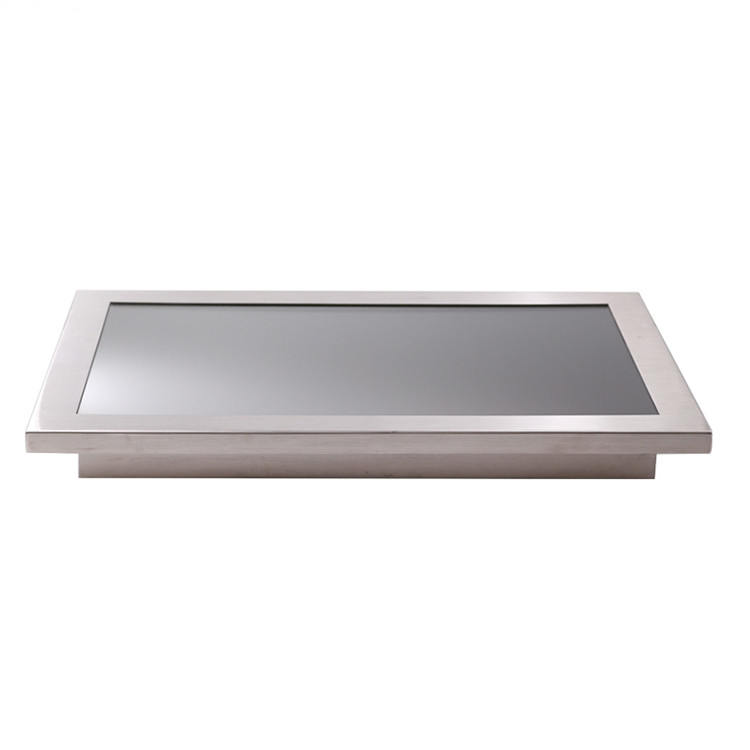

Detailed Image

19 Daylight Readable Lcd Monitor , IP67 Touch Screen Monitor Outdoor 019 Daylight Readable Lcd Monitor , IP67 Touch Screen Monitor Outdoor 1

19 Daylight Readable Lcd Monitor , IP67 Touch Screen Monitor Outdoor 2



Application

Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
Rugged Environment Application
Food & Beverage Processing Instrument

Boat

Slaughter house





19 Daylight Readable Lcd Monitor , IP67 Touch Screen Monitor Outdoor 3

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.


Welcome to ask for more information.
