Embedded Rockchip RK3288 Android Touch Panel PC 32G EMMC

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND070APC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 2.5kgs/pc, packing size: 27×22×6.6cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 7inch Android Tablet CPU: Rockchip RK3288
Resolution: 1024*600 Aspect Ratio: 16:9
COM: RS232 System: Android 6.0 / 7.0 / 8.0 OS
Working Temperature: -20-70C Material: Aluminum+Metal
High Light:

32G EMMC Android Touch Panel PC


RK3288 Android Touch Panel PC


RK3288 Embedded Touch Panel PC

Product Description

Embedded Aluminum Bezel Android Touch Pc With Phoenix Terminal RS232

1) CPU RK3288/ RK3399 / Freescale / Amlogic S922X optional
2) 7'' 10.4" 15" 17" 19"  22'' LCD panel
3) Capacitive touch, Resistive touch optional
4) Memory 2G 4G
5) 8G / 16G / 32G EMMC memory

6) Phoenix terminal RS232 port



Processor System CPU RK3288
Memory 2GB/4GB
Storage 16G EMMC(8G/16G/32G optional)
Operation System Android
LCD Panel Characteristics Screen Size 7’’ LcD Panel
Touchscreen Type Capacitive touch screen
Resolution 1024(H)x600(V)
Aspect Ratio 16:9
Brightness 500nits
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface PoE it support 802.3af and 802.3at.(Optional)
USB 2xUSB2.0
Function 8-36V wide voltage
Optional WIFI
4G modem
AG/ AR glass
Brightness control button
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum+metal
Color Black/Silver/White
Mounting Wall mount/ Panel mount

Detailed Image

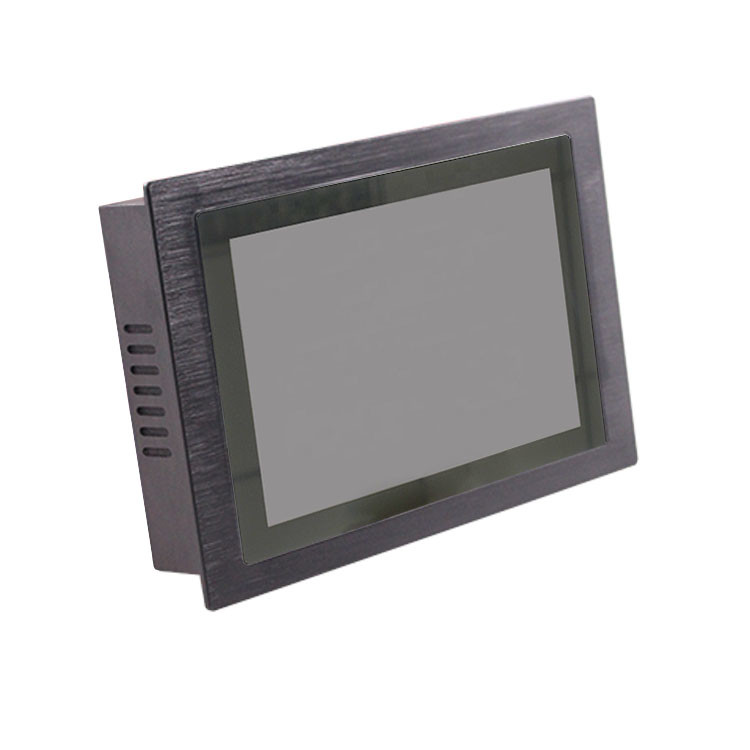

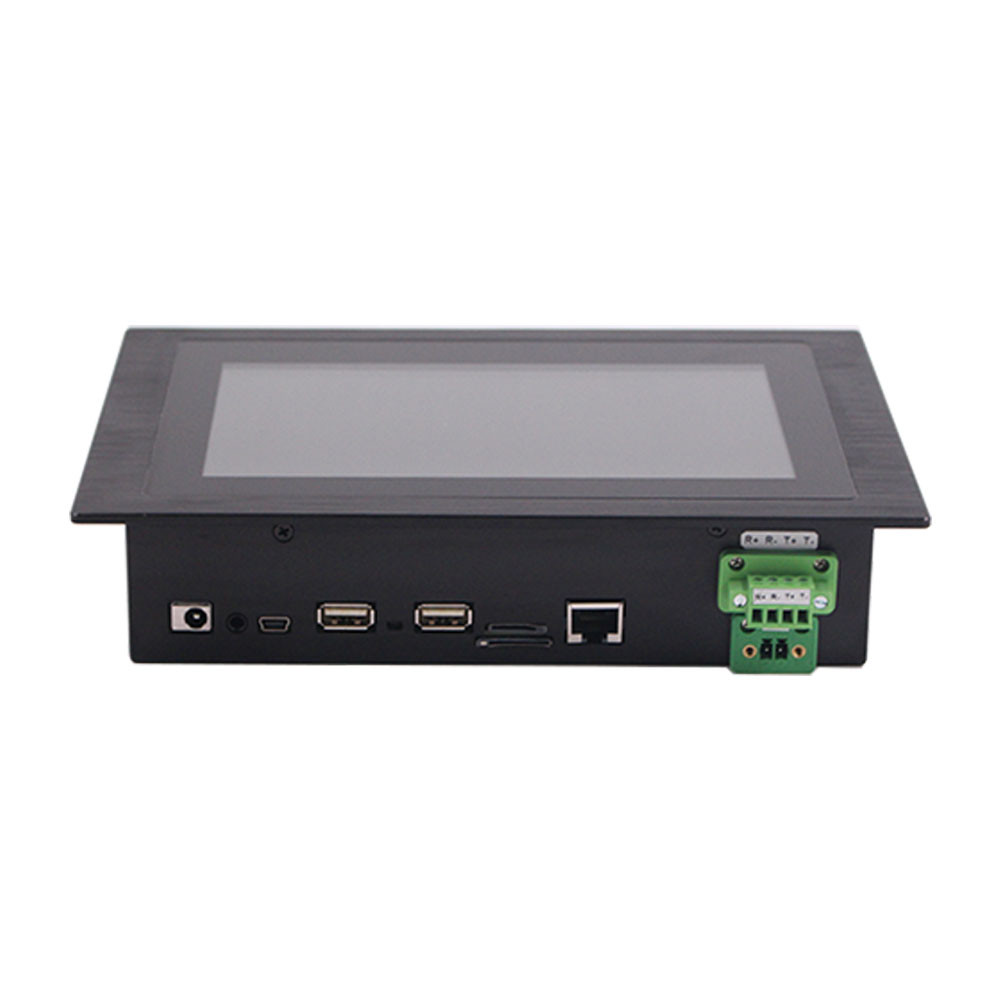

Embedded Rockchip RK3288 Android Touch Panel PC 32G EMMC 0Embedded Rockchip RK3288 Android Touch Panel PC 32G EMMC 1

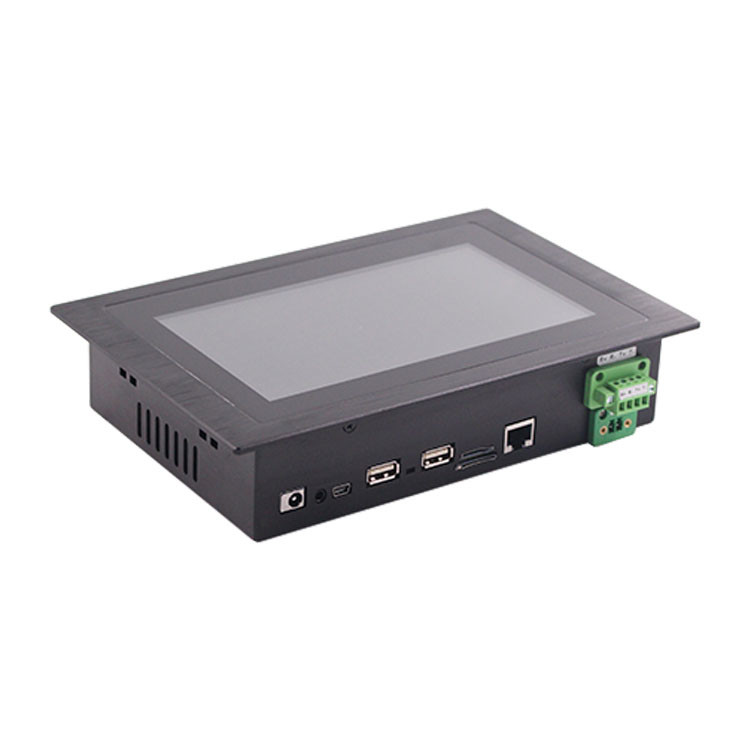

Embedded Rockchip RK3288 Android Touch Panel PC 32G EMMC 2

1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference

Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

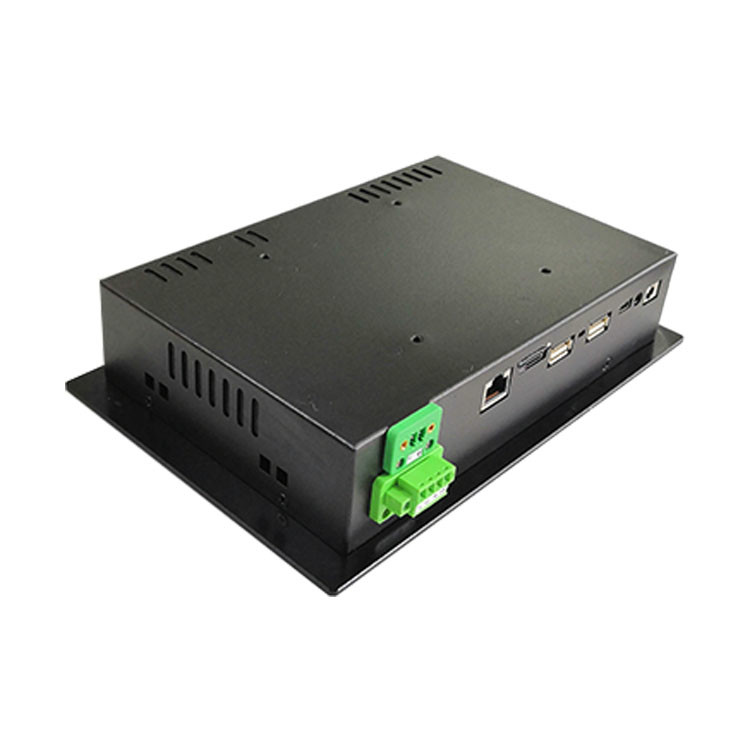

Embedded Rockchip RK3288 Android Touch Panel PC 32G EMMC 3Embedded Rockchip RK3288 Android Touch Panel PC 32G EMMC 4
