Industrial 500cd/M2 Panel Pc Touch Screen With 5MP Webcam

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND070PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4.5kgs/pc, packing size: 31×31×11cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 7'' Industrial Touch Panel Pc With NFC Reader Resolution: 1024*600
Touchscreen: PCAP Touchscreen CPU: Intel Quad-core J1900 /I3 / I5 / I7
Camera: 5MP NFC Reader: Built-in
Warranty: 12 Months Material: Metal
High Light:

500cd/M2 Panel Pc Touch Screen

,

5MP Webcam Panel Pc Touch Screen

,

5MP Webcam Touch Screen Panel Pc


Product Description

500cd/M2 Industrial Touch Panel Pc With NFC Reader / Webcam


Features
1. 7-inch Industrial panel with 1024*600 resolution

2. 10points PCAP touch screen

3. Quad-core Intel J1900

4. NFC Reader

5. 5MP webcam

6. Fanless

7. 2D barcode scanner

8. Interface: 2*RJ45/ VGA/ COM



Configuration

Processor System CPU Intel Quad-core J1900/2.0GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 7’’ Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1024(H)x600(V)
Aspect Ratio 16:9
Brightness 500cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1*RS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
HDMI yes
VGA 1xVGA
Function 5MP camera
NFC reader
QR code scanner
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Metal frame
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC


Detailed Image

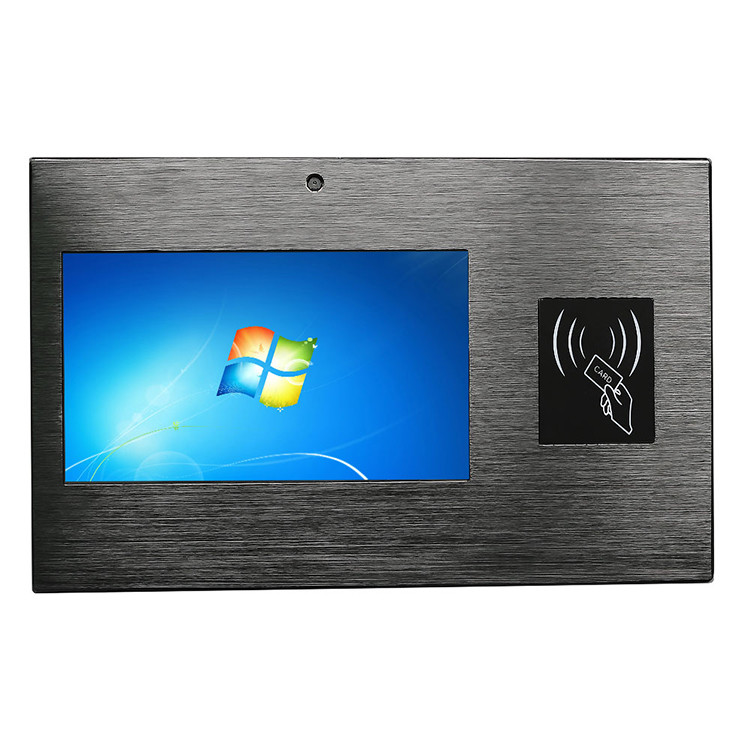

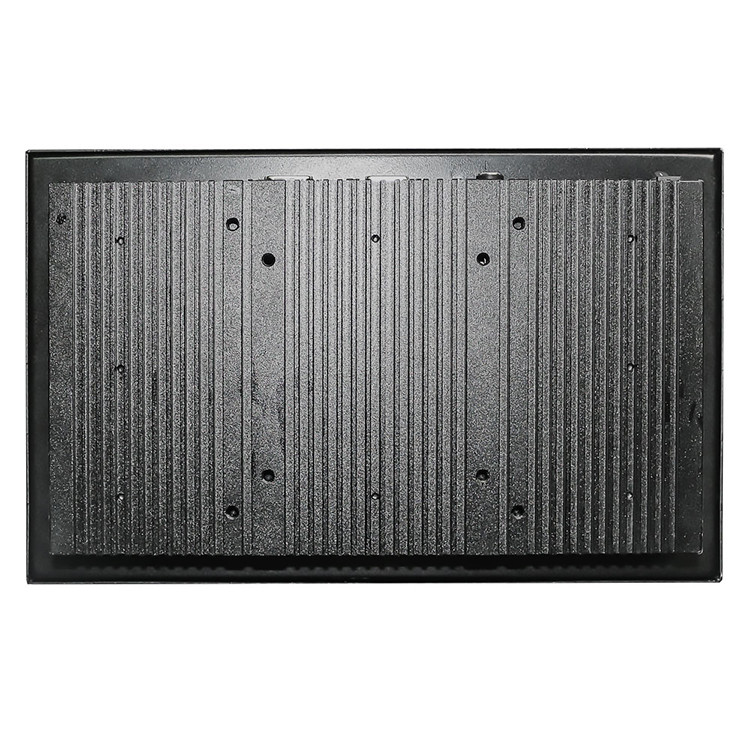

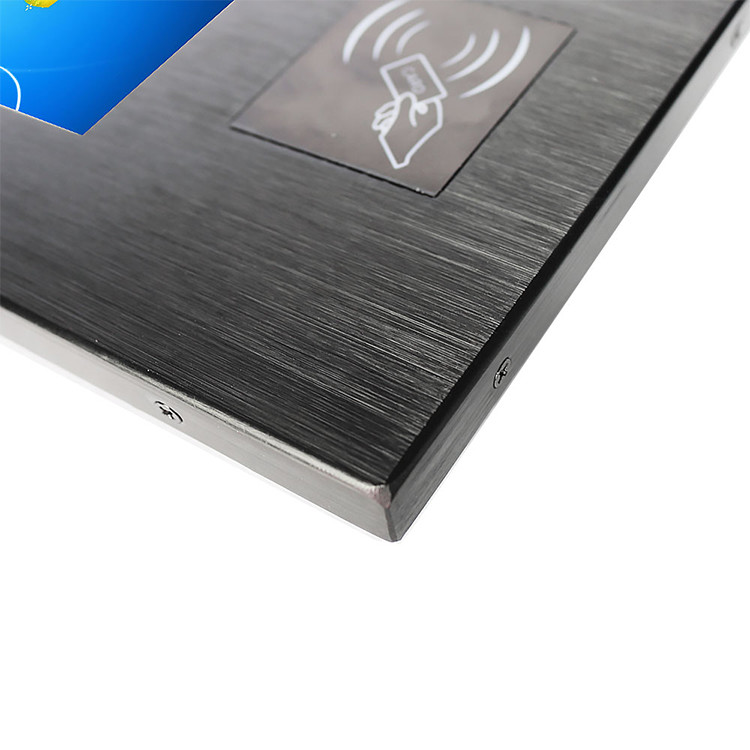

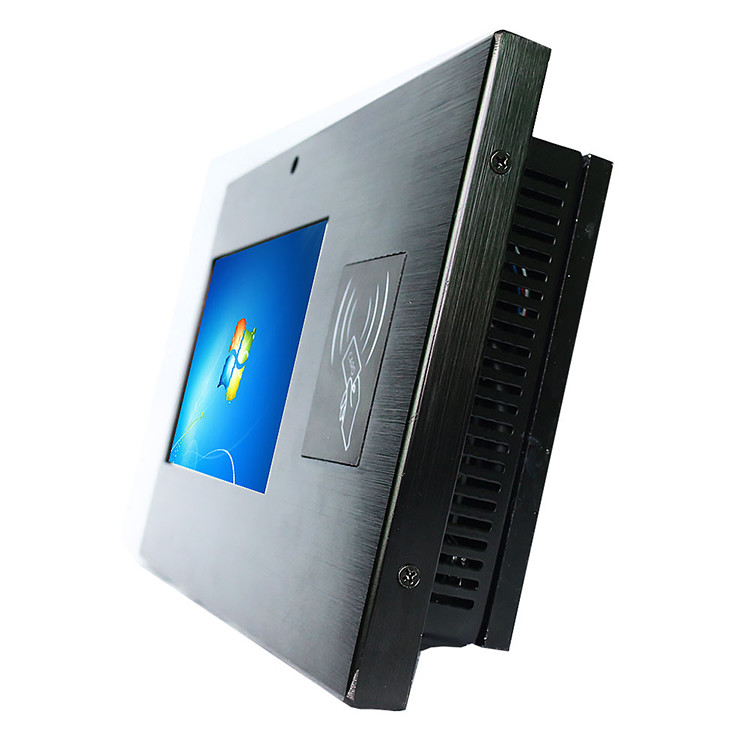

Industrial 500cd/M2 Panel Pc Touch Screen With 5MP Webcam 0Industrial 500cd/M2 Panel Pc Touch Screen With 5MP Webcam 1



Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference



Our Advantage
1. Experience

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least

13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,

sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

5. No MOQ limited

We can provide sample first to test it for the big project.

Industrial 500cd/M2 Panel Pc Touch Screen With 5MP Webcam 2


 Any interested, welcome to ask for more information
