Fully Enclosed 9 Inch Embedded Touch Panel PC GPIO / WIFI
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND190PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 5.5kgs/pc, packing size: 50×14×44cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | 19'' Industrial Rugged Panel Pc | Brightness Control: | Yes |
|---|---|---|---|
| Aspect Ratio: | 4:3 | Touchscreen: | PCAP Touch Screen |
| CPU: | Intel Quad-core J1900 | Interface: | 4*COm, 2*LAN, USB |
| Working Temperature: | -20-70C | Material: | Aluminum+Metal |
| High Light: | 9 Inch Embedded Touch Panel PC,Fully enclosed Embedded Touch Panel PC |
||
Product Description
Thin Front Aluminum Bezel 9-Inch Embedded Touch Pc With GPIO / WIFI
Features
1. Fully enclosed design, the whole PC is dustproof.
2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Automatic brightness control
8. GPIO interface
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | Windows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 19'' Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1280(H)x1024(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 4*RS232(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| HDMI | yes | ||
| VGA | 1xVGA | ||
| Function | GPIO | ||
| WIFI | |||
| Automatic Brightness control | |||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum alloy+metal | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

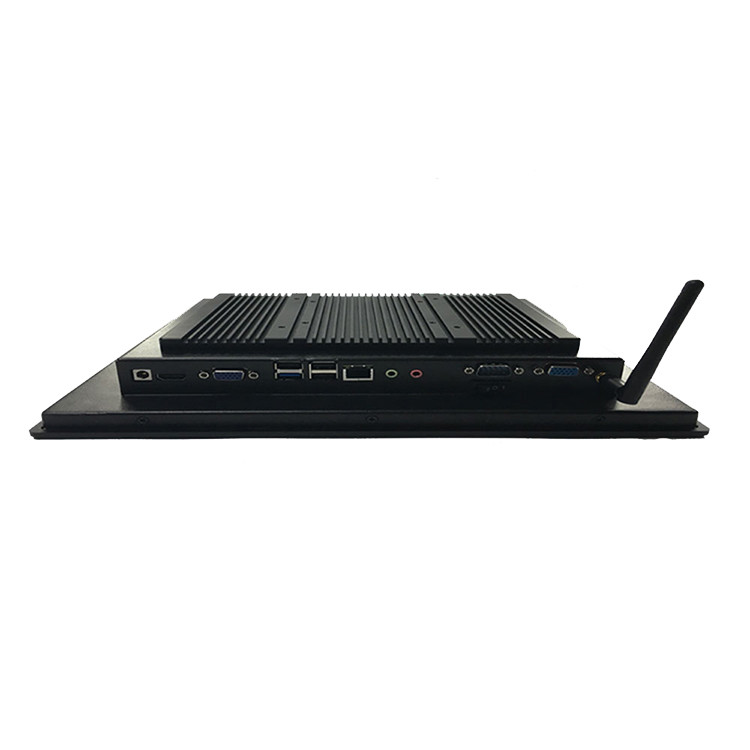

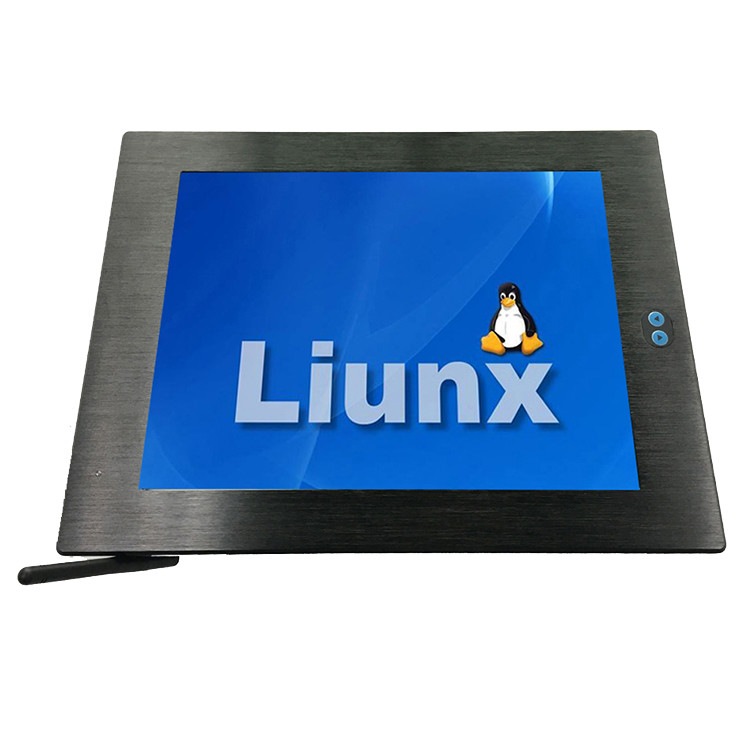

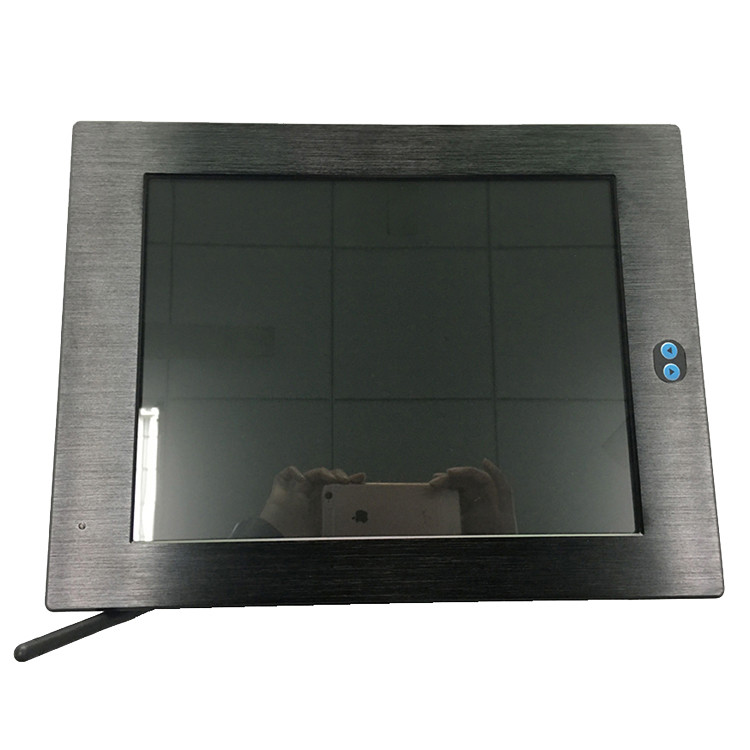

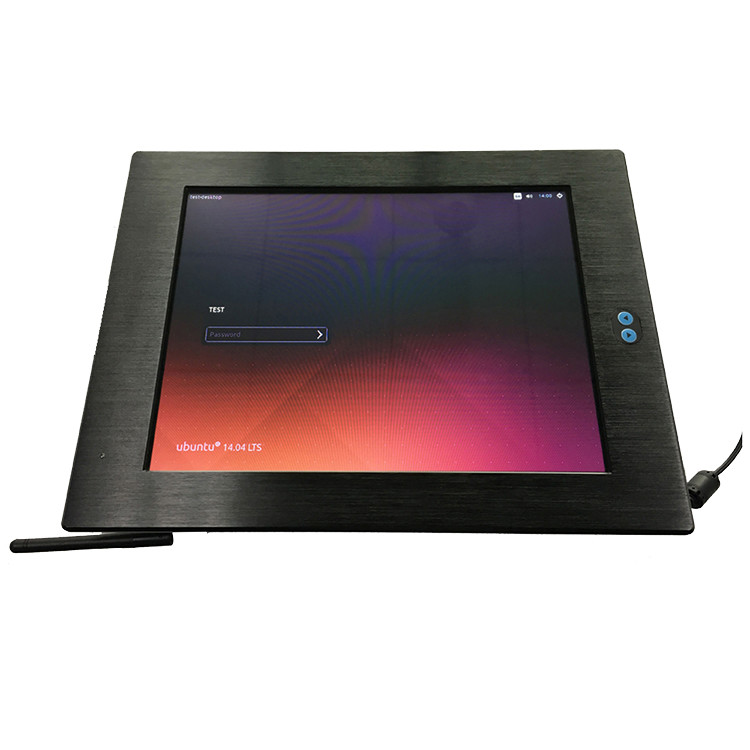

Detailed Image
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
