VGA Embedded Touch Monitor , Industrial Panel Monitor 12V DC

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND101M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 3kgs/pc, packing size: 31×10.5× 31cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 10-inch Industrial Panel Mount Monitor Resolution: 1280*800
I/O: VGA, HDMI,DVI Color: Black / White / Slivery...etc
System: Support Widnows/Android/ Linux Material: Aluminum Profile
Mounting: Embedded / VESA Warranty: 1 Year
High Light:

VGA Embedded Touch Monitor

,

12V DC Industrial Panel Monitor

,

12V DC Embedded Touch Monitor


Product Description

True Flat 10-Inch Embedded Industrial Panel Mount Monitor 12V DC

Features

1. 10inch industrial Lcd Panel Monitor

2. 16:9 Wide screen 1280*800 resolution

3. USB HDMI VGA interface

4. Support windows / linux / android etc

5. 12months warranty

6. CE, RoHS compliance



Configuration

LCD Panel Characteristics Screen Size 10.1’’ LCD Panel
Touchscreen Type Capacitive touch screen
Resolution 1280(H)x800(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB 1xUSB for touch use
HDMI 1XHDMI
VGA Yes
DVI optional
Function Touch
Mounting type VESA
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

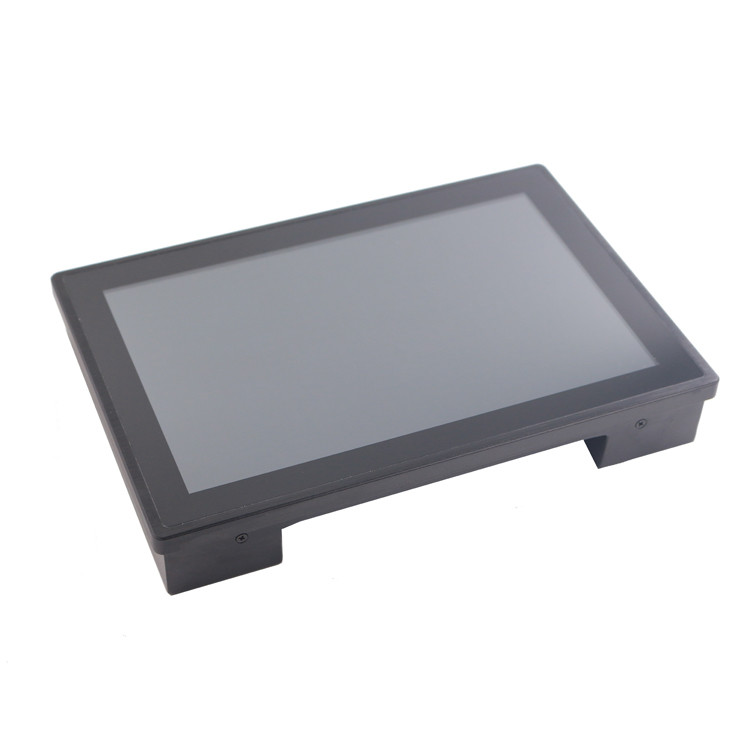

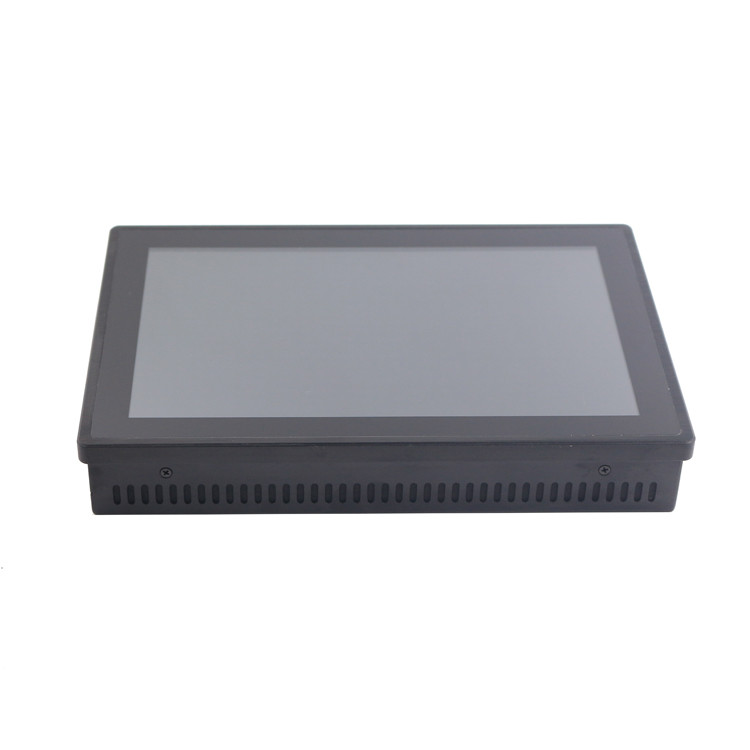

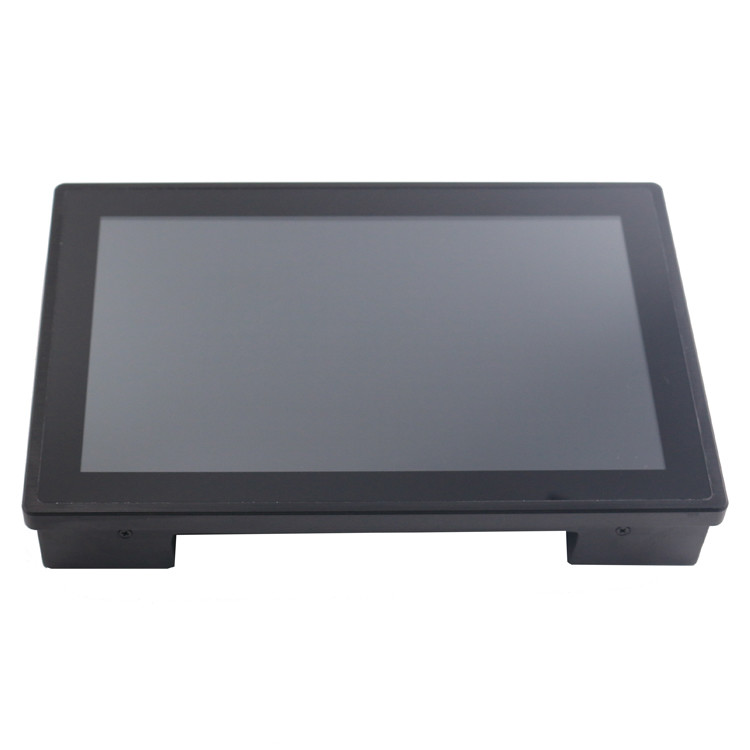

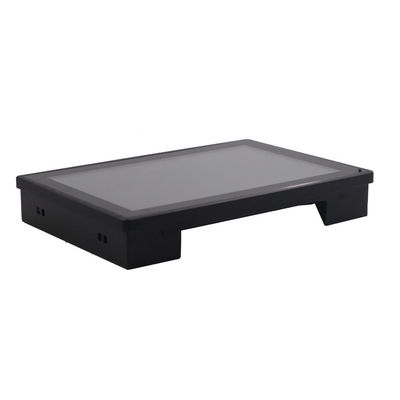

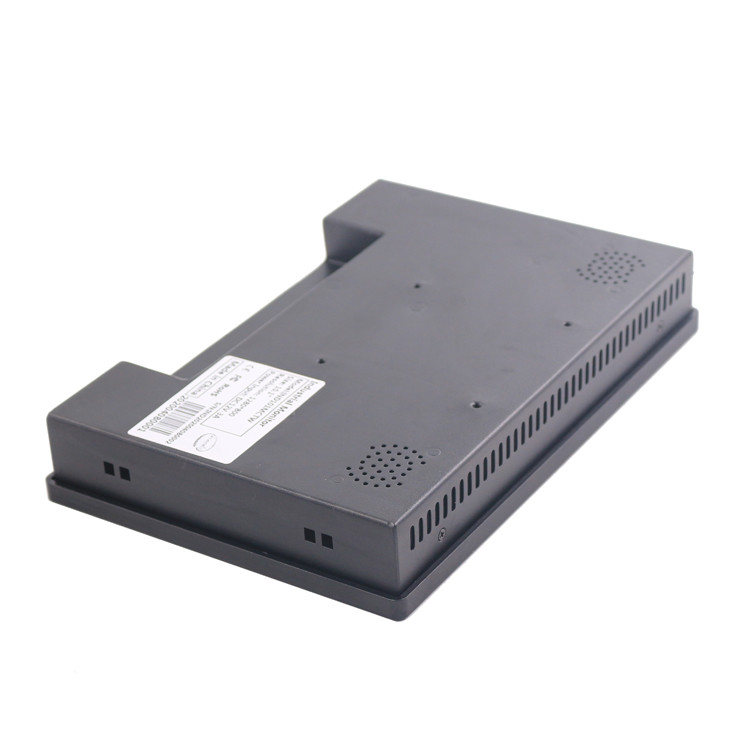

Detailed Image

VGA Embedded Touch Monitor , Industrial Panel Monitor 12V DC 0VGA Embedded Touch Monitor , Industrial Panel Monitor 12V DC 1

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness

8-36V wide working voltage



VGA Embedded Touch Monitor , Industrial Panel Monitor 12V DC 2



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

VGA Embedded Touch Monitor , Industrial Panel Monitor 12V DC 3
