IR Touch Industrial Panel Mount Monitor DVI Port

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND121M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 3.5kgs/pc, packing size: 41.5×15× 35.5cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 12'' Front Panel Mount Monitor Resolution: 1024*768
DVI Port: Yes I/O: VGA, HDMI
Color: Black / White / Slivery...etc System: Support Widnows/Android/ Linux
Material: Metal Warranty: 1 Year
High Light:

DVI port Industrial Panel Mount Monitor

,

IR touch Industrial Panel Mount Monitor

,

DVI Port ir touch screen monitor


Product Description

2MM Front Metal Bezel Computer Monitor Ir Touch Panel Mount Monitor

Features

- Panel Mount LCD 12″ Industrial Grade
- Touch Screen Standard (Capacitive or Resistive or Tempered glass)
- 250 Nits of Brightness
- VGA,DVI, HDMI, USB inputs
- CE, FCC. RoHS Compliance
- 1 Year Warranty



Configuration

LCD Panel Characteristics Screen Size 12.1’’ LCD Panel
Touchscreen Type IR touch screen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB --------
HDMI 1XHDMI
VGA Yes
DVI Yes
Function IR touch
Mounting type VESA
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Detailed Image

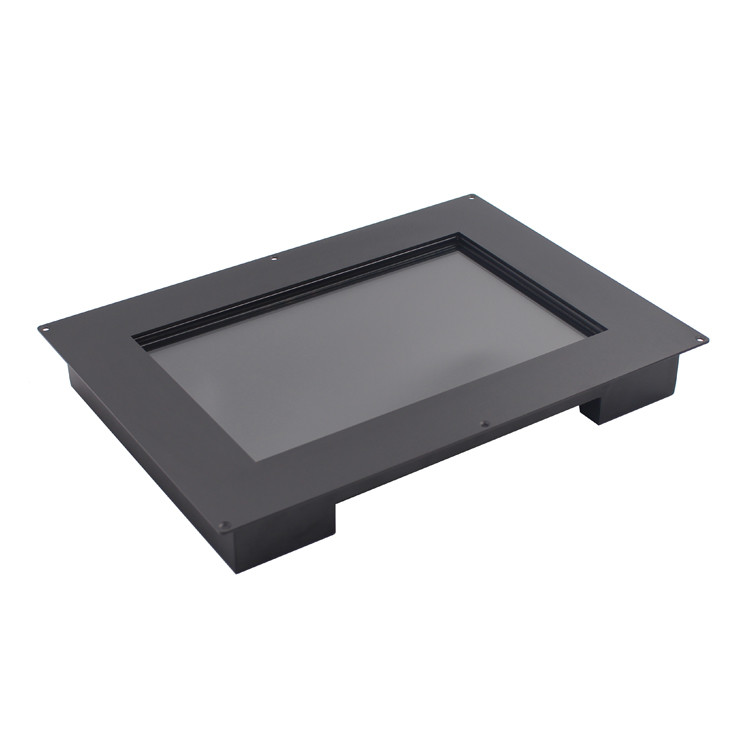

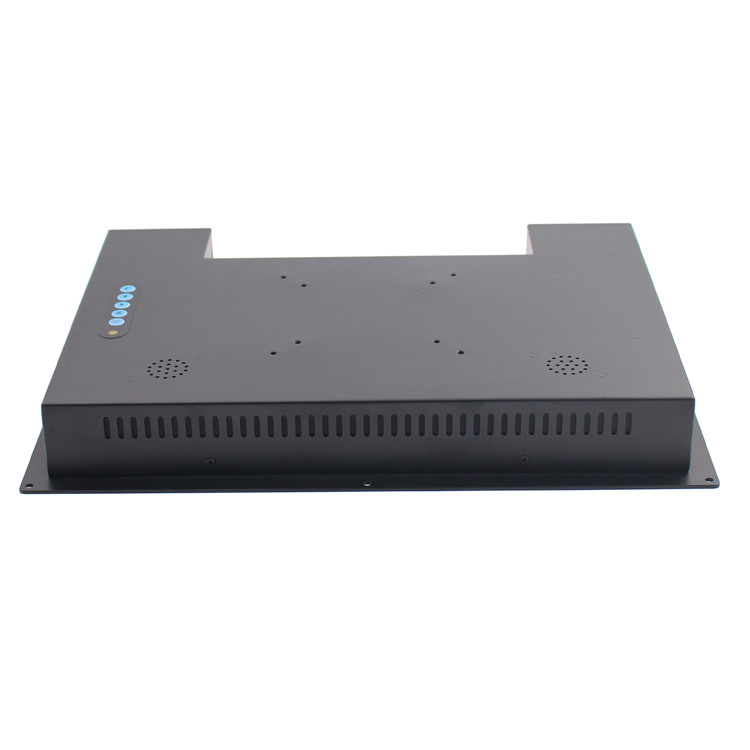

IR Touch Industrial Panel Mount Monitor DVI Port 0IR Touch Industrial Panel Mount Monitor DVI Port 1

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness

8-36V wide working voltage

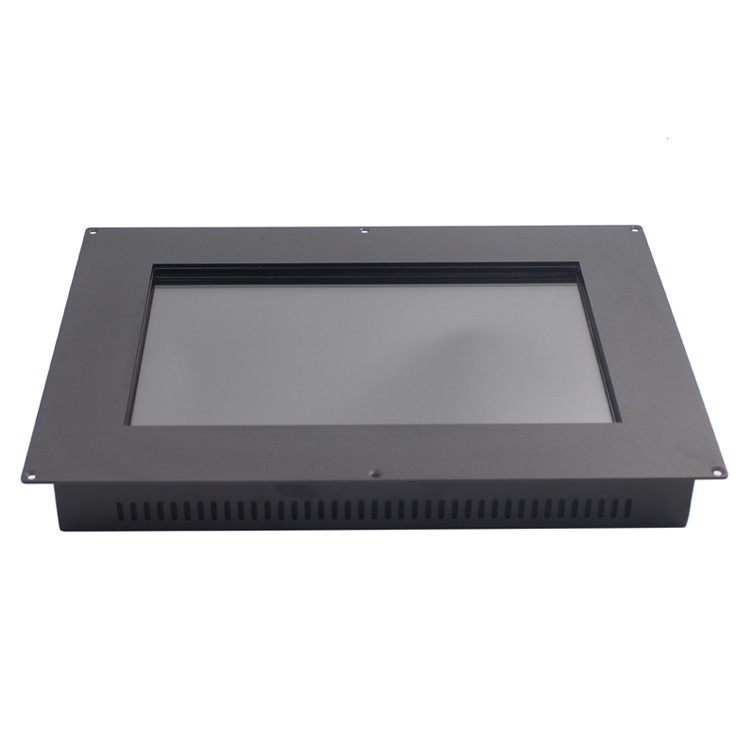

IR Touch Industrial Panel Mount Monitor DVI Port 2



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

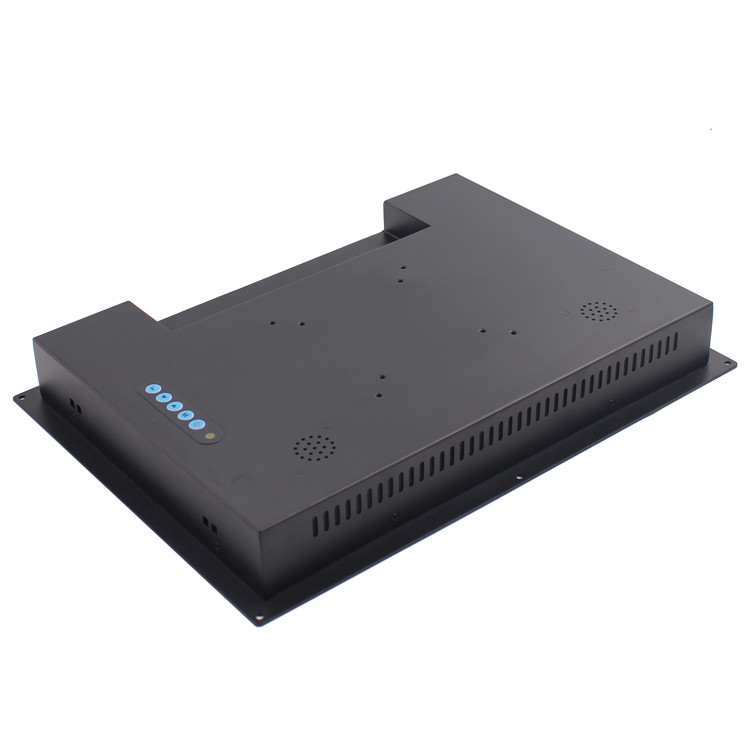

IR Touch Industrial Panel Mount Monitor DVI Port 3



Welcome to ask for more information
