Features
1. 15inch industrial grade panel, 4:3 aspect ratio
2. Sensistive 10points capacitive touchscreen
3. 24V DC wide voltage, which can work for car / machine
4. Android 6.0 /7.0/8.0/9.0 Os
5. Durable brushed aluminum bezel with good cooling
Configuration
| Processor System | CPU | RK3399 | |
| Memory | 2GB/4GB | ||
| Storage | 16G EMMC(8G/16G/32G optional) | ||
| Operation System | Android | ||
| LCD Panel Characteristics | Screen Size | 15-inch Lcd Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1920(H)x1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250nits | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | PoE | ---- | |
| USB | 2xUSB2.0 | ||
| LAN | RJ45 as PoE power supply | ||
| HDMI | ------ | ||
| Function | 24V DC wide voltage | ||
| Optional | 5MP front webcam | ||
| WIFI | |||
| RFID reader | |||
| 4G modem | |||
| Printer | |||
| waterproof | |||
| Brightness control button | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | metal | |
| Color | Black/Silver/White | ||
| Mounting | Wall mount/ Panel mount | ||

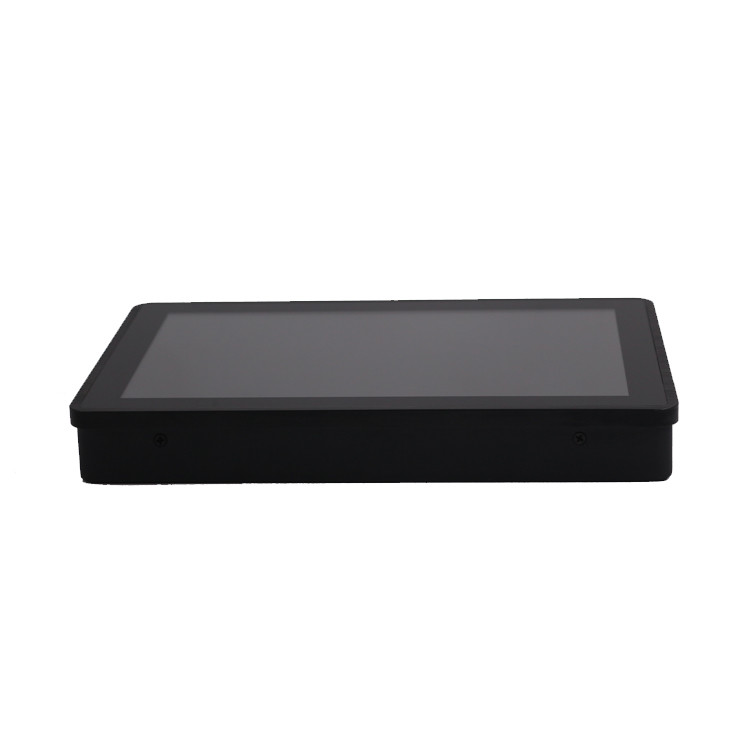

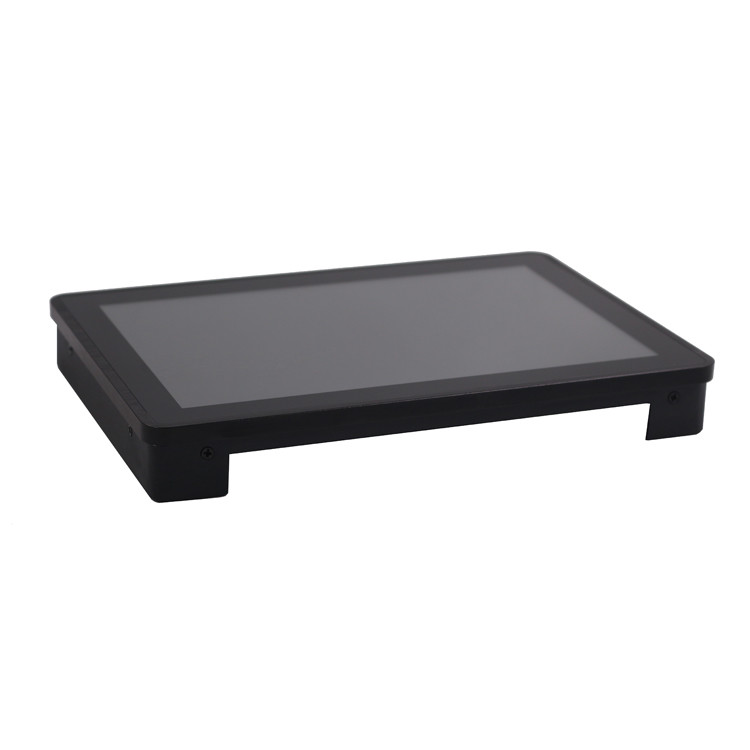

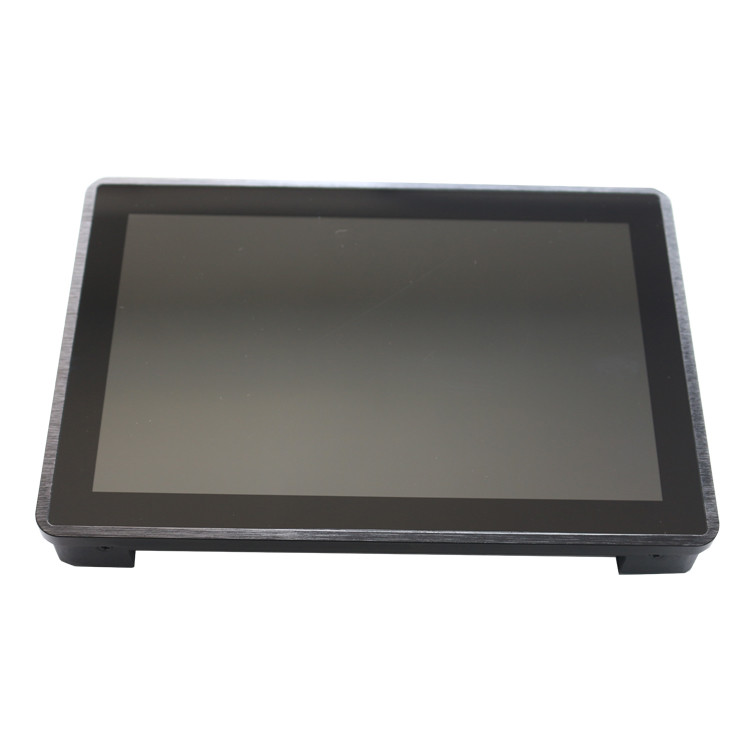

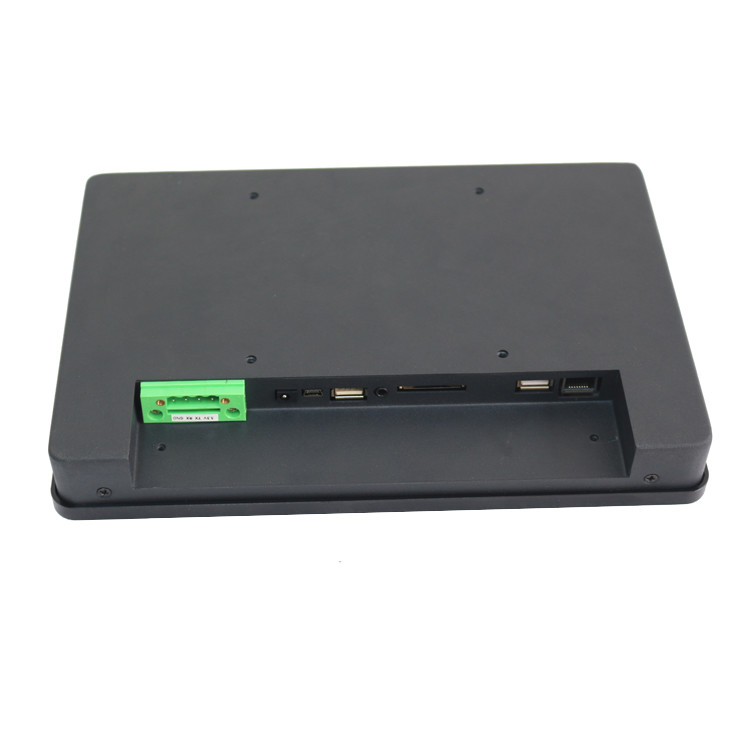

Detailed Image
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
