Features
1. 8inch Industrial Touch Panel pc with 1024*768 resolution
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. 5*USB port, power button on front panel
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 8'' LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | ------- | |
| USB | 5xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| VGA | ------ | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

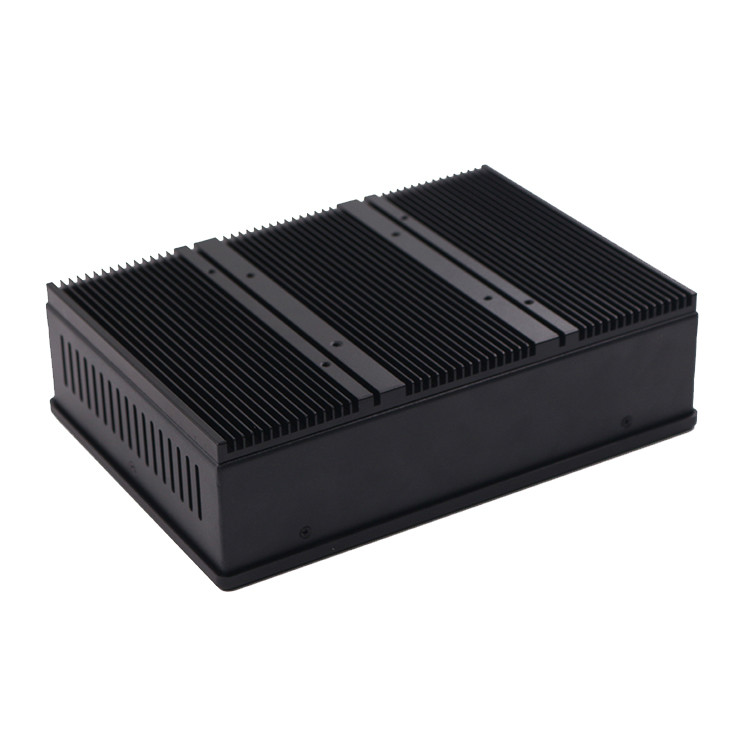

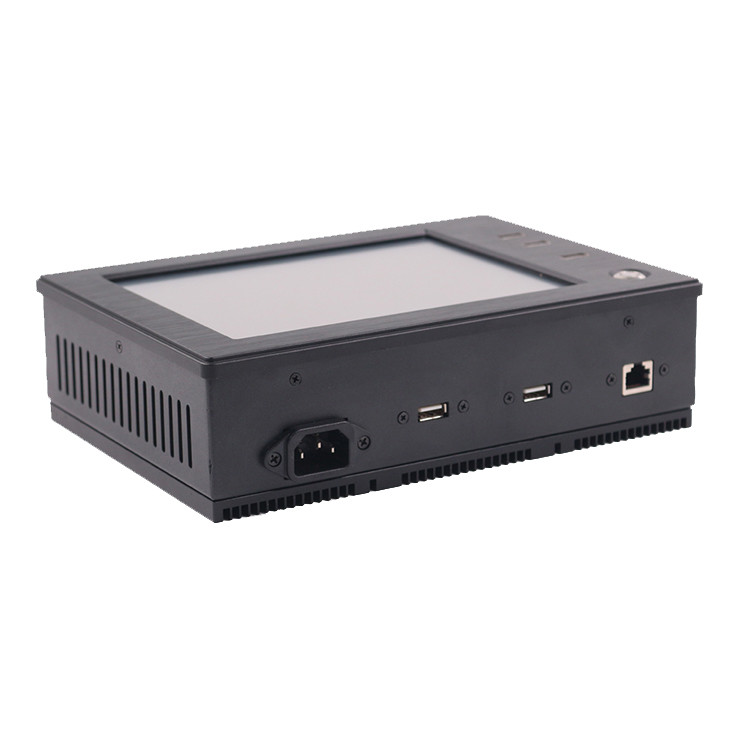

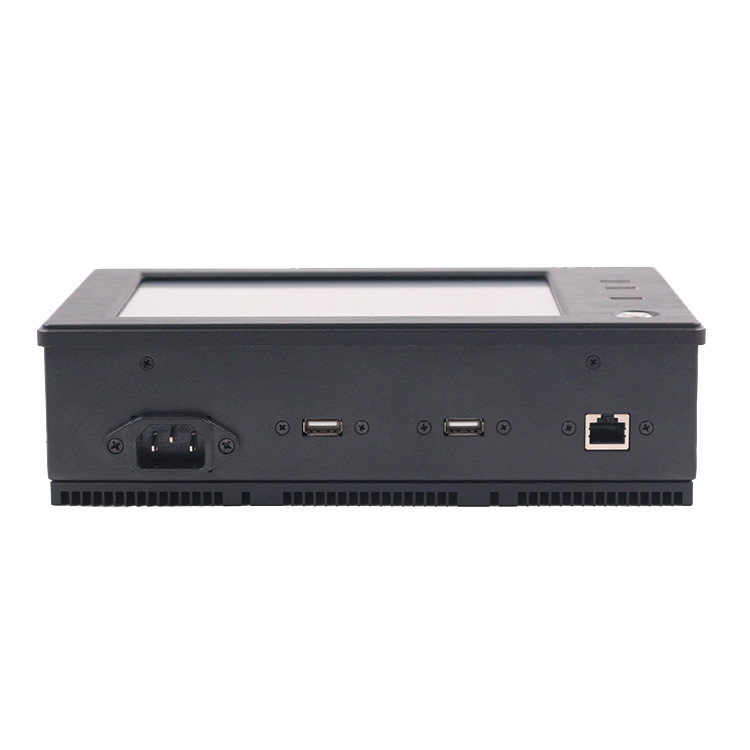

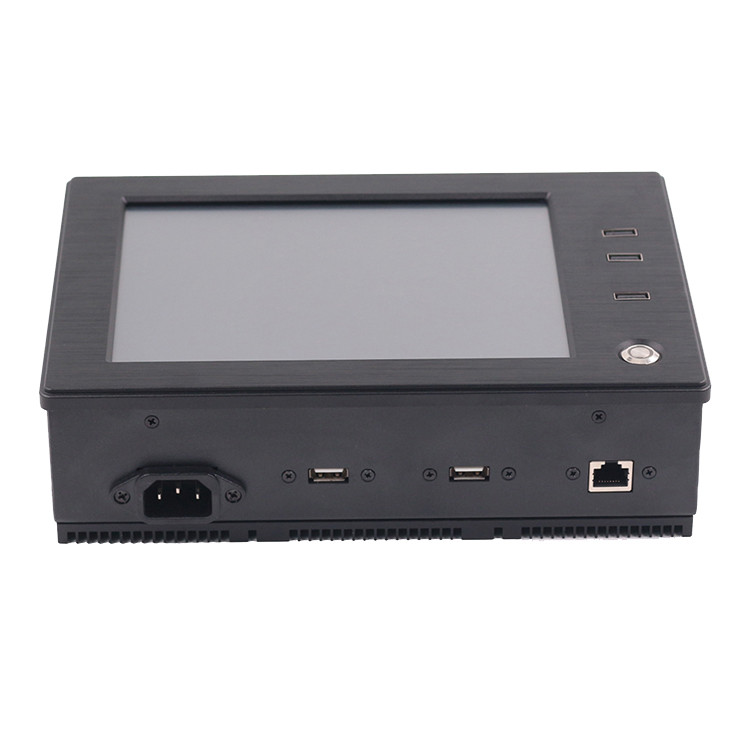

Detailed Image
Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
