Features
1. 15" LCD, 1024x 768 High Resolution.
2. fanless CPU, Intel® Core I5-4200U/1.6GHz
3. 4G RAM,64G SSD.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt 10points capacitive touch screen, high precision, durable, anti-interference
6. High performance motherboard, 7x24 continuous operation. with 2×USB 2.0, 2×USB 3.0, 2 x COM
RS232,1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC I/O Interface.
7. Aluminum alloy ,front panel adopt CNC craft
Configuration
|
Processor System |
CPU |
Intel Core I5-4200U/1.6 GHz |
|
|
Memory |
4GB (up to 8G) |
||
|
Storage |
64G SSD(up to 1TB) |
||
|
Operation System |
WIndows 7/8/10 OS(trial version) |
||
|
LCD Panel Characteristics |
Screen Size |
15'' LCD Panel |
|
|
Touchscreen Type |
Capacitive touch screen |
||
|
Resolution |
1024(H)x768(V) |
||
|
Aspect Ratio |
4:3 |
||
|
Brightness |
250cd/m2 |
||
|
Contrast Ratio |
500:1 |
||
|
Response Time |
10 msec |
||
|
I/O Interface |
COM |
2xCOM RS232 RS485 |
|
|
USB |
4xUSB |
||
|
LAN |
1xRJ45, 10/100/1000 Mbps |
||
|
VGA |
------ |
||
|
Optional |
WIFI |
||
|
8-36V wide range voltage |
|||
|
Brightness control button |
|||
|
1000nits High Brightness for sunlight readable |
|||
|
Front waterproof / Full sealed Waterproof |
|||
|
Power Supply |
Single 12 V DC power input, Max 18W Power Consumption |
||
|
Accessories |
8A Power Adapter with cable |
||
|
Working Temperature |
-20~70° C |
||
|
Other Information |
Material |
Aluminum+Metal frame |
|
|
Color |
Black/Silver/White |
||
|
Mounting |
VESA mount / Embedded |
||

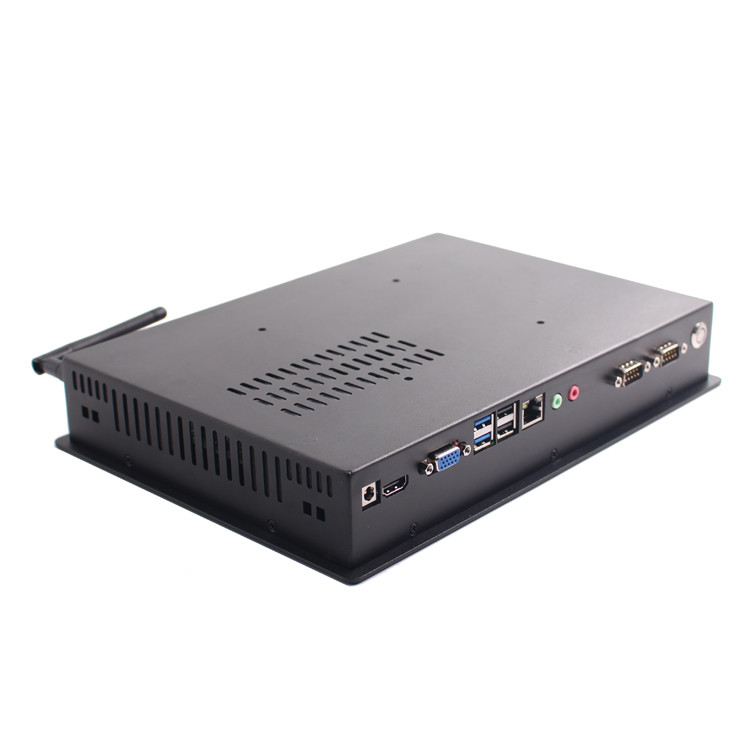

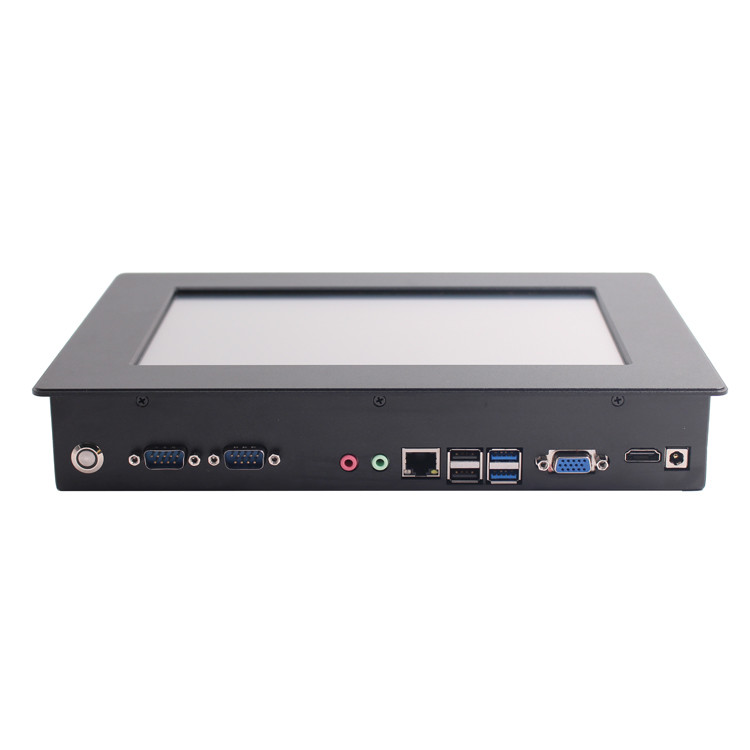

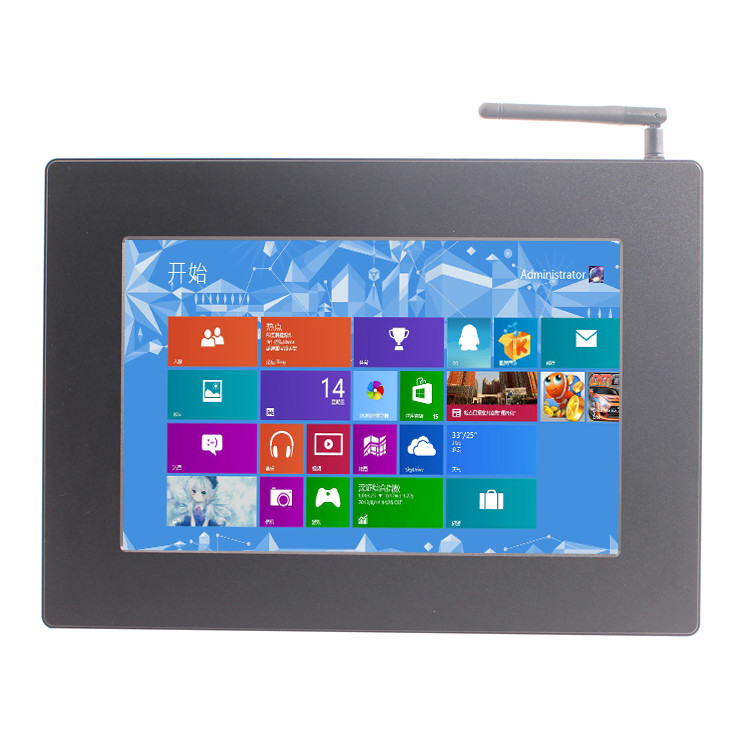

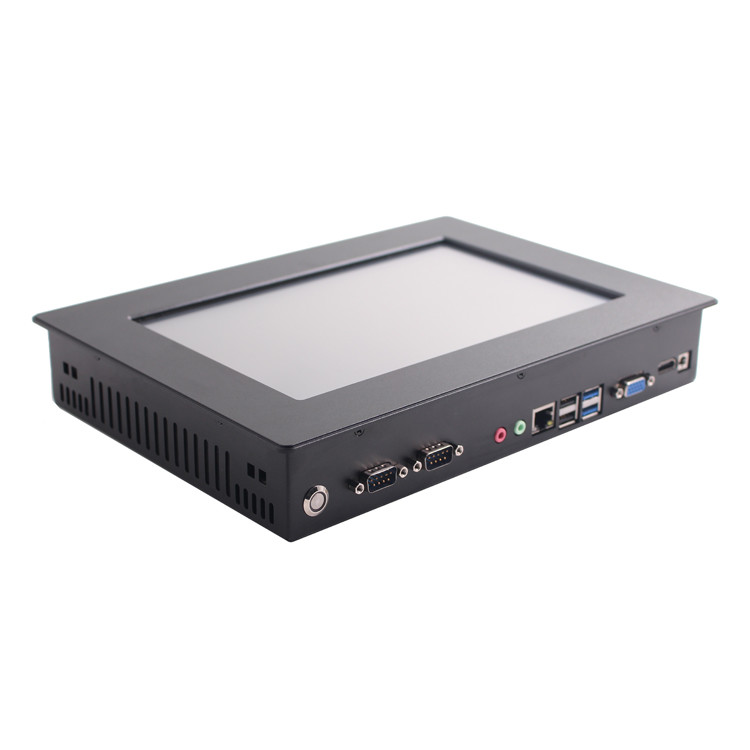

Detailed Image
15 inch Industrial Touch Panel PC Applications
Assembly Manufacturing
Automation
Data Acquisition
Interactive Kiosk
SCADA HMI
Logistics & Transportation
Building Automation
Energy Industry
Radiograph Room (X-Ray)
Healthcare
Signage Systems
Entertainment
production line
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
