Features
1. 8inch fanless Panel pc With multi-touch capacitive touchscreen,cover with 2mm tempered glass for vandalproof
2. 1023*768 resolution Industrial grade lcd panel
3. High performance motherboard, 7x24 continuous operation
4. Built-in 36V Wide Range Voltage , WIFI
5. GPIO built-in
6. Big heat sink on the back for heat dissipation
Configuration
| Processor System | CPU | Intel Core I3-4025U/1.6 GHz | |
| Memory | 4GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 8’’ LCD Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 350cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 1*COM(RS232/ RS485 /RS422) | |
| USB | 3xUSB2.0, 1xUSB3.0 | ||
| LAN | 4xRJ45, 10/100/1000 Mbps | ||
| HDMI | 1 x HDMI | ||
| VGA | 1x VGA | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| GPIO | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

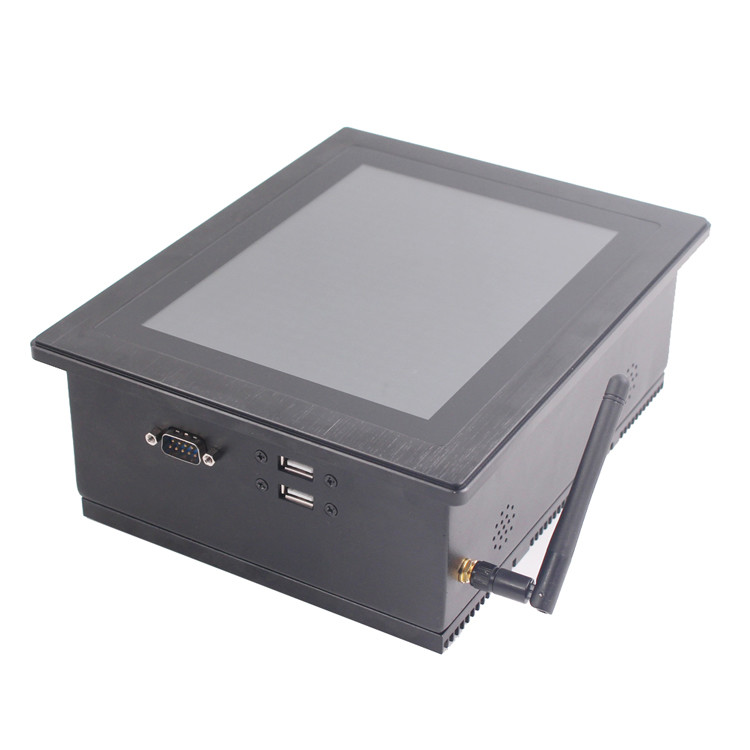

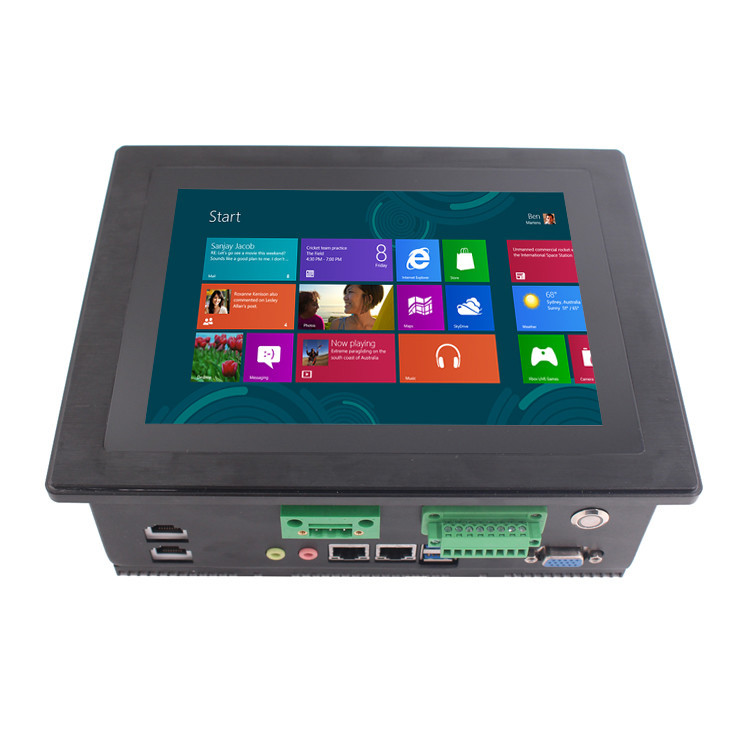

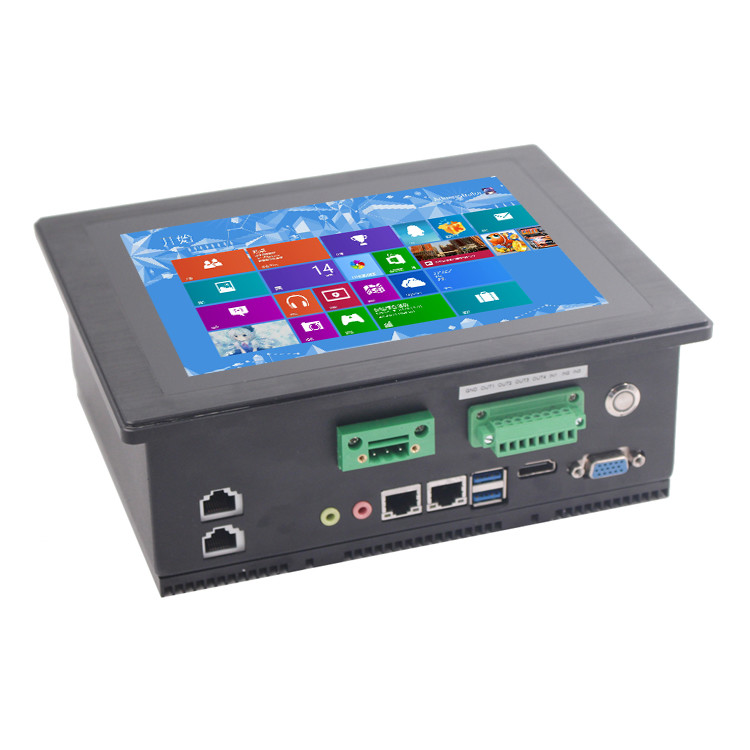

Detailed Image
8inch Industrial Panel Pc Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.8inch touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
