Features
- 15″ 1024*768 resolution Industrial Grade lcd panel
- Resistive touchscreen, COM port for touch use
- 1000 Nits of Brightness which can work in sunlight
- VGA,DVI-I, HDMI inputs
- Embeded industrial panel mount monitor
- 24V wide voltage built-in
Configurations
| LCD Panel Characteristics | Screen Size | 15-inch Industrial LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 1000cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
COM | 1x COM for touch use | ||
| HDMI | Yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 24V wide voltage | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

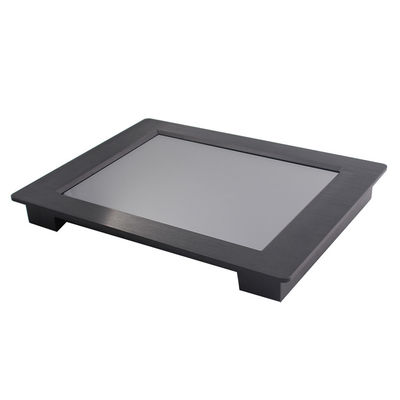

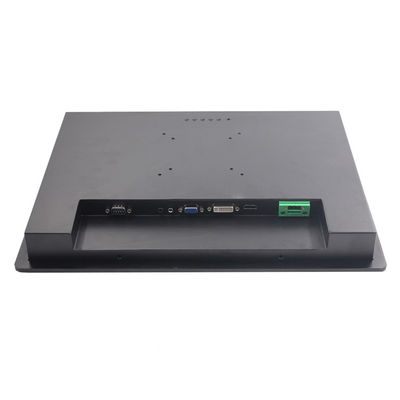

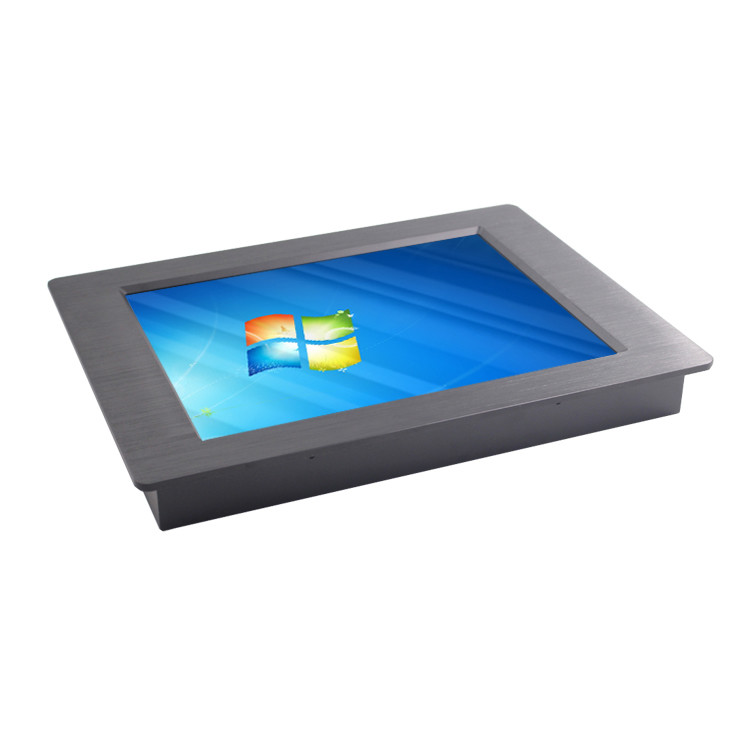

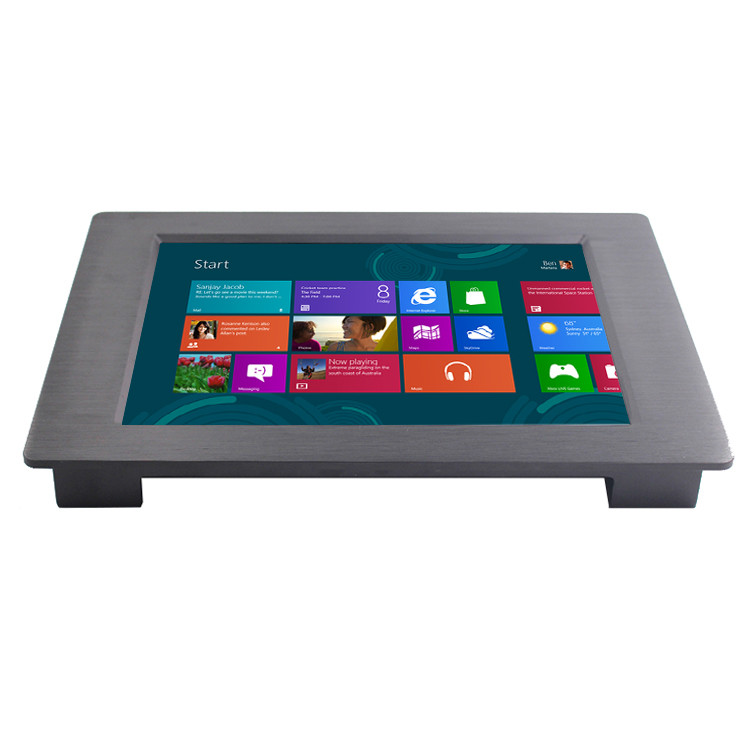

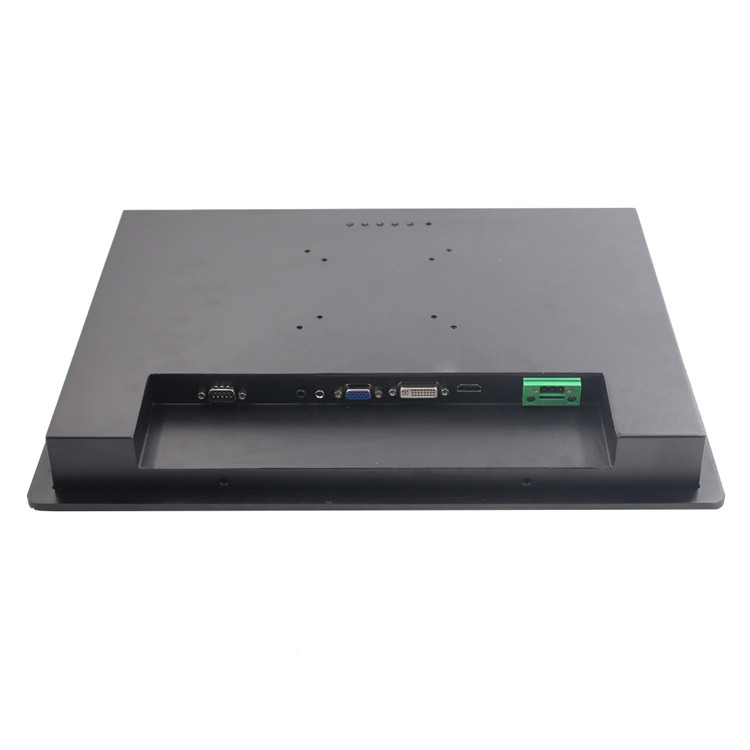

Detailed Image
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
