19inch XGA panel mount industrial monitor with resistive touchscreen. COM port as the touch port, it also can be choose to USB port for touch. 3mm Thin front bezel for embedded mount, which can widely use to cabinet, kiosk, HMI...etc It adapt 1000nits brightness which can be used in sunlight. If you also want waterproof, tell us. We can provide to you.
Features
- 19″ 1280*1024 resolution Industrial Grade lcd panel
- PCAP touchscreen, COM port for touch use
- 1000 Nits of Brightness which can work in sunlight
- VGA,DVI-I, HDMI inputs
- Embeded industrial panel mount monitor
- 24V wide voltage built-in
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Configurations
| LCD Panel Characteristics | Screen Size | 19-inch Industrial LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 250cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
COM | 1x COM for touch use | ||
| HDMI | Yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 24V wide voltage | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

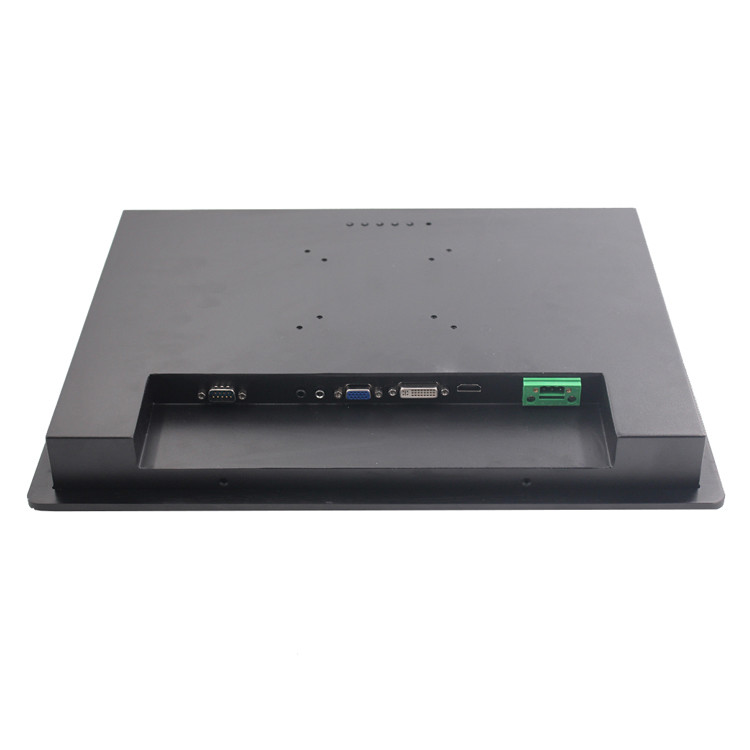

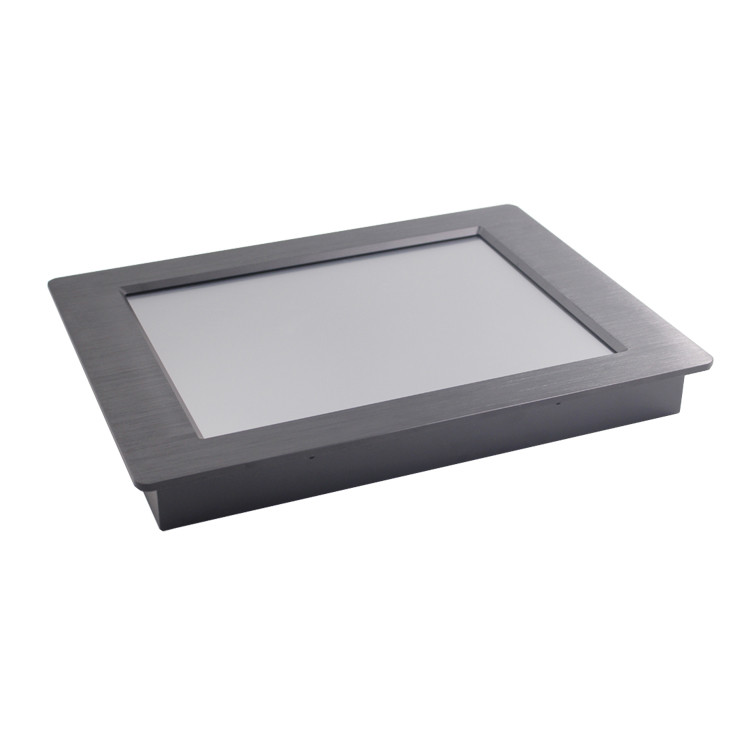

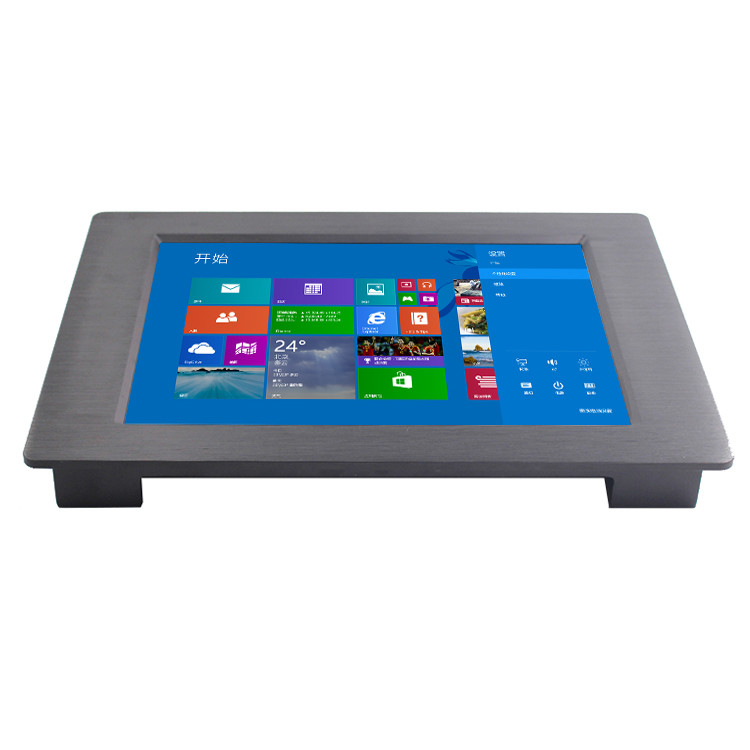

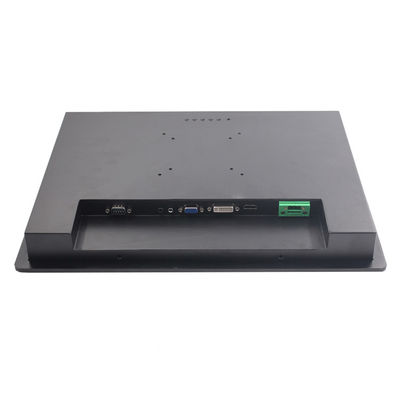

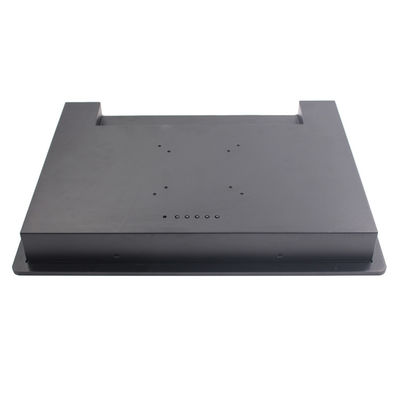

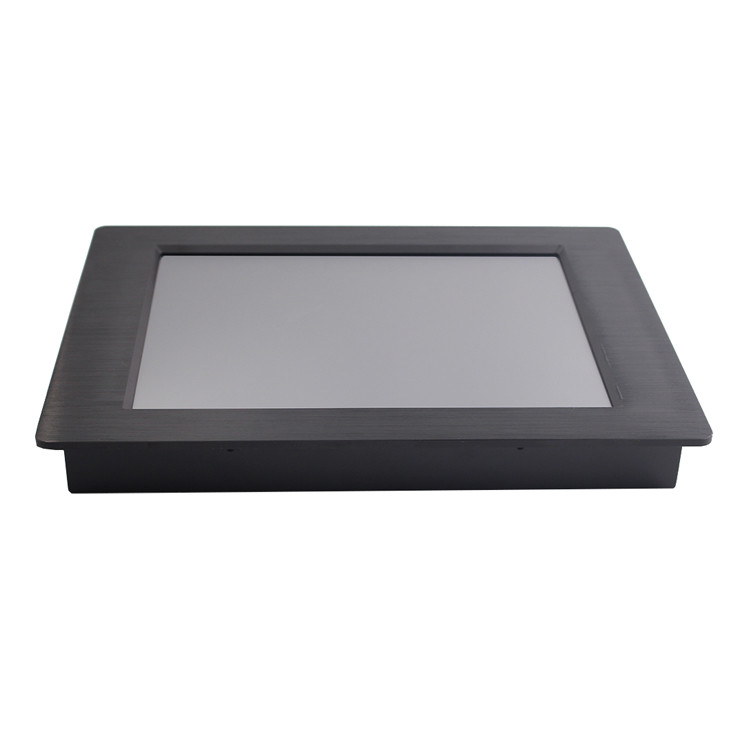

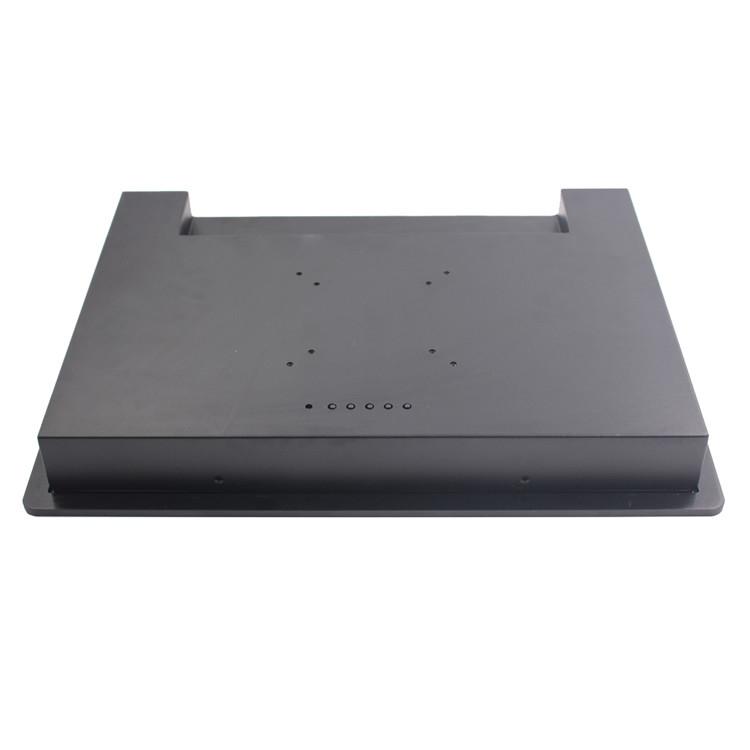

Detailed Image
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
