Alloy Panel 250nits CNC Craft Touch Screen Monitor DC24V VESA

1piece
MOQ
Negotiable
Price
Alloy Panel 250nits CNC Craft Touch Screen Monitor DC24V VESA
Features Gallery Product Description Request A Quote
Features
Specifications
Type: 15'' Capacitive Touch Monitor
Brightness: 250nits
Resolution: 1024*768
Touch: Com Port For Touch Use
Wide Voltage: 24V Voltage
Mounting Type: Embedded / VESA
Warranty: 12 Months
Material: Aluminum+Metal
Highlight:

250nits Touch Screen Monitor

,

CNC Craft Touch Screen Monitor

,

VESA Alloy Panel Touch Monitor

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND150M
Payment & Shipping Terms
Packaging Details: 1pc/carton weight: 3.5kgs/pc, packing size: 41.5×15.5×31.5cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Product Description



    15inch XGA panel mount industrial monitor with resistive touchscreen. COM port as the touch port, it also can be choose to USB port for touch. 3mm Thin front bezel for embedded mount, which can widely use to cabinet, kiosk, HMI...etc  It adapt 1000nits brightness which can be used in sunlight. If you also want waterproof, tell us. We can provide to you.



Features

1. 15″ 1280*1024 resolution Industrial Grade lcd panel


2. Sensistive PCAP touchscreen, COM port for touch use/ or you can choose USB for touch


3. VGA,DVI-I, HDMI inputs



4. Embeded industrial panel mount monitor



5. 24V wide voltage built-in



6. 1 year warranty



Application

Industrial plant


Oil, Gas and Chemicals Industrial


Animal Feed Production Facility


CNC Control Panel


Rugged Environment Application


Food & Beverage Processing Instrument



Configurations

LCD Panel Characteristics Screen Size 15-inch Industrial LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

COM 1x COM for touch use
HDMI Yes
VGA yes
DVI Yes
Function 24V wide voltage
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

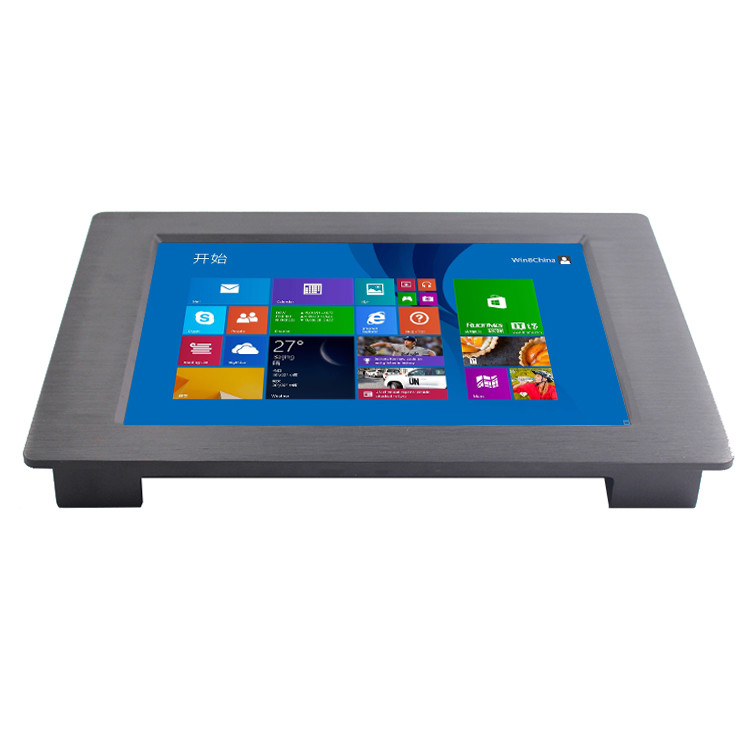

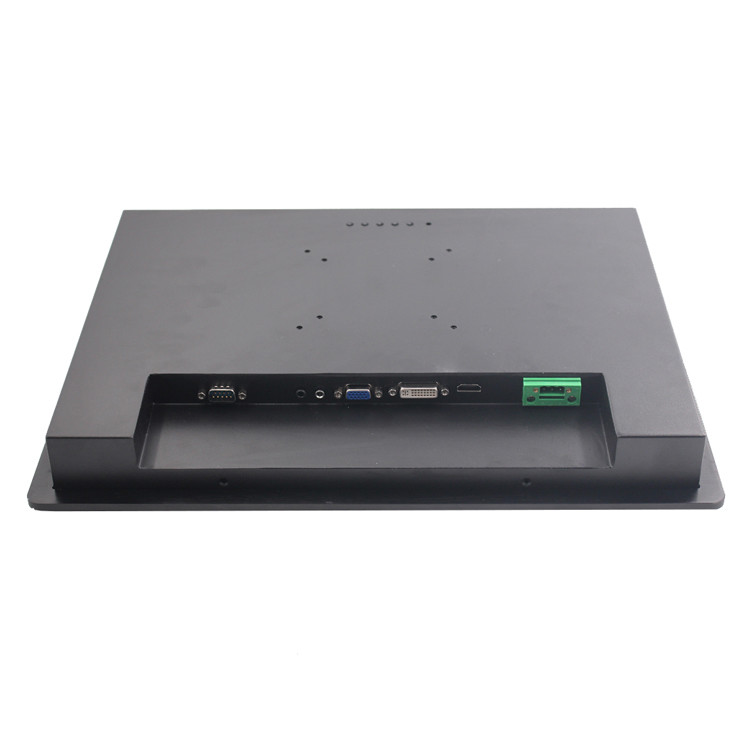

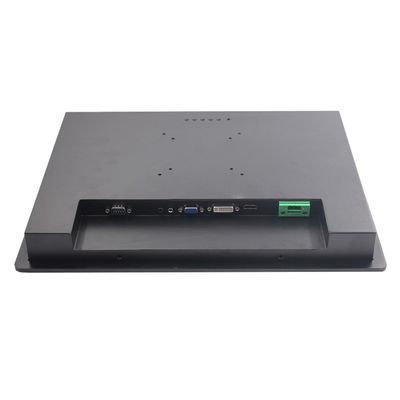

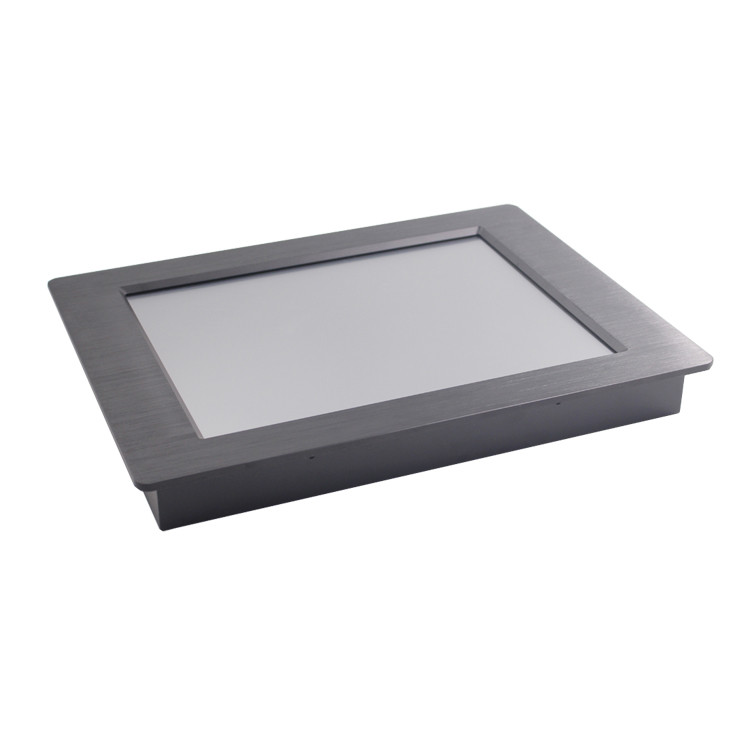

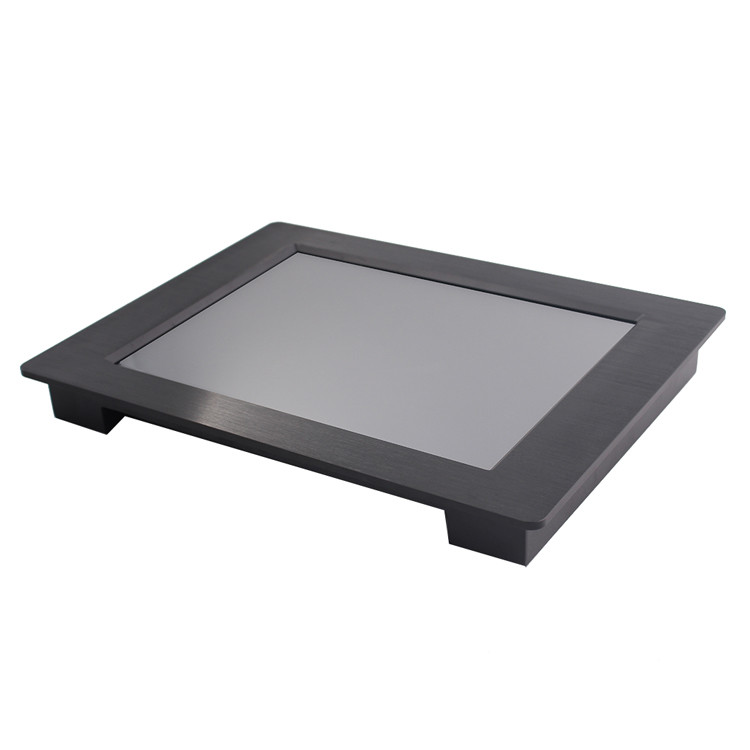

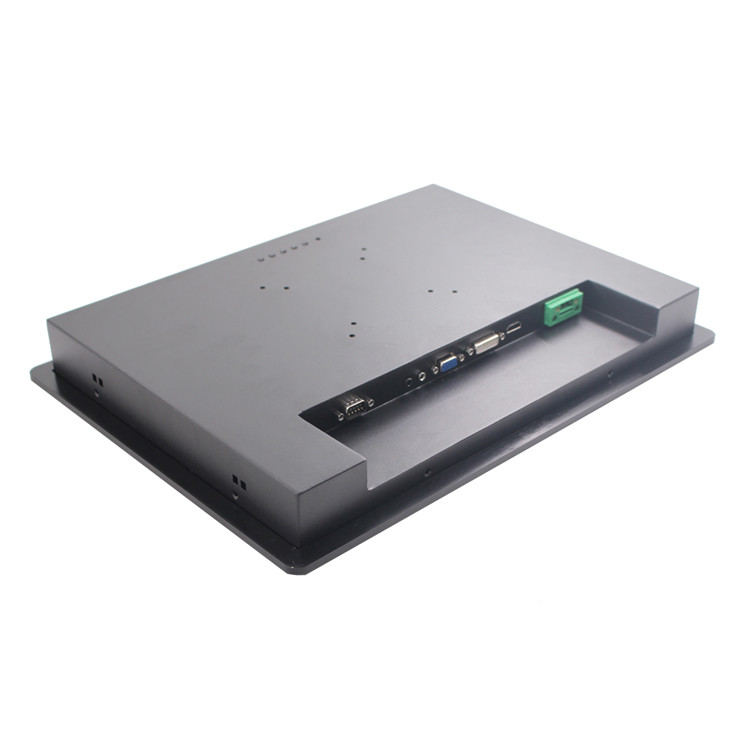

Detailed Image

Alloy Panel 250nits CNC Craft Touch Screen Monitor DC24V VESA 0



Customization
size-7-42inch optional


Touch-capacitive/ Resistive/IR touch


AG / AR glass


Optically bound


1000cd/m2 sunlight readable brightness



waterproof-front/ full sealed



Light sensor/ body sensor





Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc



Alloy Panel 250nits CNC Craft Touch Screen Monitor DC24V VESA 1
