Features
---- 15.6'' 21.5'' lcd panel screen with 1920*1080 high resolution
---- Customized touch panel with RFID/NFC card reader silk-screen
---- Intel Quad-core J1900/2.0Ghz cpu, i3 i5 i7 optional
---- Modern design
---- CE, RoHS compliance
---- 12monthes guarantee
Configuration
Processor System | CPU | Intel Quad-croe J1900/2.0GHz | |
Memory | 4GB-8GB | ||
Storage | 64G SSD(up to 1TB) | ||
Operation System | Windows 7/8/10 OS(trial version) | ||
LCD Panel Characteristics | Screen Size | 15.6'' Lcd Panel | |
Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
Resolution | 1920(H)x1080(V) | ||
Aspect Ratio | 16:9 | ||
Brightness | 250cd/m2 | ||
Contrast Ratio | 500:1 | ||
Response Time | 10 msec | ||
I/O Interface | COM | 1*RS232(RS485/RS422 optional) | |
USB | 4xUSB2.0 | ||
LAN | 2xRJ45, 10/100/1000 Mbps | ||
HDMI | yes | ||
VGA | 1xVGA | ||
Function | RFID/ NFC card reader | ||
Optional | 8-36V wide range voltage | ||
Brightness control button | |||
1000nits High Brightness for sunlight readable | |||
Front waterproof / Full sealed Waterproof | |||
Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
Accessories | 8A Power Adapter with cable | ||
Working Temperature | -20~70° C | ||
Other Information | Material | Aluminum alloy+metal | |
Color | Black/Silver/White | ||
Mounting | VESA mount / Embedded | ||
Certificates | CE/ RoHS / FCC |

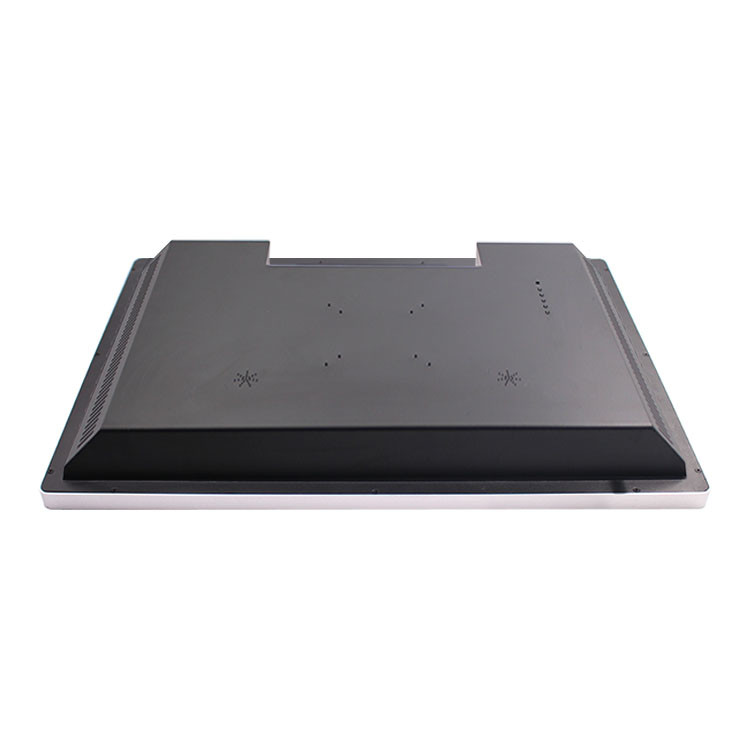

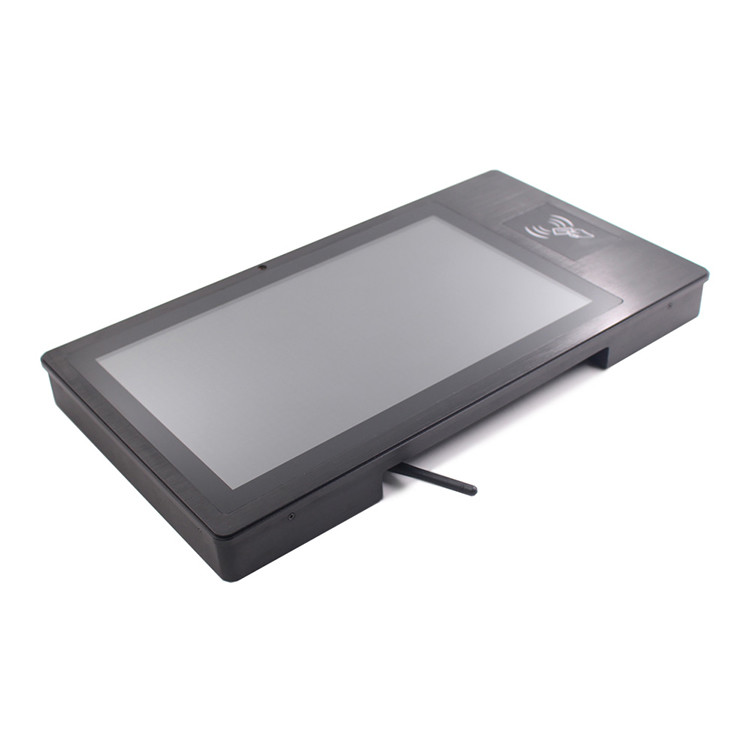

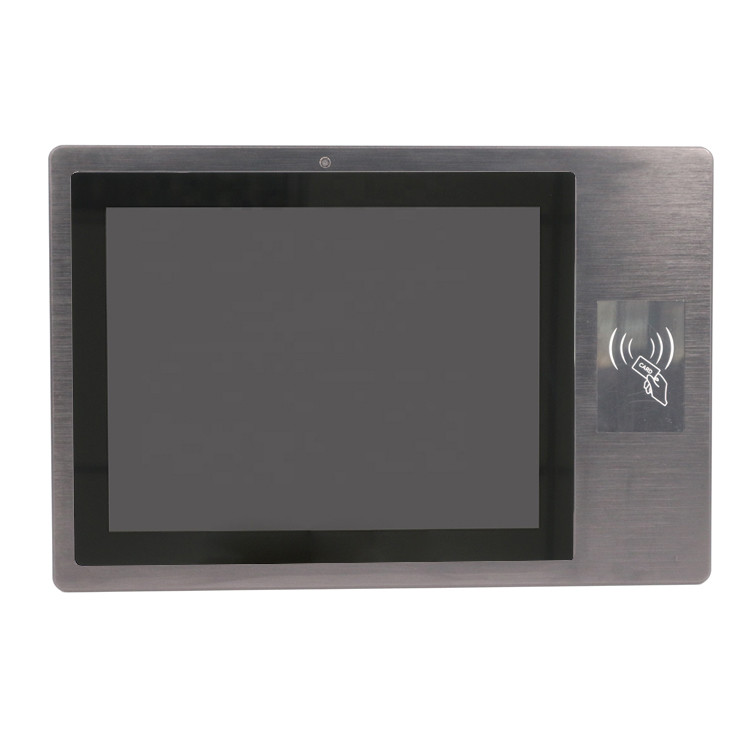

Detailed Image
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
5. Rich certificates
CE, RoHs, FCC
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
