250nits 22in PCAP Glass Touch Panel Computer With Card Reader

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND215PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 66×15×44.5cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 22'' Card Reader Touch Pc Resolution: 1920*1080
Aspect Ratio: 16:9 Touchscreen: PCAP Touch Screen
CPU: Intel Quad-core J1900/2.0Ghz Card Reader: NFC / RFID
Warranty: 1 Year Material: Aluminum Alloy
High Light:

PCAP Glass Touch Panel Computer

,

250nits Glass Touch Panel Computer

,

22in Card Reader Touch Pc


Product Description



   INNODA touch panel pc is made of aluminum profile and metal, in the front touch screen have silk-screen card reader image,it's beautiful and mordern. Processor can be intel celeron, I3 i5 i7, support windows/ linux / ubuntu os.



Features

---- 15.6'' 21.5'' lcd panel screen with 1920*1080 high resolution



---- Customized touch panel with RFID/NFC card reader silk-screen



---- Intel Quad-core J1900/2.0Ghz cpu, i3 i5 i7 optional



---- Modern design



---- CE, RoHS compliance



---- 12monthes guarantee



Configuration

Processor System CPU Intel Quad-croe J1900/2.0GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 21.5'' Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1920(H)x1080(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1*RS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
HDMI yes
VGA 1xVGA
Function RFID/ NFC card reader
Optional 8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum alloy+metal
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC


Detailed Image

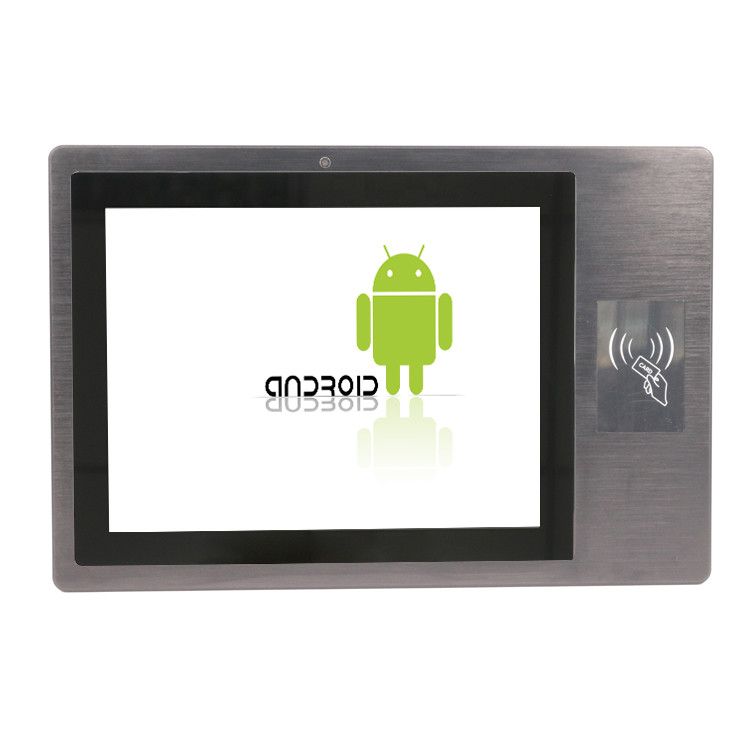

250nits 22in PCAP Glass Touch Panel Computer With Card Reader 0

Application

Intelligent Fab Automation

HMI system

Self-service pay station

Electrical fire monitoring system

water supply control cabinet

Parking payment machine

Intelligent Transportation

medical equipment

Electric control cabinet

Ticket Vending Machine

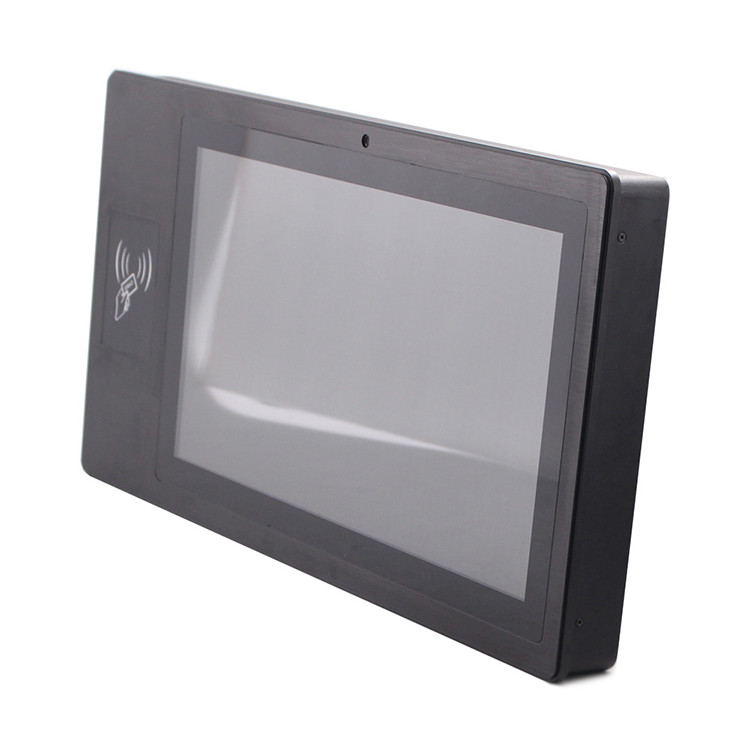

250nits 22in PCAP Glass Touch Panel Computer With Card Reader 1

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness


Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

5. Rich certificates

CE, RoHs, FCC

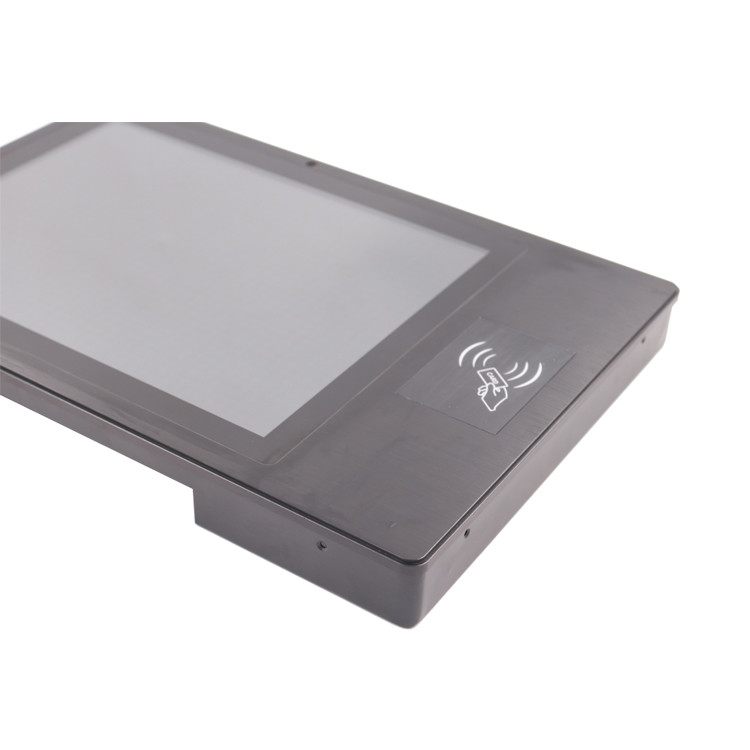

250nits 22in PCAP Glass Touch Panel Computer With Card Reader 2

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
