2 Cores Fanless ITX MINI PC Linux VGA WiFi Gigabit Ethernet HTPC
|Place of Origin:||Shenzhen,China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1piece|
|Packaging Details:||1pc/carton weight: 2kgs/pc|
|Delivery Time:||12working days upon receive the payment|
|Payment Terms:||T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram|
|Supply Ability:||5000 pieces per month|
|Type:||Industrial Computer||CPU:||Intel Core I5-5287U/2.9Ghz|
|Fanless:||Passive Cooling System||WIFI:||2*wifi Built-in|
|System:||Windows 7/10(trial Version) / LInux||Material:||Aluminum Alloy|
Fanless ITX MINI PC,
2 Cores ITX MINI PC,
HTPC Micro Itx Pc
1. INNODA ITX-X31 is a multi-purpose mini host, equipped with Intel Core I3/I5/I7 processors
2. 2G / 4G /8G RAM DDR3, 32G / 64G /128G SSD
3. Rich ports : 6*USB,2*WIFI,1*LAN,1*HDMI,1*VGA
5. Mic and Speaker built-in
INNODA Nuc MINI PC can meet the needs of corporate office and home entertainment. The fanless metal body has a stable heat dissipation design, and the operation is more stable and reliable in industrial applications such as corporate office, client terminal, and multimedia.
|CPU||Intel Core I7-7500U, base frequency 2.7Ghz, Burst Frequency 3.5Ghz, 2 Cores 4 Threads|
|Intel Core I5-7300U, base frequency 2.3Ghz, Burst Frequency 3.6Ghz, 2 Cores 4 Threads|
|Intel Core I5-6200U, base frequency 2.3Ghz, Burst Frequency 2.8Ghz, 2 Cores 4 Threads|
|Intel Core I5-5287U, base frequency 2.9Ghz, Burst Frequency 3.3Ghz, 2 Cores 4 Threads|
|Intel Core I5-5200U, base frequency 2.2Ghz, Burst Frequency 2.7Ghz, 2 Cores 4 Threads|
|Intel Core I3-5005U, base frequency 2.0Ghz, 2 Cores 4 Threads|
|Graphic card||Integrated graphic card|
|i7-7500U:HD Graphics 620 | i5-7630U:锐炬® Plus Graphic 640 | i5-6200U:HD Graphics 520 | i5-5200U/i3-5005U:HD Graphics 5500|
|Memory(RAM)||1x SODIMM slot, support DDR3L 1066/1333/1600MHz|
|4GB / 8GB / 16GB|
|Hard Disk (SSD)||30GB 60GB 120GB 240GB 500GB 1TB mSATA SSD(Support 1* mSATA SSD+1*2.5" HDD/SSD)|
|OS||Official Win 10/8 /7 Linux ubuntu Openelec, etc.
Notice: we pre-install activated non-genuine version Win7/8/10 OS for free only,; If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu, Pfsense..., please leave us message.
2 x USB 2.0

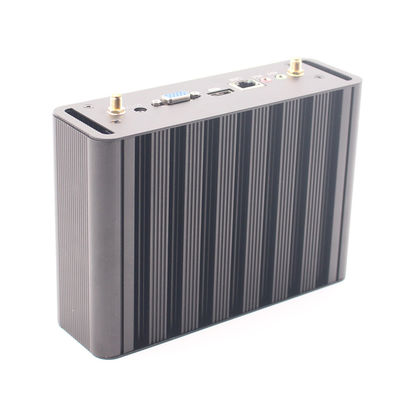

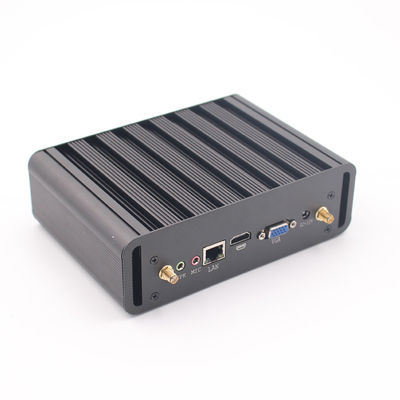

|Rear-Panel Connectors||1 x H-DMI + 1xVGA
1 x LAN RJ45 10/100/1000 Mbps Adaptive
1 x DC IN 12V
1 x SPK + 1 x Mic
2 x WIFI antennas connectors
|Ethernet Port||1 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet|
|WIFI||with dual antenna,300M,802.11.b/g/n|
|Power||Input: DC100-240V AC/50-60Hz
Output: DC 12V/5A
|Cooling System||Fanless Passive cooling with Heat Sink Aluminum Block|
|Chasiss Material||Aluminum Alloy|
|Relative Humidity||10%~90% (non-condensing)|

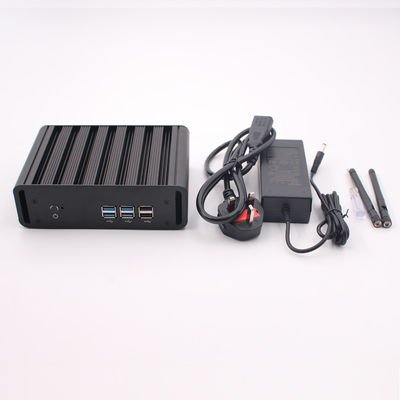

|Package||1x Mini PC
1x Power Adapter
1x WIFI Module with Dual antennas (If you buy Barebone PC without RAM and SSD, there will be no WIFI)1x SATA Power Cable & SATA Cable (free gift)
1x User Manual
Such small computer can be used in what area
1.Home/hotel use, H-D-M-I design can support high-definition audio and Video synchronization, watch H-D movie with family, a small home theater is not a dream, also the mini PC support 3D game, at the free time, play the game with family would be a good choice.
2.Office/school use, simple design style office with the small body and non-fan desktop computer and support the wall hanging in the back of the display, so that your desk clean and tidy, bring you a relaxed working environment.
3.Industrial use, non- fan design and wave pattern case to bring ice radiating and more stable, rich interface design would be good for industrial.
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
INNODA have 10years rich experience in Industrial Computer/monitor field. Our eingineers all have at least 13years rich experience.Industrial touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage. Different kind of monitors and android tablet, which can be widely meet client's demands.
Long business relationship and WIn-Win is our goal. Welcome to contac to ask for more information.
