2.7Ghz Type C HTPC Linux ITX MINI PC I7 7500U VGA HDMI 128G SSD

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: INDITX-X31
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 2kgs/pc
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: Industrial Computer CPU: Intel Core I7-7500U/2.7Ghz
Fanless: Passive Cooling System WIFI: 2*wifi Built-in
System: Windows 7/10(trial Version) / LInux Material: Aluminum Alloy
High Light:

HTPC Linux ITX MINI PC

,

2.7Ghz ITX MINI PC

,

I7 7500U Mini Computer Case


Product Description



Features
1. INNODA ITX-X31 is a multi-purpose mini host, equipped with Intel Core I3/I5/I7 processors

2. 2G / 4G /8G RAM DDR3, 32G / 64G /128G SSD

3. Rich ports : 4*USB3.0, 2*USB2.0, 2*WIFI,1*LAN,1*HDMI,1*VGA
5. Mic and Speaker built-in

6. Aluminum alloy case with heat sink block


Configuration

CPU Intel Core I7-7500U, base frequency 2.7Ghz, Burst Frequency 3.5Ghz, 2 Cores 4 Threads
Intel Core I5-7300U, base frequency 2.3Ghz, Burst Frequency 3.6Ghz, 2 Cores 4 Threads
Intel Core I5-6200U, base frequency 2.3Ghz, Burst Frequency 2.8Ghz, 2 Cores 4 Threads
Intel Core I5-5287U, base frequency 2.9Ghz, Burst Frequency 3.3Ghz, 2 Cores 4 Threads
Intel Core I5-5200U, base frequency 2.2Ghz, Burst Frequency 2.7Ghz, 2 Cores 4 Threads
Intel Core I3-5005U, base frequency 2.0Ghz, 2 Cores 4 Threads
Graphic card Integrated graphic card
i7-7500U:HD Graphics 620 | i5-7630U:锐炬® Plus Graphic 640 | i5-6200U:HD Graphics 520 | i5-5200U/i3-5005U:HD Graphics 5500
Memory(RAM)  1x SODIMM slot, support DDR3L 1066/1333/1600MHz
 4GB / 8GB / 16GB
Hard Disk (SSD) 30GB 60GB 120GB 240GB 500GB 1TB mSATA SSD(Support 1* mSATA SSD+1*2.5" HDD/SSD)
OS Official Win 10/8 /7 Linux ubuntu Openelec, etc.
Notice: we pre-install activated non-genuine version Win7/8/10 OS for free only,; If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu, Pfsense..., please leave us message.
Front-Panel Connectors

Power on/Off

2 x USB 2.0
4 x USB 3.0

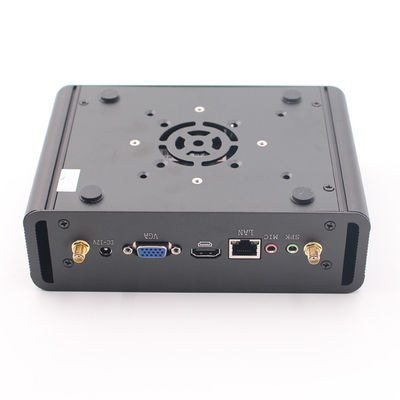

Rear-Panel Connectors 1 x H-DMI + 1xVGA
1 x LAN RJ45 10/100/1000 Mbps Adaptive
1 x DC IN 12V
1 x SPK + 1 x Mic
2 x WIFI antennas connectors
Ethernet Port 1 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet
WIFI with dual antenna,300M,802.11.b/g/n
Power Input: DC100-240V AC/50-60Hz
Output: DC 12V/5A
Cooling System Fanless Passive cooling with Heat Sink Aluminum Block
Chasiss Material  Aluminum Alloy
Operating Temperature -20-60C
Relative Humidity 10%~90% (non-condensing)

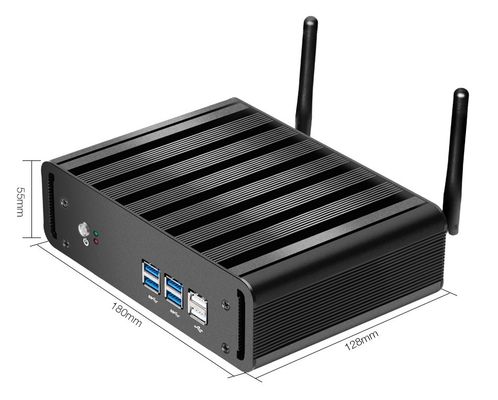

Dimension 180x128x55mm

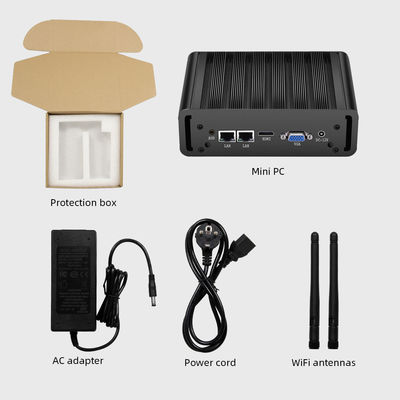

Package 1x Mini PC
1x Power Adapter
1x WIFI Module with Dual antennas (If you buy Barebone PC without RAM and SSD, there will be no WIFI)1x SATA Power Cable & SATA Cable (free gift)
1x User Manual


Detailed Image
2.7Ghz Type C HTPC Linux ITX MINI PC I7 7500U VGA HDMI 128G SSD 0

Smaller than main chasiss, save more space

It can be VESA / wall mout / desktop Mounting type, choose as you like





2.7Ghz Type C HTPC Linux ITX MINI PC I7 7500U VGA HDMI 128G SSD 1



Application

Such small computer can be used in what area
1.Home/hotel use, H-D-M-I design can support high-definition audio and Video synchronization, watch H-D movie with family, a small home theater is not a dream, also the mini PC support 3D game, at the free time, play the game with family would be a good choice.


2.Office/school use, simple design style office with the small body and non-fan desktop computer and support the wall hanging in the back of the display, so that your desk clean and tidy, bring you a relaxed working environment.


3.Industrial use, non- fan design and wave pattern case to bring ice radiating and more stable, rich interface design would be good for industrial.



Our Advantage
1. Experience

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc


2.7Ghz Type C HTPC Linux ITX MINI PC I7 7500U VGA HDMI 128G SSD 22.7Ghz Type C HTPC Linux ITX MINI PC I7 7500U VGA HDMI 128G SSD 3

    INNODA have 10years rich experience in Industrial Computer/monitor field. Our eingineers all have at least 13years rich experience.Industrial touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage. Different kind of monitors and android tablet, which can be widely meet client's demands.



Long business relationship and WIn-Win is our goal. Welcome to contac to ask for more information.
