12.1-inch XGA 1024x768 resolution lcd panel monitor, thin front bezel which is adapt CNC craft, true flat panel with round cornor design. High brightness 1000nits can read under sunlight. HDMI, VGA intercafce connect to pc.
Our products have spread over the world, panel pc, monitor, android tablet use for automation system, boat, kiosk....
Features
1) Adopt multi-touch capacitive touchscreen with 3mm tempered glass
2) Industrial LCD panel, wide viewing angle, high nits, true color
3) 1000cd/m2 brightness
4) Sturable rugged enclosure which is for harsh environment
5) Embedded mount with mount clamps
Configurations
| LCD Panel Characteristics | Screen Size | 12-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 1000cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | 1x USB for touch use | ||
| HDMI | Yes | |||
| VGA | yes | |||
| DVI | ----- | |||
| Function | fanless | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Aluminum+Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

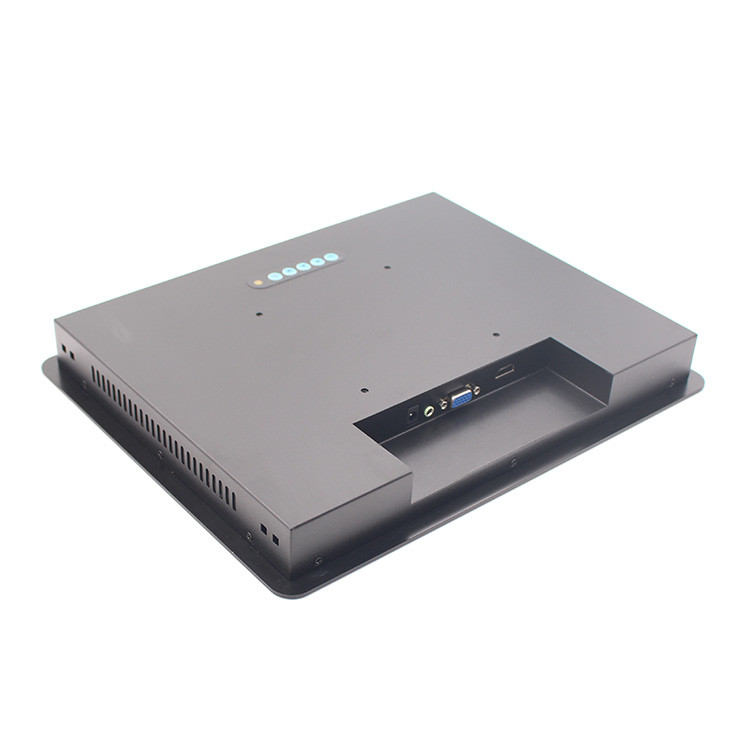

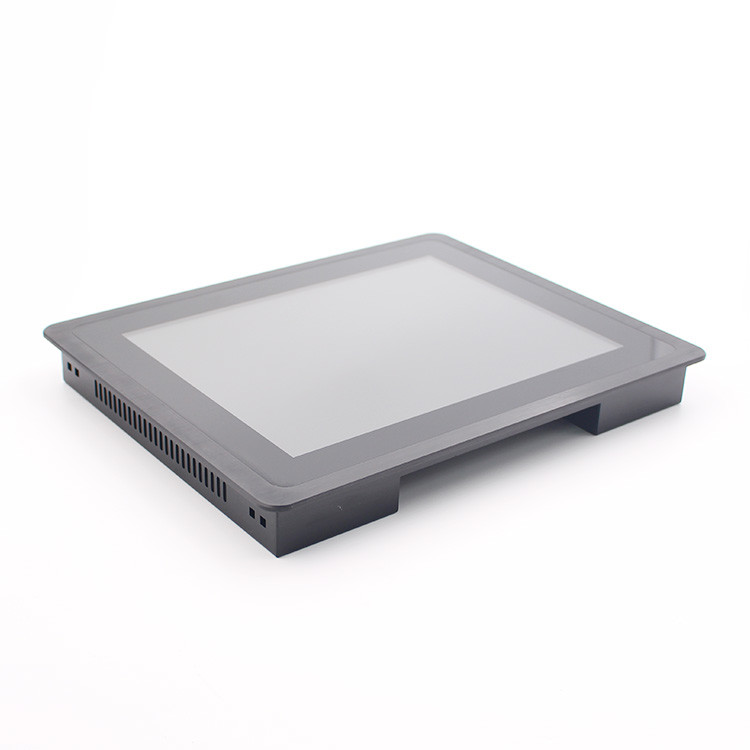

Detailed Image
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Our Advantage
1. Experience---INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience. We have done a lot of successful cases, like Opera, Boat, Subway.....
2. Wide products line---7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions---It offers rich of interface to meet csutomers needs. Wateproof, Optical bonding of touch and lcd, Anti-glare....
4.Widely useage environment---INNODA computer/monitor which is widly used for automation system, kitchen,food industry, boat...etc
