19 Inch SS304 1280x1024 Lcd Panel Monitor Seamless IP67 18W HDMI
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND190M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 9kgs/pc, packing size: 50×14×44cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
|
Detail Information |
|||
| Type: | 19inch Waterproof Lcd Monitor | Resolution: | 1280*1024 |
|---|---|---|---|
| Touch: | Capacitive Touch Screen | IP Grade: | Full IP67 |
| Aspect Ratio: | 4:3 | Interface: | USB / HDMI |
| Material: | 1.5mm Stainless Steel | Working Temperature: | -20-70C |
| High Light: | 1280x1024 Lcd Panel Monitor,SS304 Lcd Panel Monitor,18W HDMI Outdoor LCD Monitor |
||
Product Description
Features
1. Waterproof lcd monitor With multi-touch capacitive touchscreen
2. Fully sealed waterproof IP65(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included
4. Durable 1.5mm Stainless steel frame
5. Working Temperature -20-70C
6.This steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to bacterial growth.
Configurations
| LCD Panel Characteristics | Screen Size | 19-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1280(H)x1024(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 250cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | 1x USB for touch use | ||
| HDMI | yes | |||
| VGA | ----- | |||
| DVI | ------ | |||
| Function | Fully sealed IP65 waterproof | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Stainless Steell(Aluminum/metal for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

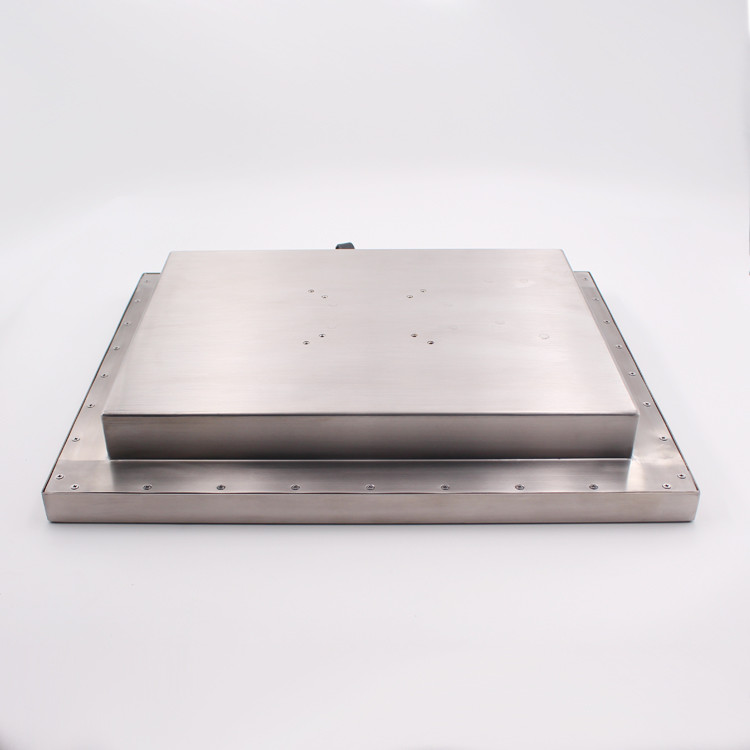

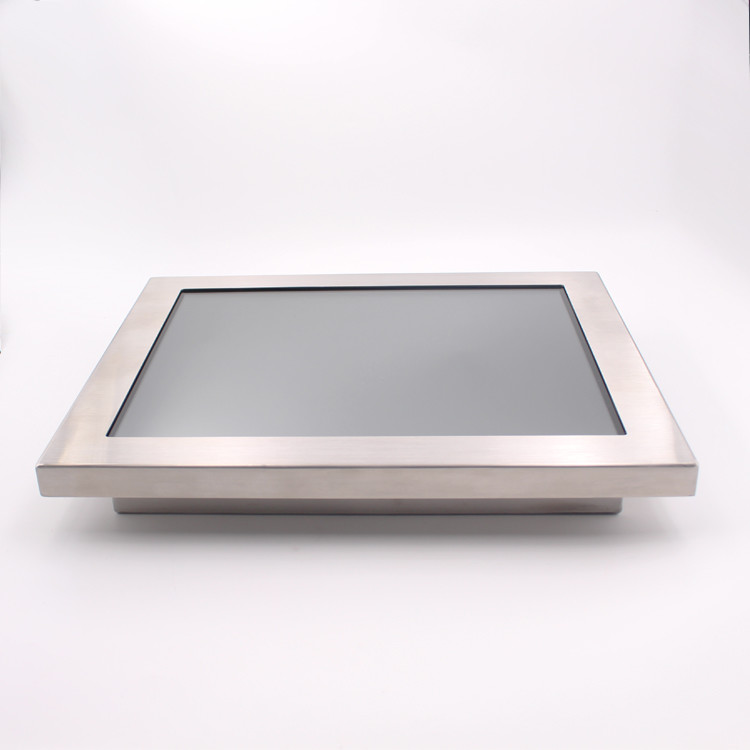

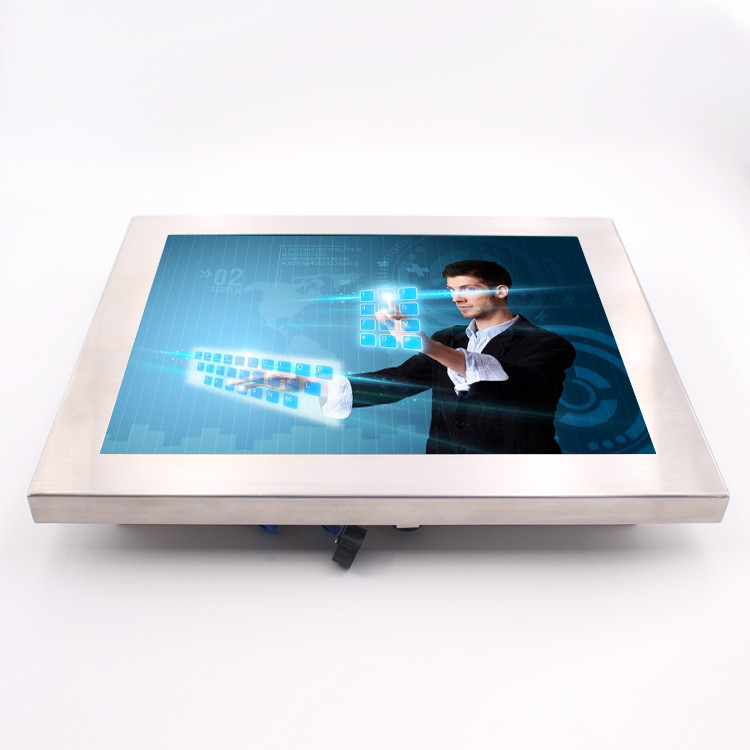

Detailed Image
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
Rugged Environment Application
Food & Beverage Processing Instrument
Boat
Slaughter house
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
