Configurations
| LCD Panel Characteristics | Screen Size | 19-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1280(H)x1024(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 250cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | 1x USB for touch use | ||
| HDMI | yes | |||
| VGA | ----- | |||
| DVI | ------ | |||
| Function | Fully sealed IP65 waterproof | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Stainless Steell(Aluminum/metal for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
Features
1. Waterproof lcd monitor With multi-touch capacitive touchscreen

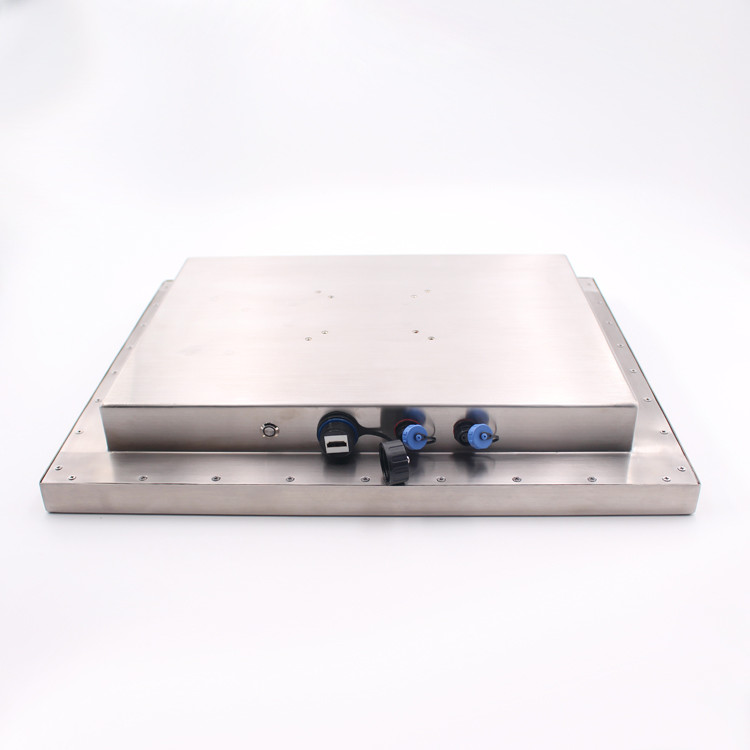

2. Fully sealed waterproof IP65(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included
4. Durable 1.5mm Stainless steel frame
5. Working Temperature -20-70C
6.This steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to bacterial growth.
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
Rugged Environment Application
Food & Beverage Processing Instrument
Boat
Slaughter house
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
