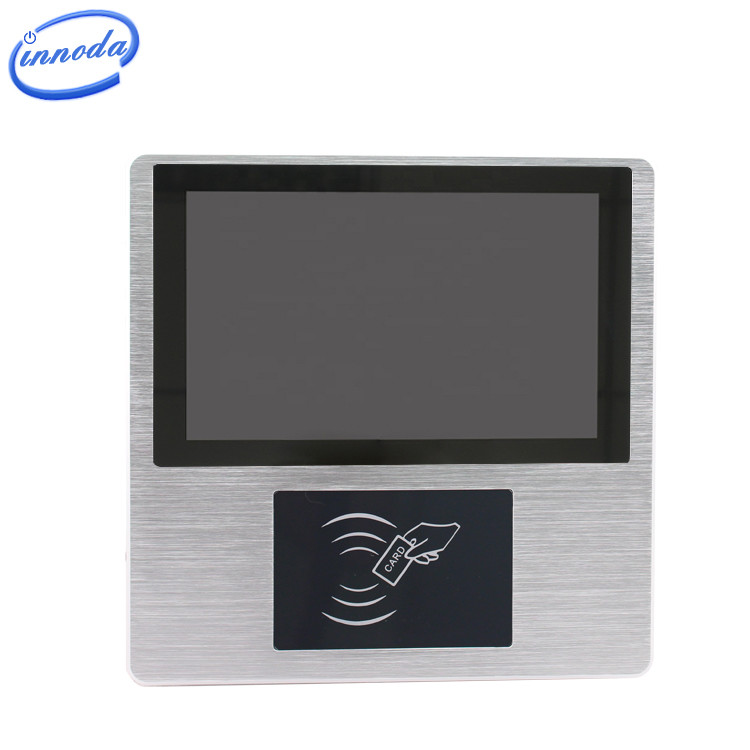

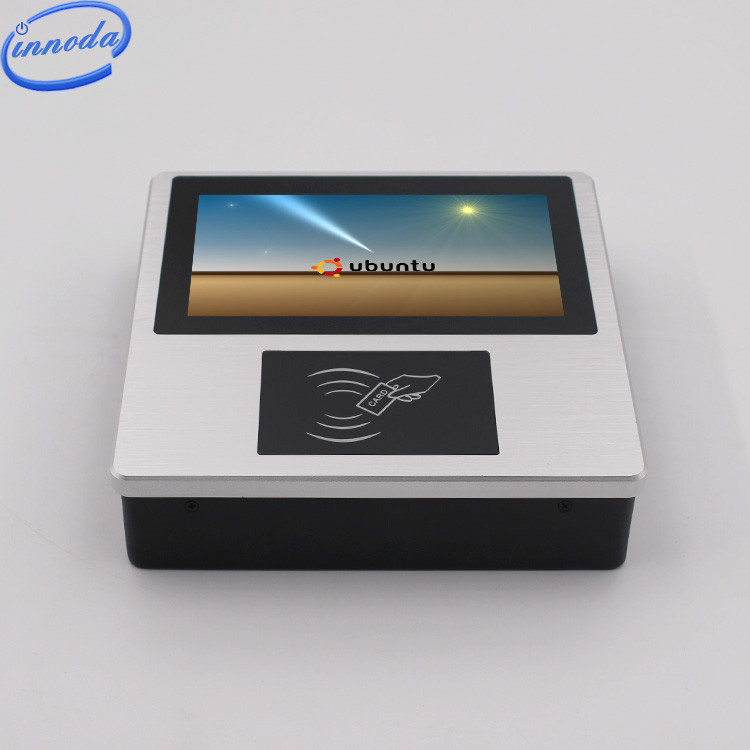

7'' Wall Mount RFID Reader Industrial Touch Panel Pc RJ45 PoE
Features
1. 7inch industrial panel pc with 1024*600 resolution
2. 2-3mm tempered capacitive touch glass
3. Intel quad-core J1900/2.0Ghz processor
4. I/O port: USB, RJ45 , Poe (it can be customized as you want)
5. RFID / NFC reader built-in

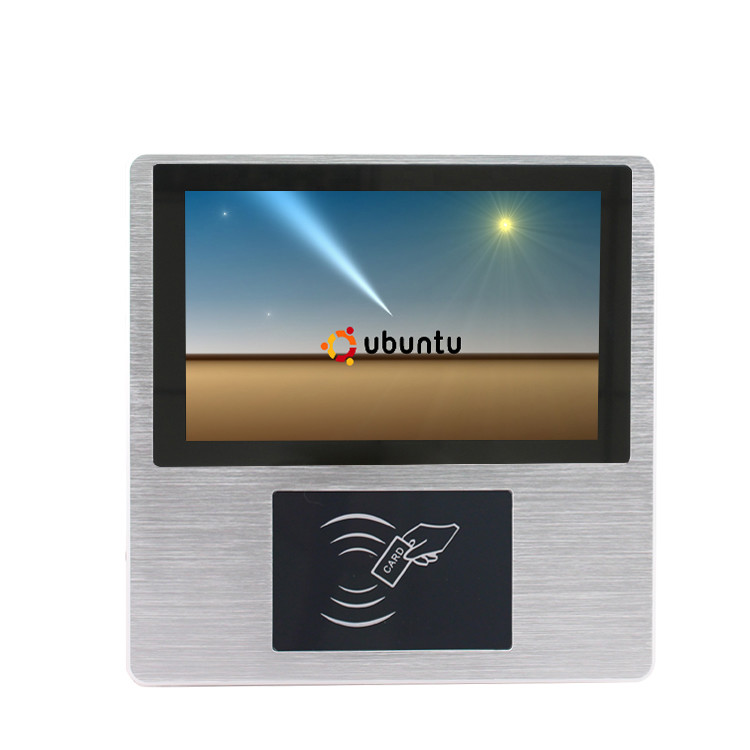

6. Ubuntu OS
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 7’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x 600(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 500cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | -------- | |
| USB | 2xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| PoE | Rj45 as poe power supplier | ||
| Function | RFID / NFC reader | ||
| PoE | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
