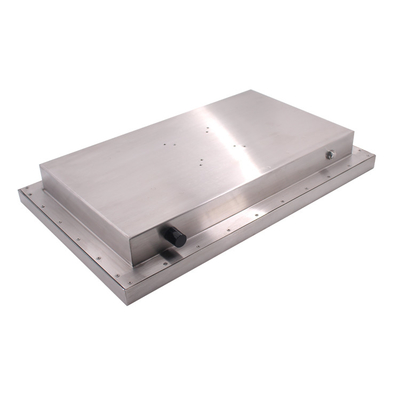

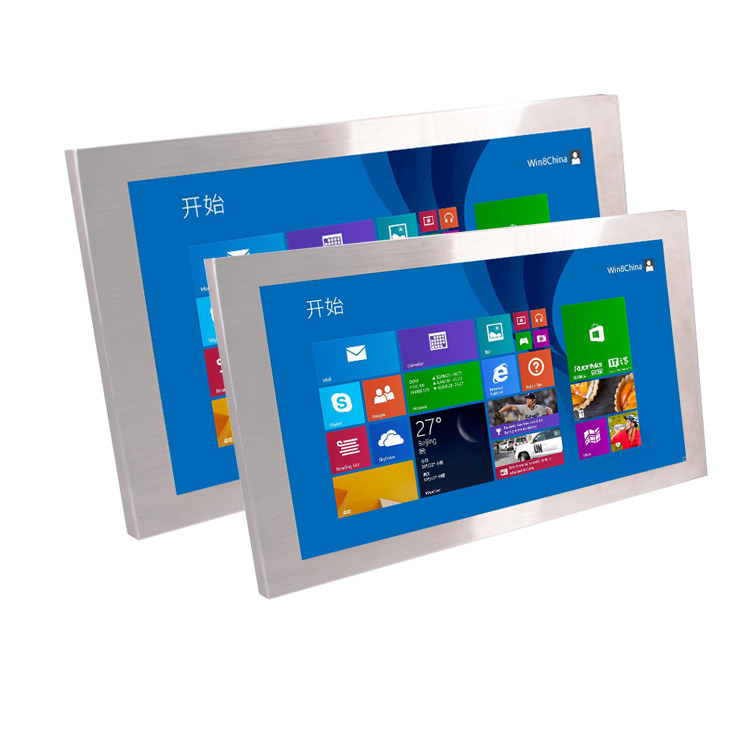

Outdoor PCAP Touchscreen FUll IP67 Industrial Computer With WIFI
Waterproof Panel PC Features
1. 1080P FUll HD 21.5-inch waterproof touch pc
2. Fully sealed waterproof IP67
3. Various water-tight IO Cables included--USB, COM, LAN and DC jack
4. SUS304/ 306 1.5mm Stainless steel bezel
5. Fanless cooling
Waterproof Panel PC Optional functions
High brightness for sunlight readable
WIFI / BT
8-36V wide voltage
RFID / NFC card reader
Webcam
| Processor System | CPU | Intel Quad Core J1900/2.0 GHz | I/O Port | COM | 1 x RS232(Up to 4COM) | ||||||
| Memory | 2GB (up to 8G) | USB | 2 x USB2.0(up to 4USB) | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 1/2 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | Function | IP67 waterproof | ||||||||
| LCD Panel Characteristics | Screen Size | 21.5’’ LED Panel,16:9 (7-22'' option) | Waterproof WIFI antenna | ||||||||
| Touchscreen Type | Capacitive touch screen/Resistive | Optional | 8-36V wide voltage | ||||||||
| Resolution | 1920(H)x1080(V) | PoE | |||||||||
| Brightness | 250cd/m2 | WIFI / Bluetooth is built-in | |||||||||
| Other Information | Power supply | 110V-220V, 12V DC Input | Camera / RFID / NFC / Scanner built-in | ||||||||
| Working Temperature | 0-50℃ | Enclosure | Metal/Aluminum/Stainless Steel (optional) | ||||||||
| Mounting | 75*75/100*100mm VESA | Cooling system | Fanless or with fan | ||||||||
Waterproof Panel PC Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
