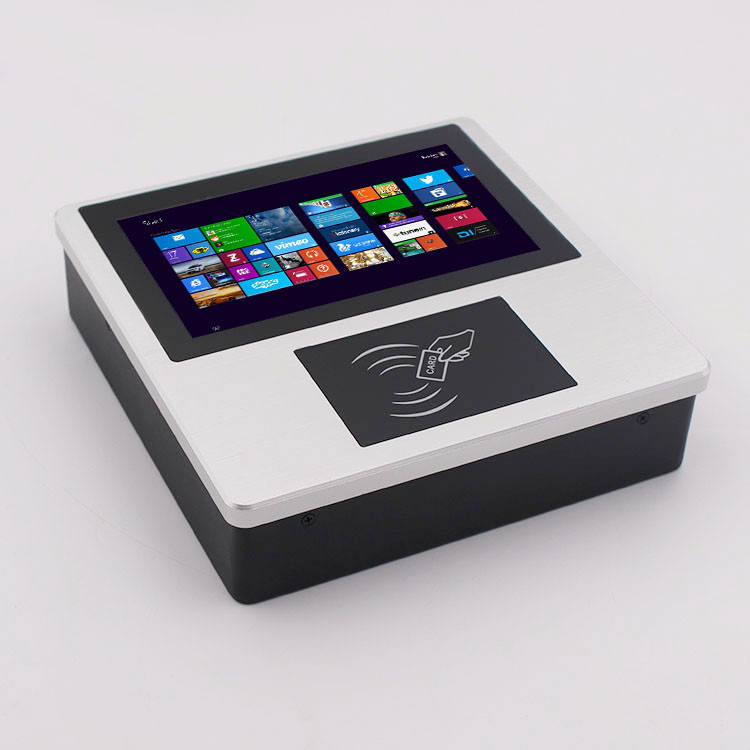

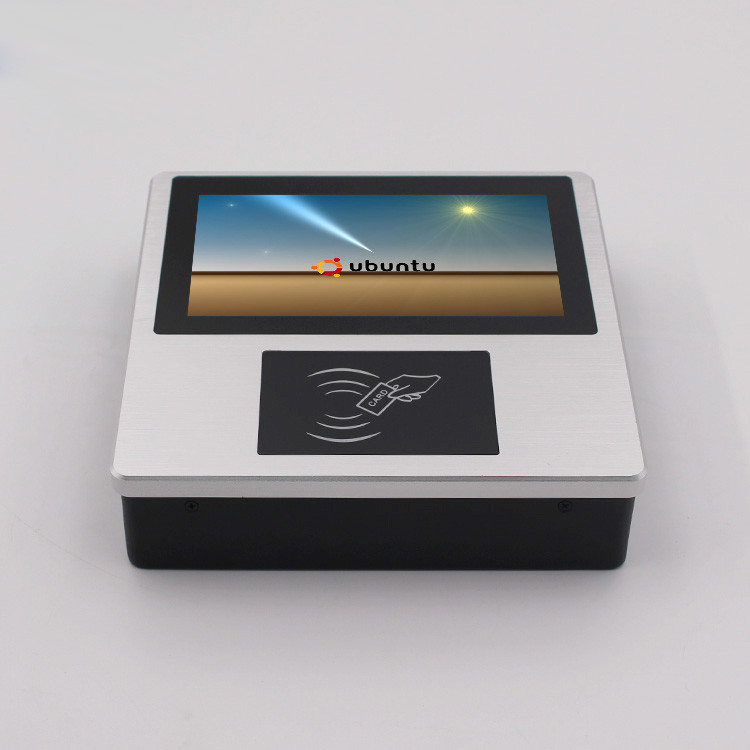

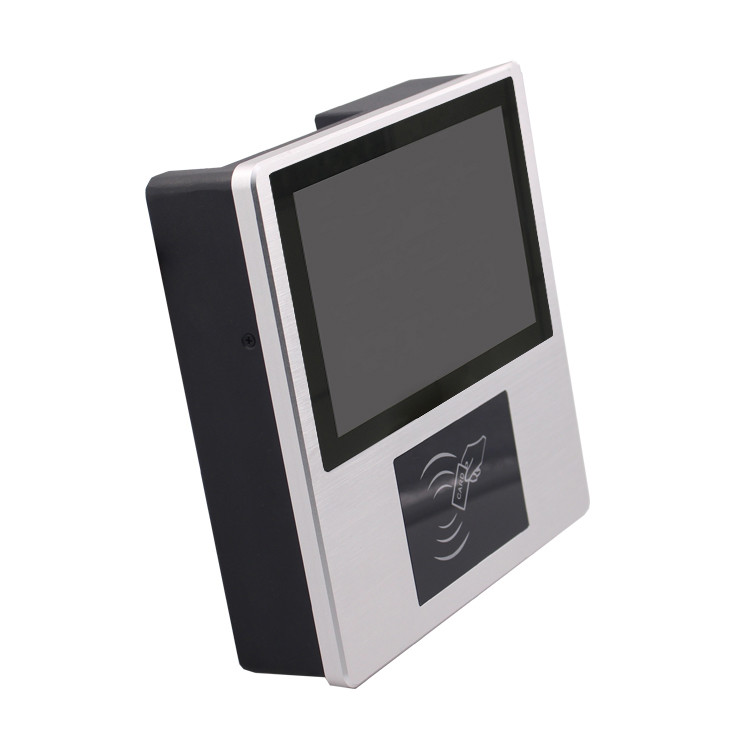

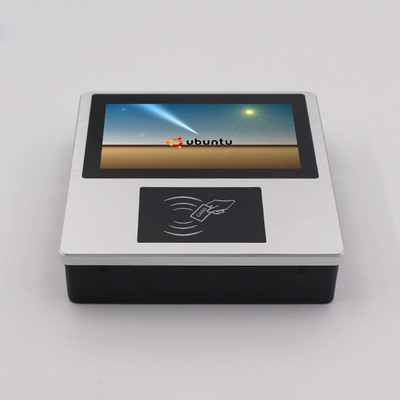

Intel J1900 CPU Aluminum Bezel 1024*600 Resolution 7-Inch IPS PCAP Touch AIO PC
Features
1. Brand-new 7inch lcd panel pc with 1024*600 resolution
2. Sensistive Capacitive touchscreen
3. Intel quad-core J1900/2.0Ghz processor / Core I3/I5/I7 optional
4. Poe Built-in, ethernet port as power supply
5. RFID / NFC card reader
there have 3 kinds of card reader can choose:
LF card reader--it can read 125KHZ card
HF card reader--it can read 13.56MHZ card
UHF card reader---it can read 1m distance card
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 7’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x 600(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 500cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | -------- | |
| USB | 2xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| PoE | Rj45 as poe power supplier | ||
| Function | RFID / NFC reader | ||
| PoE | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Optional function
INNODAPC 7inch PCAP Touch AIO PC
Touch function---capacitive touch / Resistive touch / IR touch / SAW touch
8-36V wide voltage--especially work in with car
Anti-glare glass
Optical bonding technology
Sunlight readable
Waterproof IP65/67/68
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
