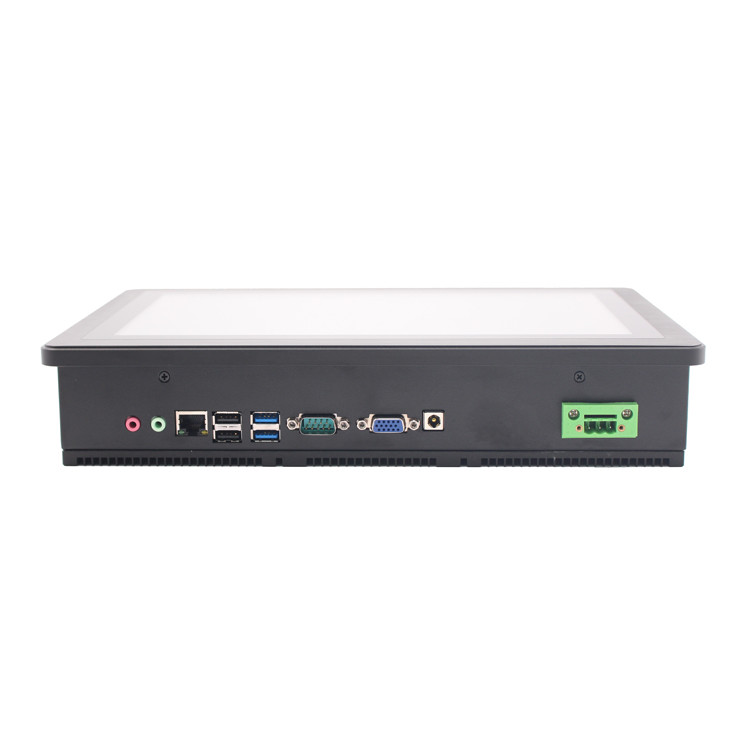

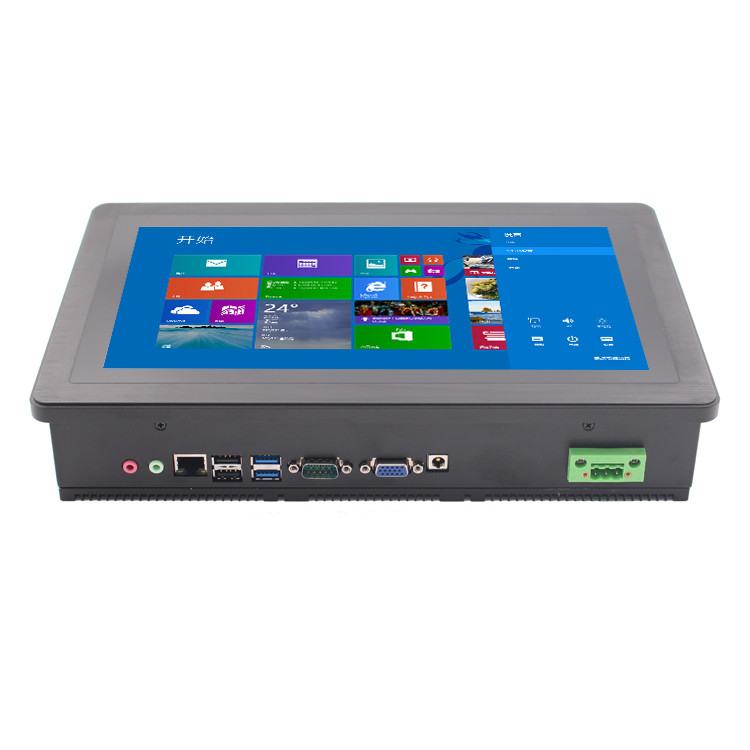

24V Wide Voltage Power Supply 11.6inch Wide Screen Touch Panel PCAP Computer
Features
1. Wide screen 16:9 11.6inch lcd panel with 1920*1080 resolution
2. Sensistive Capacitive touchscreen
3. Intel quad-core J1900/2.0Ghz processor
4. 9-36V wide voltage built-in
5. Fanless design it's good for industrial useage
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 11.6’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1920(H)x 1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 1 x COM | |
| USB | 4 xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| VGA | VGA | ||
| Function | 9-36V wide voltage | ||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" 21'' LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
