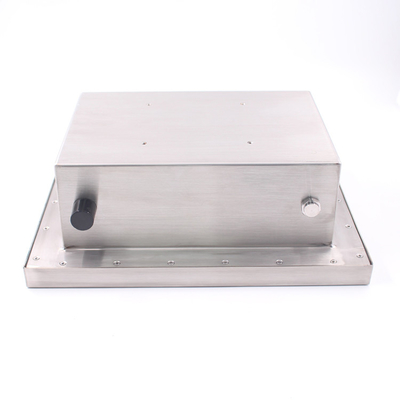

SS304 Outdoor LCD Display WIFI RJ45 10.1 Inch For RFID NFC

SS304 Outdoor LCD Display WIFI RJ45 10.1 Inch For RFID NFC

Product Details:

Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND101PC

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 41.5×35.5×15cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Get Best Price Contact Now

Detail Information

Type: 10inch Outdoor Lcd Display Touchscreen: Capacitive Touch Screen
Processor: Intel Core J1900/2.0Ghz I/O Port: USB, COM, RJ45
IP Rate: Waterproof IP65 Material: Stainless Steel 304
WIFI: Yes, With Waterproof Antenna Customer Logo: Acceptable
High Light:

SS304 Outdoor LCD Display


RFID NFC Outdoor LCD Display


WIFI RJ45 Waterproof Panel PC

Product Description

Full IP65 Connectors SS304 Sealed Enclosure WIFI RJ45 Inside 10.1-inch Waterproof Pc



1. Waterproof IP65 Panel pc With multi-touch capacitive touchscreen


2. Fully sealed waterproof IP65


3. Various water-tight IO Cables included-USB, RS232, RJ45


4. High performance motherboard, 7x24 continuous operation


5. Stainless Steel 304 fully sealled enclosure


6. Good cooling system--big heat sink inside of the machine


Processor System CPU Intel Quad Core J1900/2.0 GHz I/O Port COM 1 x RS232(Up to 4COM)
Memory 2GB (up to 8G) USB 2 x USB2.0(up to 4USB)
Storage 32G SSD(up to 1TB) LAN 1/2 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) Function IP65 waterproof
LCD Panel Characteristics Screen Size 10.1’ LED Panel,4:3 (7-22'' option) Waterproof WIFI antenna(optional)
Touchscreen Type Capacitive touch screen/Resistive  Optional 8-36V wide voltage
Resolution 1280(H)x 800(V) PoE
Brightness 350cd/m2 WIFI / Bluetooth is built-in
Other Information Power supply 110V-220V, 12VDC Input Camera / RFID / NFC / Scanner built-in
Working Temperature 0-50℃ Enclosure Metal/Aluminum/Stainless Steel (optional)
Mounting 75*75/100*100mm VESA Cooling system Fanless or with fan


SS304 Outdoor LCD Display WIFI RJ45 10.1 Inch For RFID NFC 0


Waterproof USB cable

Waterproof COM cable

Waterproof LAN cable

Waterproof 12V Power adapter


Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB


Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
