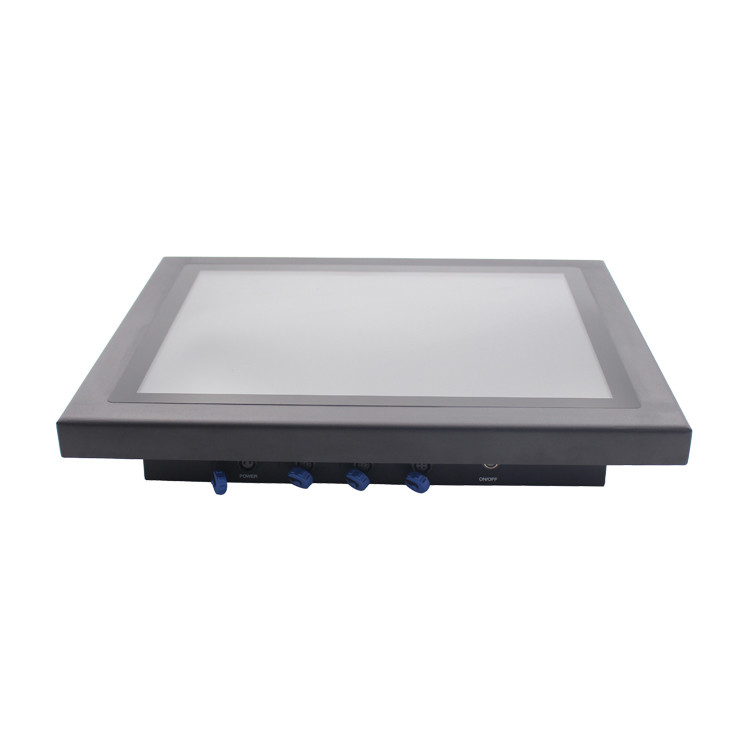

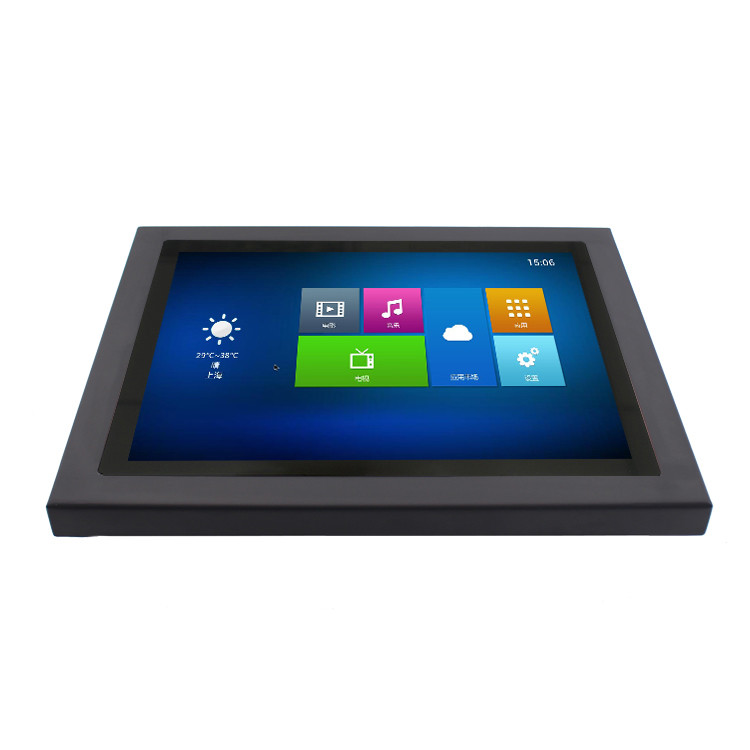

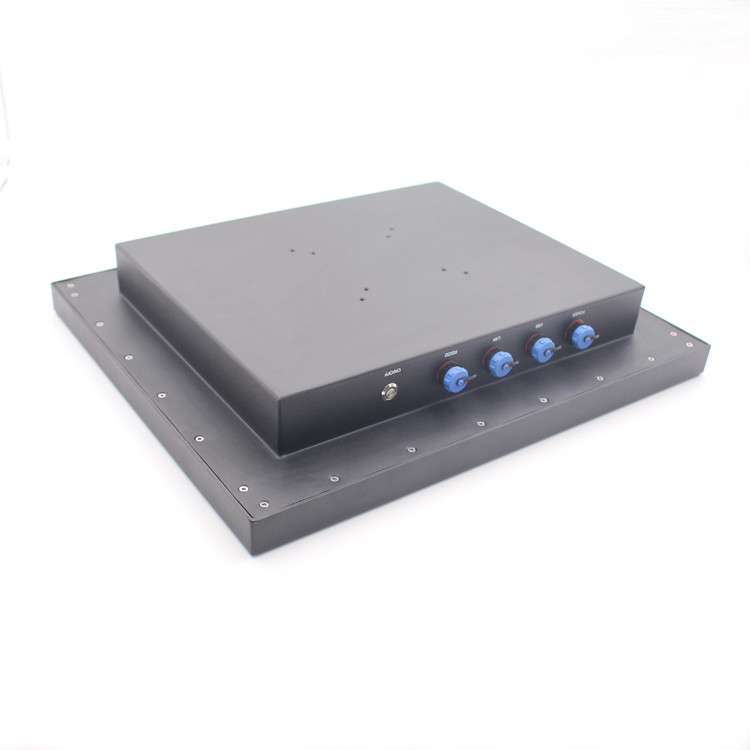

18W Outdoor Lcd Display 350nits 17 Inch PCAP Touch Waterproof WIFI Antenna
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND170APC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 9.5kgs/pc, packing size: 50×14×44cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
|
Detail Information |
|||
| Type: | 17inch Outdoor Lcd Display | Touch Screen: | Capacitive Touchscreen |
|---|---|---|---|
| CPU: | Rk3399 | Resolution: | 1280*1024 |
| Aspect Ratio: | 4:3 | WIFI: | Built-in, With Waterproof Antenna |
| Color: | Black / White / Slivery...etc | Material: | Metal |
| High Light: | 18W Outdoor Lcd Display,PCAP Touch Outdoor Lcd Display,350nits Outdoor Monitor Display |
||
Product Description
350Nits Brightness 17 Inch Outdoor Lcd Display With Waterproof WIFI Antenna
Features
1. 17inch 4:3 aspect ration lcd panel with PCAP touch screen
2. Rockchip RK3399 Processor low power consumption
3. IP Grade: Full IP65 /67/69
4. I/O: 2*USB, 1*RJ45, 1*DC jack
5. WIFI with waterproof Antenna
6. PoE
Configuration
| Processor System | CPU | RK3399 | |
| Memory | 2GB/4GB | ||
| Storage | 16G EMMC(8G/16G/32G optional) | ||
| Operation System | Android 6.0/7.0/8.0 | ||
| LCD Panel Characteristics | Screen Size | 17-inch Lcd Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1280(H)x 1024(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 250nits | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | PoE | it support 802.3af and 802.3at.(Optional) | |
| USB | 2xUSB2.0 | ||
| LAN | RJ45 as PoE power supply | ||
| HDMI | ------ | ||
| Function | Full IP65 | ||
| WIFI | |||
| Optional | AG glass | ||
| UV Protect | |||
| sunlight readable | |||
| waterproof | |||
| Brightness control button | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | metal | |
| Color | Black/Silver/White | ||
| Mounting | Wall mount/ Panel mount | ||
Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
