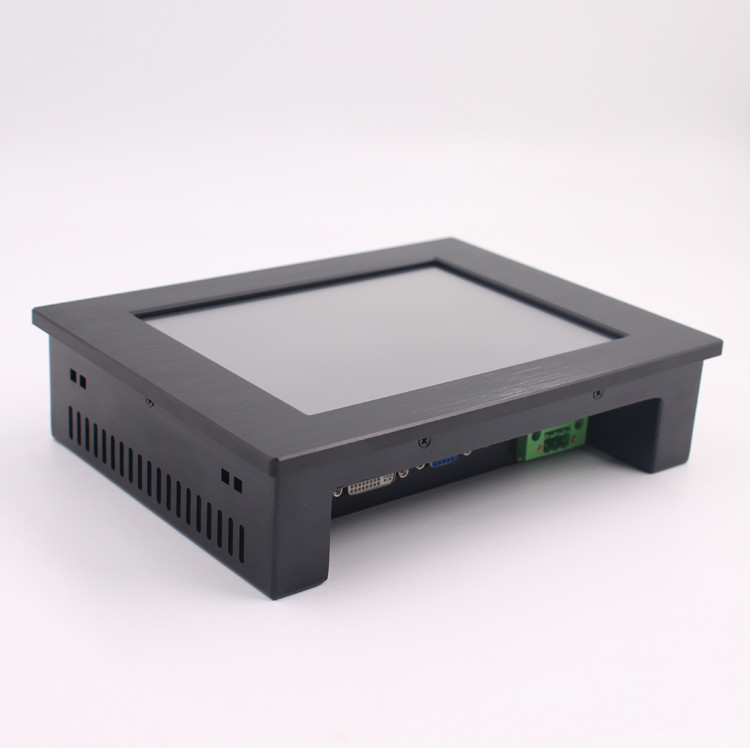

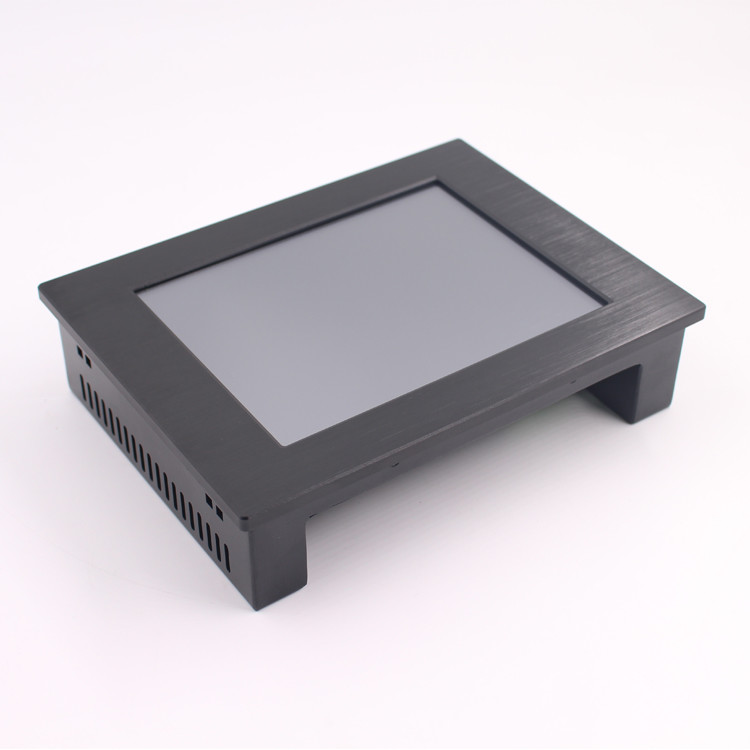

Penmount Controller Resistive Touch Front IP65 Waterproof Lcd Monitor For Vending Machine Kiosk
Features
1. Resistive touch screen with Penmount controller

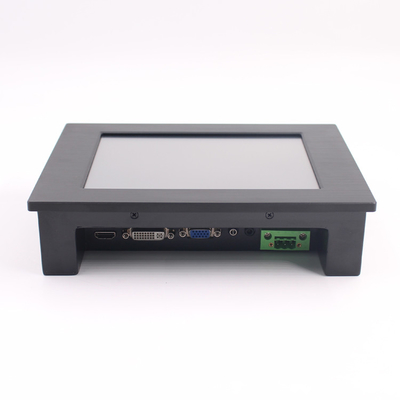

2. I/O: HDMI, VGA, DVI, 1*USB for touch use
3. Phoenix terminal 9-36V wide voltage
4. Front IP65 waterproof
5. Embedded mount type
6. keypad on the back rear
Full Sepcification
| LCD Panel Characteristics | Screen Size | 8’’ LED Panel | ||
| Touchscreen Type | Resistive touch screen with Penmount controller | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 500:1 | |||
| View Angle | 85x85(H),85x85(V) | |||
| Response Time | 15 msec | |||
|
|
USB | Yes | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 8-36V wide voltage | |||
| Front IP65 | ||||
| Mounting type | VESA hole 75*75/100*100mm / Embedded | |||
| Optional | Body sensor | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
8" waterproof lcd monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
